Grinding Discs

masonry-grinding-bonded-abrasive-x-lock-GWX27M500-bosch

masonry-grinding-bonded-abrasive-x-lock-GWX27M500-bosch

grinder-X-Lock-metal-grinding-bosch

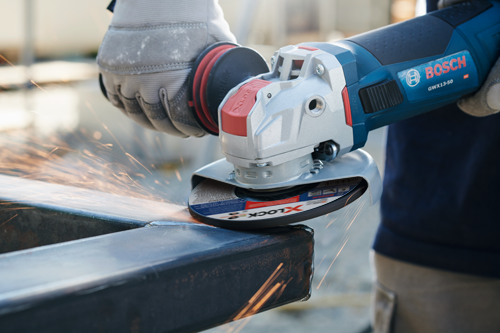

Type 27 X-LOCK Small Angle Grinder Wheels

Click it on with X-LOCK – the fastest accessory-changing system on the market

Type 27 X-LOCK Small Angle Grinder Wheels deliver exceptional speed and durability in tough environments
Bonded abrasive wheel with the X-LOCK mount design – offers a faster, fixed mount and high-quality Silicon Carbide grit

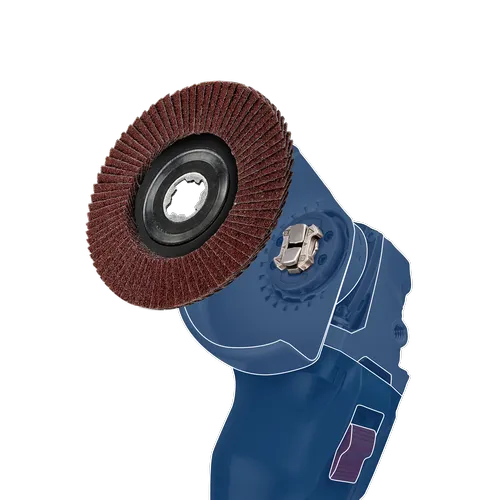

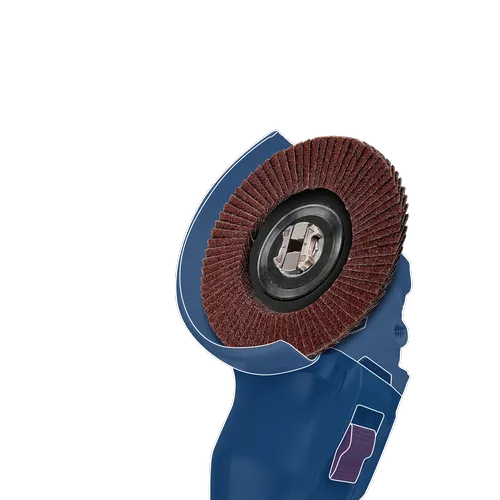

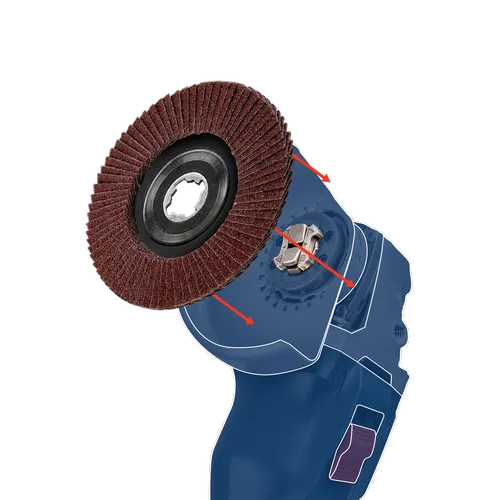

X-LOCK wheel change – features snap-on mounting and a wheel-release lever on grinder for change-out that's up to five times faster
Tool-free disc swap – the wheel mounts properly without the need for a spanner wrench or flange nuts for no losable parts
Backward compatible – Bosch X-LOCK abrasive wheels are backward compatible with standard 7/8 In. arbor mounts

View more View less

Materials

Diameter in 3 options

Grit 3 options

Choose a pack size 1

Available product options (7)

Your Selected Variant

Your Selected Variant

Type 27 X-LOCK Small Angle Grinder Wheels

from

Click it on with X-LOCK – the fastest accessory-changing system on the market

Fits tools of most brands

Fits small X-LOCK angle grinders and standard locking nut small angle grinders with 7/8" arbor mounts.

Product Options

Available product options: 7

	Model number	Specification	Diameter in	Bore diameter in	Thickness in	Pack quantity
	GWX27AL450	Type 27	4.5	X-LOCK, 0.875	.25"	1
	GWX27AL500	Type 27	5	X-LOCK, 0.875	.25"	1
	GWX27AL600	Type 27	6	X-LOCK, 0.875	.25"	1
	GWX27LM450	Type 27	4.5	X-LOCK, 0.875	.25"	1
	GWX27LM500	Type 27	5	X-LOCK, 0.875	.25"	1
	GWX27LM600	Type 27	6	X-LOCK, 0.875	.25"	1
	GWX27M450	Type 27	4.5	X-LOCK, 0.875	.25"	1

out of products

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

Model number GWX27AL450
Pack quantity	1

Details
Specification	Type 27
Diameter in	4.5
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	24 grit, aluminum oxide

5 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

5 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

5 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

Model number GWX27AL500
Pack quantity	1

Details
Specification	Type 27
Diameter in	5
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	24 grit, aluminum oxide

6 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

6 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

6 In. x 1/4 In. X-LOCK Arbor Type 27 24 Grit Metal Grinding Abrasive Wheel

Model number GWX27AL600
Pack quantity	1

Details
Specification	Type 27
Diameter in	6
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	24 grit, aluminum oxide

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

Model number GWX27LM450
Pack quantity	1

Details
Specification	Type 27
Diameter in	4.5
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	30 grit, aluminum oxide

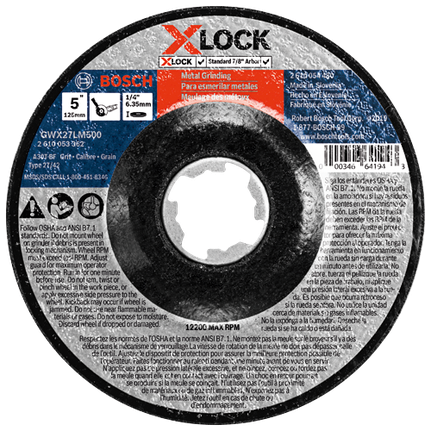

5 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

5 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

5 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

Model number GWX27LM500
Pack quantity	1

Details
Specification	Type 27
Diameter in	5
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	30 grit, aluminum oxide

6 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

6 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

6 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Metal Grinding Abrasive Wheel

Model number GWX27LM600
Pack quantity	1

Details
Specification	Type 27
Diameter in	6
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	30 grit, aluminum oxide

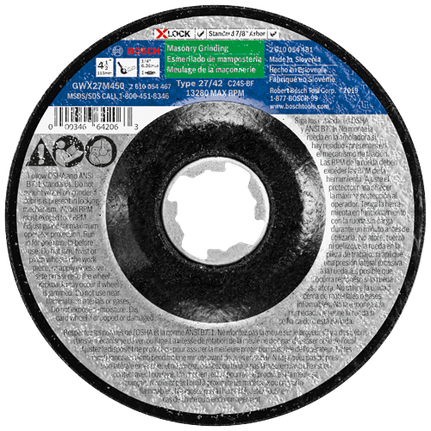

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Masonry Grinding Abrasive Wheel

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Masonry Grinding Abrasive Wheel

4-1/2 In. x 1/4 In. X-LOCK Arbor Type 27 30 Grit Masonry Grinding Abrasive Wheel

Model number GWX27M450
Pack quantity	1

Details
Specification	Type 27
Diameter in	4.5
Bore diameter in	X-LOCK, 0.875
Thickness in	.25"
Grit	24 grit, silicon carbide
