Masonry & Concrete Drill Bits
1/4

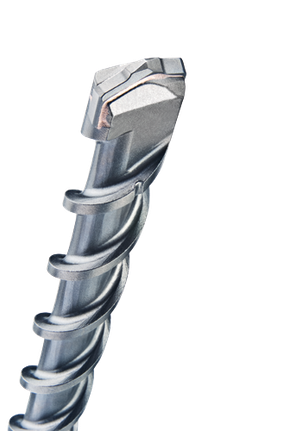

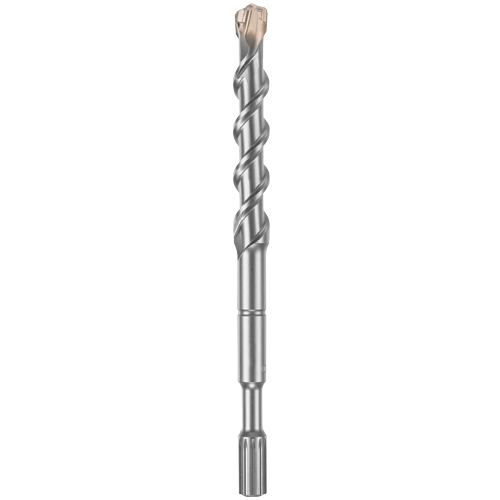

Spline SpeedX™ Rotary Hammer Bits
For rotary hammer drills
- Inclined side cutters for aggressive drilling
- Tungsten-carbide tip provides superior wear resistance in tough applications

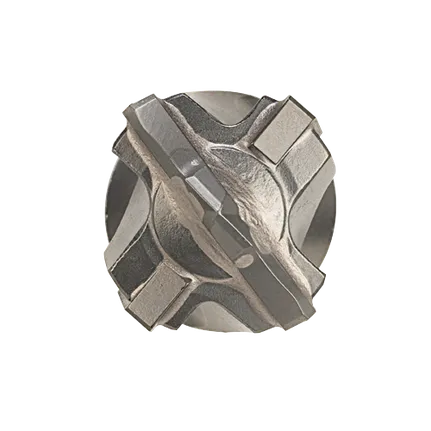

- Patented four-cutter tip design that provides optimal performance
- Large flute volume for fast drilling, dust transport and less clogging
- Active-centering tip for optimum guidance when drilling in concrete and reinforced concrete
Select options
Diameter (D) Inch
Select one option from the listed items below
Working length (L1) Inch
Select one option from the listed items below
Total length (L2) Inch
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Diameter (D) Inch 11 options
Working length (L1) Inch 4 options
Total length (L2) Inch 4 options
Choose a pack size 1
Spline SpeedX™ Rotary Hammer Bits
For aggressive drilling
Inclined side cutters for aggressive drilling
- Speed-X™ delivers high performance in precision anchoring and drilling applications
- Optimal four-cutter tip perfomance
View more
Product Options
Available product options: 28
|
Model number
|
Diameter (D) Inch
|
Working length (L1) Inch
|
Total length (L2) Inch
|
Pack quantity
|
|
|---|---|---|---|---|---|---|
| HC4021 | 5/8 | 8 | 13 | 1 | ||
| HC4022 | 5/8 | 16 | 21 | 1 | ||
| HC4023 | 5/8 | 24 | 29 | 1 | ||
| HC4031 | 3/4 | 8 | 13 | 1 | ||
| HC4032 | 3/4 | 16 | 21 | 1 | ||
| HC4033 | 3/4 | 24 | 29 | 1 | ||
| HC4034 | 3/4 | 31 | 36 | 1 | ||
| HC4040 | 7/8 | 8 | 13 | 1 | ||
| HC4041 | 7/8 | 16 | 21 | 1 | ||
| HC4042 | 7/8 | 24 | 29 | 1 | ||
| HC4050 | 1 | 8 | 13 | 1 | ||
| HC4051 | 1 | 16 | 21 | 1 | ||
| HC4053 | 1 | 31 | 36 | 1 | ||
| HC4060 | 1 1/8 | 8 | 13 | 1 | ||
| HC4061 | 1 1/8 | 16 | 21 | 1 | ||
| HC4062 | 1 1/8 | 24 | 29 | 1 | ||
| HC4063 | 1 1/8 | 31 | 36 | 1 | ||
| HC4070 | 1 1/4 | 8 | 13 | 1 | ||
| HC4071 | 1 1/4 | 16 | 21 | 1 | ||
| HC4073 | 1 1/4 | 31 | 36 | 1 | ||
| HC4081 | 1 3/8 | 16 | 21 | 1 | ||
| HC4091 | 1 1/2 | 16 | 21 | 1 | ||
| HC4093 | 1 1/2 | 31 | 36 | 1 | ||
| HC4501 | 3/8 | 8 | 13 | 1 | ||
| HC4511 | 1/2 | 8 | 13 | 1 | ||
| HC4512 | 1/2 | 16 | 21 | 1 | ||
| HC4513 | 1/2 | 24 | 29 | 1 | ||
| HC4516 | 9/16 | 16 | 21 | 1 |
out of products
5/8 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4021
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
8
Total length (L2) Inch
13
5/8 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4022
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
16
Total length (L2) Inch
21

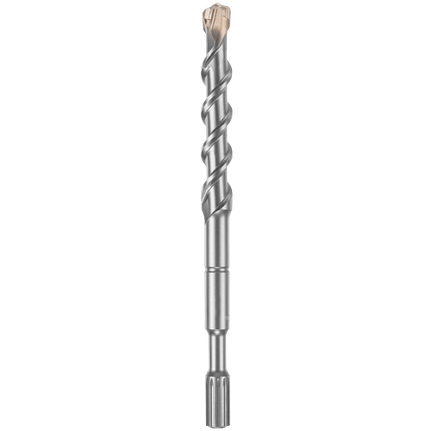

5/8 In. x 29 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4023
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
24
Total length (L2) Inch
29

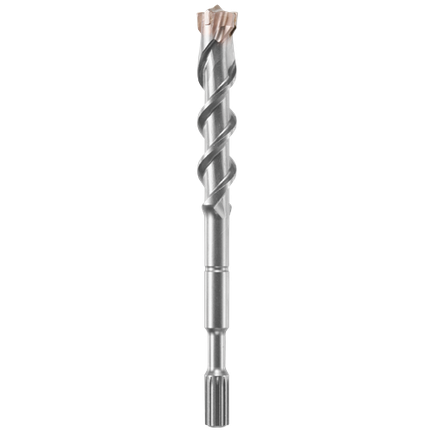

3/4 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4031
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
8
Total length (L2) Inch
13
3/4 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4032
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
16
Total length (L2) Inch
21
3/4 In. x 29 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4033
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
24
Total length (L2) Inch
29

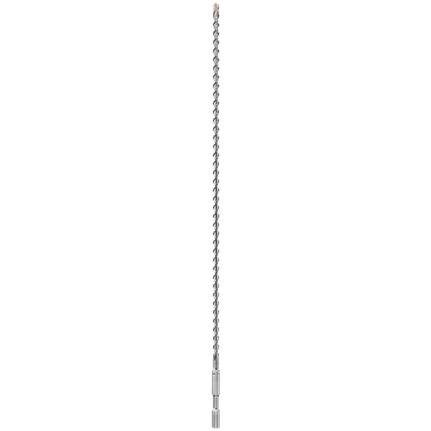

3/4 In. x 36 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4034
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
31
Total length (L2) Inch
36
7/8 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4040
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
8
Total length (L2) Inch
13
7/8 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4041
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
16
Total length (L2) Inch
21
7/8 In. x 29 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4042
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
24
Total length (L2) Inch
29
1 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4050
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
8
Total length (L2) Inch
13
1 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4051
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
16
Total length (L2) Inch
21
1 In. x 36 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4053
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
31
Total length (L2) Inch
36
1-1/8 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4060
Pack quantity
1
Details
Diameter (D) Inch
1 1/8
Working length (L1) Inch
8
Total length (L2) Inch
13
1-1/8 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4061
Pack quantity
1
Details
Diameter (D) Inch
1 1/8
Working length (L1) Inch
16
Total length (L2) Inch
21
1-1/8 In. x 29 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4062
Pack quantity
1
Details
Diameter (D) Inch
1 1/8
Working length (L1) Inch
24
Total length (L2) Inch
29

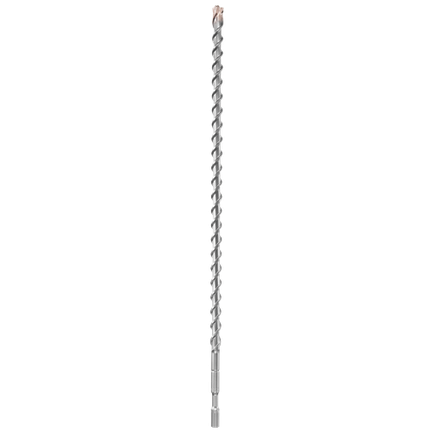

1-1/8 In. x 36 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4063
Pack quantity
1
Details
Diameter (D) Inch
1 1/8
Working length (L1) Inch
31
Total length (L2) Inch
36
1-1/4 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4070
Pack quantity
1
Details
Diameter (D) Inch
1 1/4
Working length (L1) Inch
8
Total length (L2) Inch
13
1-1/4 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4071
Pack quantity
1
Details
Diameter (D) Inch
1 1/4
Working length (L1) Inch
16
Total length (L2) Inch
21
1-1/4 In. x 36 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4073
Pack quantity
1
Details
Diameter (D) Inch
1 1/4
Working length (L1) Inch
31
Total length (L2) Inch
36
1-3/8 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4081
Pack quantity
1
Details
Diameter (D) Inch
1 3/8
Working length (L1) Inch
16
Total length (L2) Inch
21
1-1/2 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4091
Pack quantity
1
Details
Diameter (D) Inch
1 1/2
Working length (L1) Inch
16
Total length (L2) Inch
21

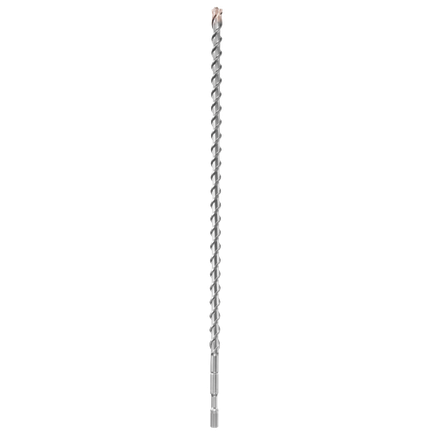

1-1/2 In. x 36 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4093
Pack quantity
1
Details
Diameter (D) Inch
1 1/2
Working length (L1) Inch
31
Total length (L2) Inch
36

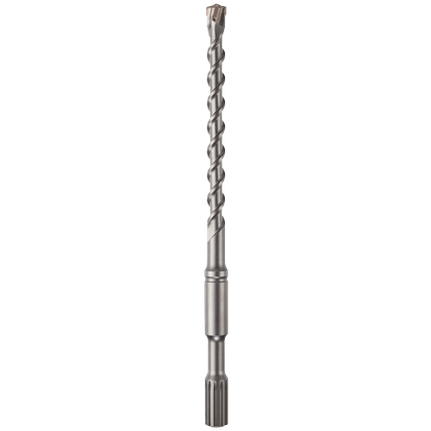

3/8 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4501
Pack quantity
1
Details
Diameter (D) Inch
3/8
Working length (L1) Inch
8
Total length (L2) Inch
13

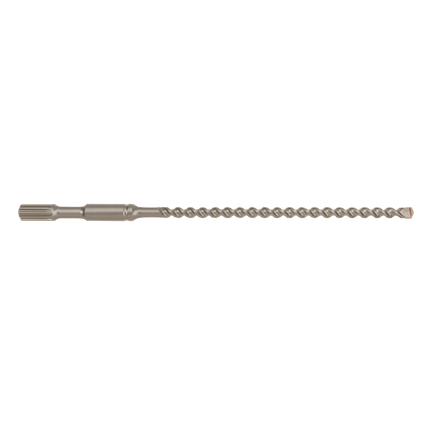

1/2 In. x 13 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4511
Pack quantity
1
Details
Diameter (D) Inch
1/2
Working length (L1) Inch
8
Total length (L2) Inch
13

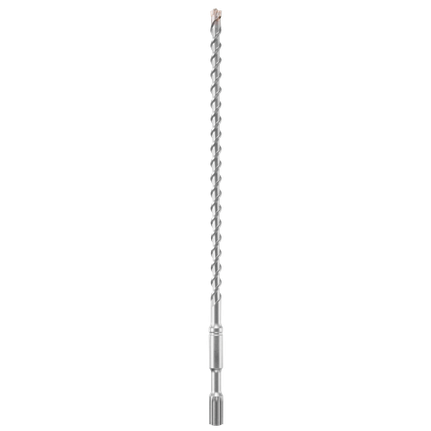

1/2 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4512
Pack quantity
1
Details
Diameter (D) Inch
1/2
Working length (L1) Inch
16
Total length (L2) Inch
21

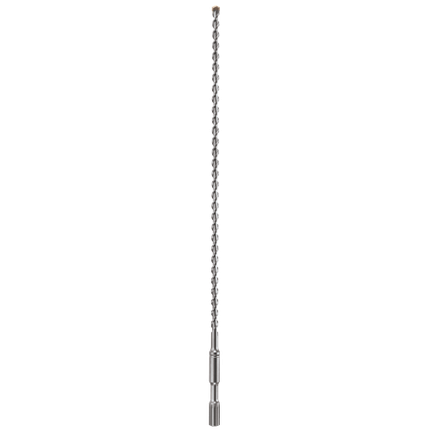

1/2 In. x 29 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4513
Pack quantity
1
Details
Diameter (D) Inch
1/2
Working length (L1) Inch
24
Total length (L2) Inch
29

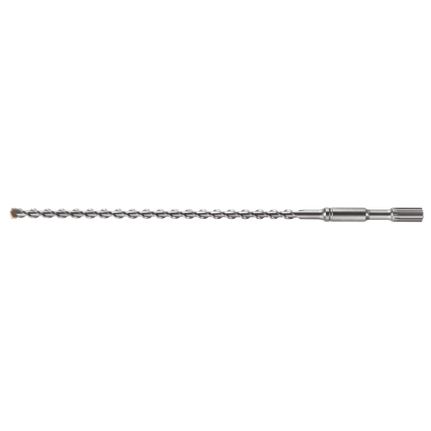

9/16 In. x 21 In. Spline SpeedX™ Rotary Hammer Bit
Model number HC4516
Pack quantity
1
Details
Diameter (D) Inch
9/16
Working length (L1) Inch
16
Total length (L2) Inch
21
