SDS-max® Speed Clean™ Dust Extraction Drill Bits
For rotary hammer drills
Dustless Drilling
- SDS max-9 Speed Clean Drill Bit allows for dustless drilling
- Hollow drill bit – connects to a vacuum system to deliver up to 50% time savings versus the conventional drill-blow-brush-blow anchor-installation method
- Meets OSHA standards for adhesive anchoring – work in conjunction the PRO+GUARD dust system to help users move toward compliance with the OSHA Silica Dust Table 1 regulation
- Faster drilling – provides up to 25% greater drilling speed thanks to less dust and reduced friction
- Great durability – one-piece design offers comparable life to Bosch SpeedX® bits
Materials




Select options
Diameter (D) Inch 10 options
Working length (L1) Inch 7 options
Total length (L2) Inch 8 options
Choose a pack size 1
Fits tools of most brands

Fits all SDS max rotary hammer drills.
DUSTLESS DRILLING IN MASONRY, CONCRETE AND REINFORCED CONCRETE

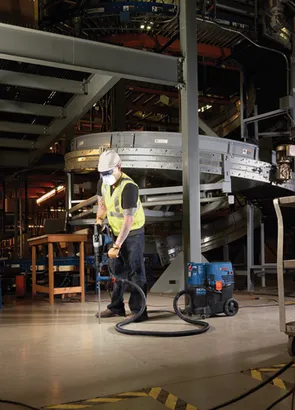

The SDS-max Speed Clean Dust Extraction Drill Bit allows for dustless drilling. While working, the built-in vacuum attachment pulls dust through extraction holes in the drill bit, allowing optimum material removal without additional steps. This technology results in a clean, dust-free working environment. The bit is intended for use on masonry, concrete and reinforced concrete.
Product Options
Available product options: 17
![]() |
Model number
![]() |
Diameter (D) Inch
![]() |
Working length (L1) Inch
![]() |
Total length (L2) Inch
![]() |
Pack quantity
![]() |
![]() |
---|---|---|---|---|---|---|
DXS5010 | 1/2 | 8 | 17 | 1 | ||
DXS5020 | 5/8 | 8 | 17 | 1 | ||
DXS5021 | 5/8 | 16 | 25 | 1 | ||
DXS5030 | 3/4 | 8 | 8 | 1 | ||
DXS5031 | 3/4 | 16 | 24 | 1 | ||
DXS5034 | 3/4 | 12 1/2 | 21 | 1 | ||
DXS5040 | 7/8 | 8 | 17 | 1 | ||
DXS5044 | 7/8 | 15 | 25 | 1 | ||
DXS5048 | 13/16 | 15 | 25 | 1 | ||
DXS5050 | 1 | 8 | 17 | 1 | ||
DXS5054 | 1 | 17 1/2 | 27 | 1 | ||
DXS5060 | 1 1/8 | 8 | 17 | 1 | ||
DXS5062 | 1 1/8 | 20 | 29 | 1 | ||
DXS5081 | 1 3/8 | 16 | 24 | 1 | ||
DXS5082 | 1 3/8 | 25 | 35 | 1 | ||
HCD5071 | 1 1/4 | 16 | 21 | 1 | ||
HCD5091 | 1 1/2 | 16 | 24 | 1 |
