Grinder Attachments
The most important data |
|
---|---|

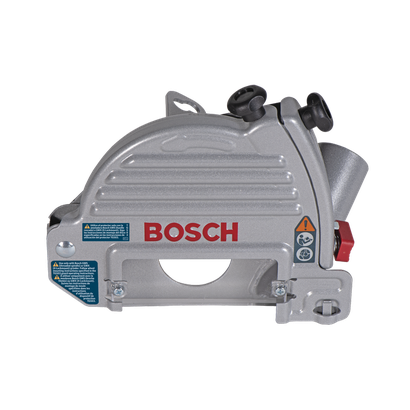

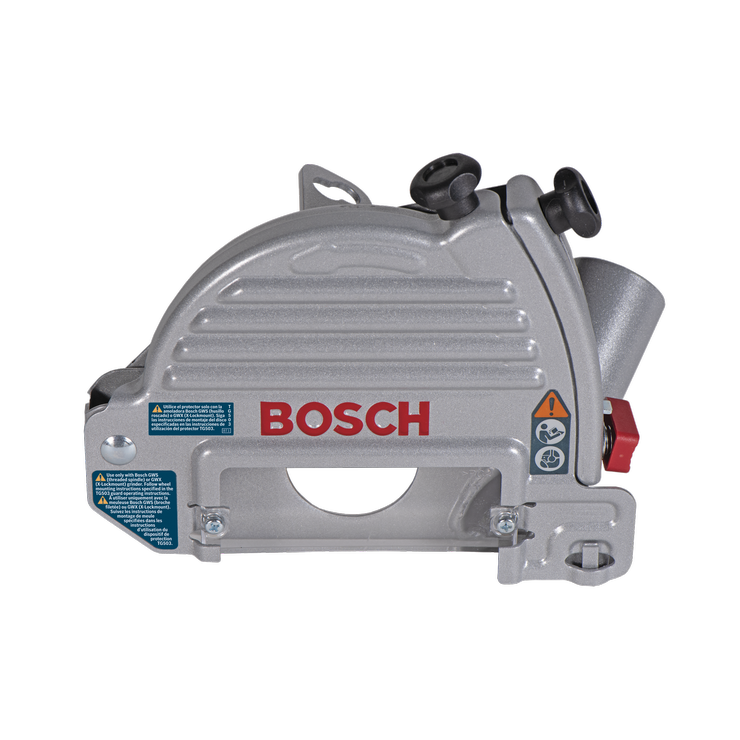

Description | 5 In. Tuckpointing Dust Guard |
Material | Metal |
Size in | 5 In. |
Used on Model No. | Bosch Tuckpoint Grinder Guard - TG503 |
Weight | 2.1 lb |
Wheel Diameter in | 5" |
Works With | 1800 Series 4-1/2 In., 5 In. and 6 In. Grinders, 1800, 1801, 1803EVS, 1806E, 1810PS, 1810PSD, 1811PS, 1811PSD, 1812PSD, 1821, 1821D, 1824E, 1824ED, AG-Series 4-1/2 In., 5 In. and 6 In. Grinders, AG40-85, AG40-85P, AG40-85PD, AG40-11P, AG40-11PD, AG50-10, AG50-11VS, AG50-11VSPD, AG60-125, AG60-125PD, GWS10 Series 4-1/2 In. Grinders, GWS10-45, 45P and 45PD grinders GWS10-450, 450P and 450PD grinders (NOT COMPATIBLE with GWS10-45E, GWS10-45DE, GWS10-45PE models), GWS13 / GWX13 Series 5 In. and 6 In. Grinders, GWS13-50 - GWS13-60 slide switch and paddle switch grinders GWX13-50 - GWX13-60 slide switch and paddle switch grinders, GWS18V-8 Series 4-1/2 In. Grinders; GWS18V-10 Series 4-1/2 In. - 5 In. Grinders, GWS18V-45C, GWS18V-45PC, GWS18V-45PSC, GWS18V-8, GWS18V-10, GWS18V-10P (NOT COMPATIBLE with GWS18V-45 and GWS18V-50 models), GWX18V-8 Series 4-1/2 In. Grinders GWX18V-10 Series 4-1/2 In. -5 In. Grinders, GWX18V-8, GWX18V-10, GWX18V-10P, GWS18V-13 Series 5 In. - 6 In. Grinders GWX18V-13 Series 5 In. - 6 In. Grinders, GWS18V-13C, GWS18V-13P GWX18V-13C, GWX18V-13P, Other 4-1/2 In. and 5 In. Grinders , NOT COMPATIBLE with 1375A, 1380Slim, GWS8-45 and GWS9-45, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses, VAC005 and VAC006, and most other 35 mm hoses, Adapter for 1-1/4 In. and 1-1/2 In. Hoses, VAC002 or VAC024, Adapter for 2-1/2 In. Hoses, VAC020 |
Includes | (1) TG503 5 In. Tuckpointing Dust Guard |

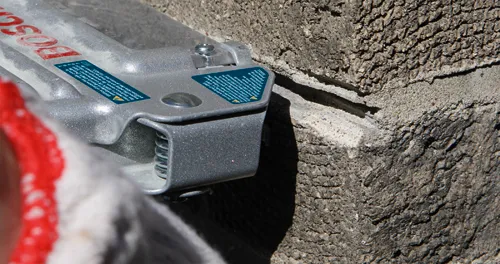

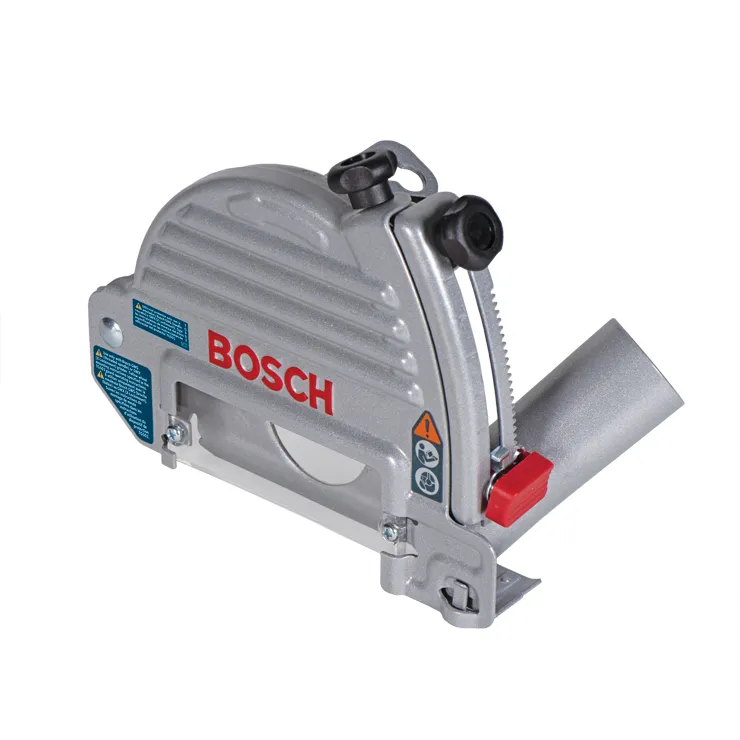

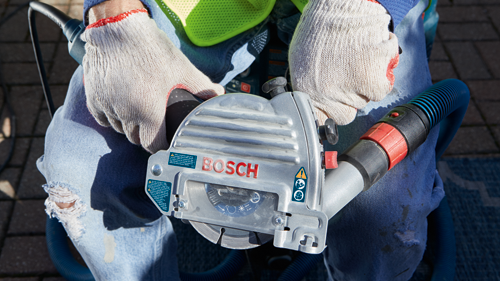

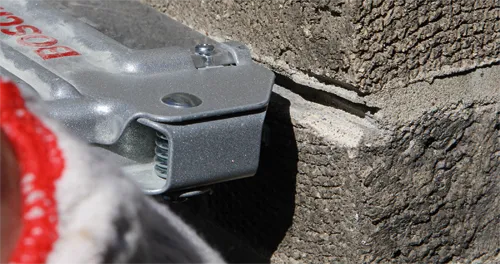

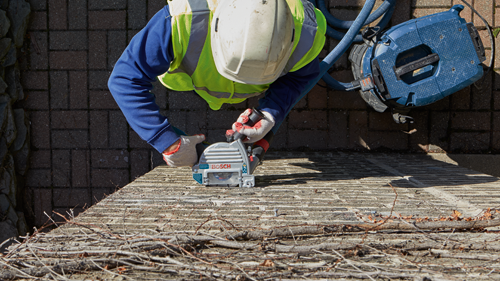

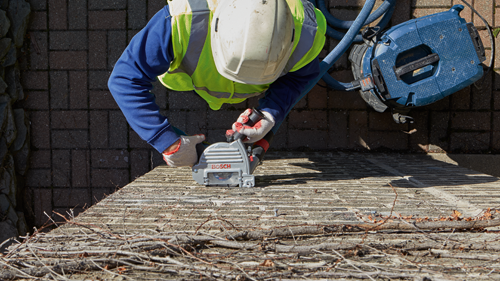

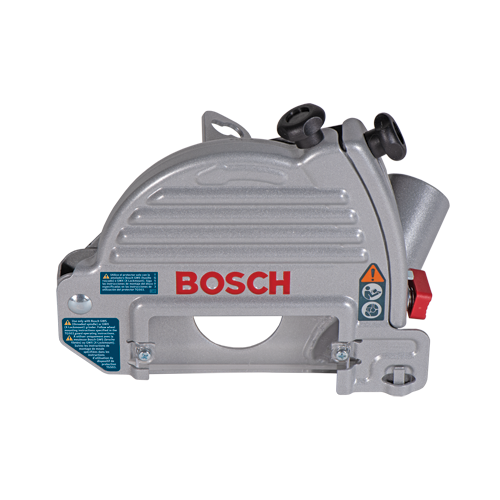

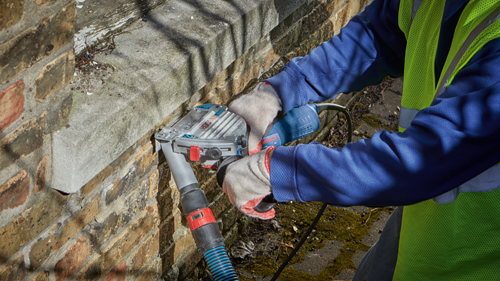

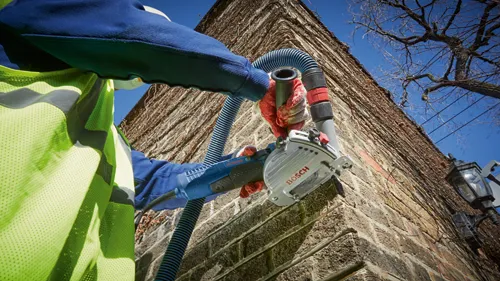

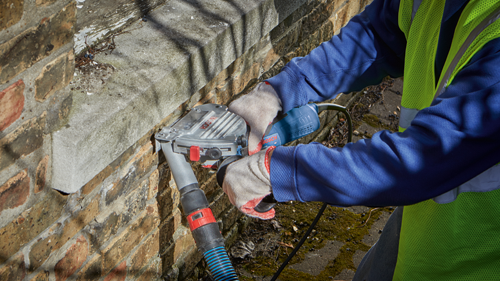

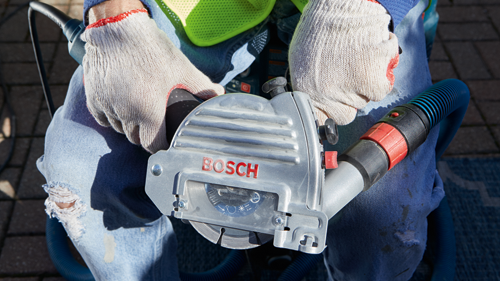

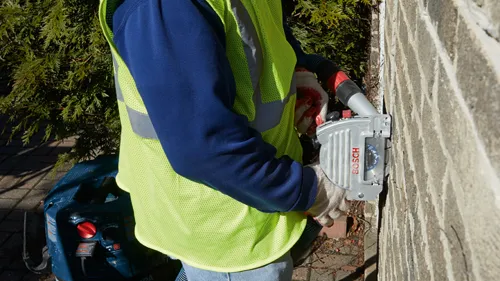

The Bosch TG503 5 In. Tuckpointing Dust Guard features tool-free installation, which makes it quick and easy to install and remove. The spring-loaded guard collects dust throughout the duration of the cut, from the initial plunge until the blade is removed from the material. The variable-depth adjustment allows the guard to be set to a desired cutting depth for maximum productivity in extended cutting applications. The guard features a large viewing window, which makes it easy to see the line of cut when in operation. It has a 1-3/8 In. dust port, which is designed to accommodate Bosch vacuum hose nozzles. Adapters (sold separately) are available to fit other vacuum hose nozzles. The TG503 tuckpointing guard fits a wide array of 4-1/2 In., 5 In. and 6 In. Bosch angle grinders, and it can accommodate tuckpoint diamond blade designed for both spindle grinders (7/8 In. arbor) and X-LOCK grinders. The guard works with Bosch PRO+GUARD™ dust solutions, an end-to-end dust collection system that helps users move toward OSHA silica dust compliance.
