SDS-plus® Hammers
RH432VCQ Professional
SDS-plus® Hammers

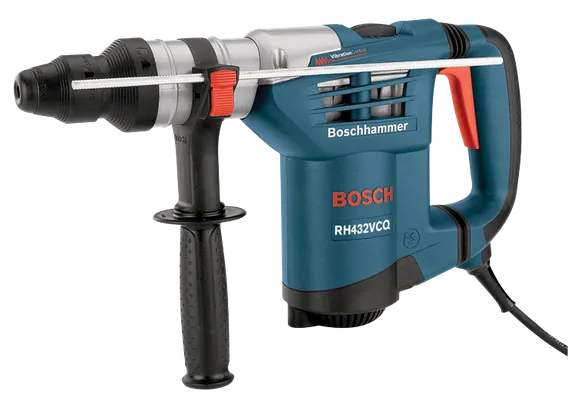

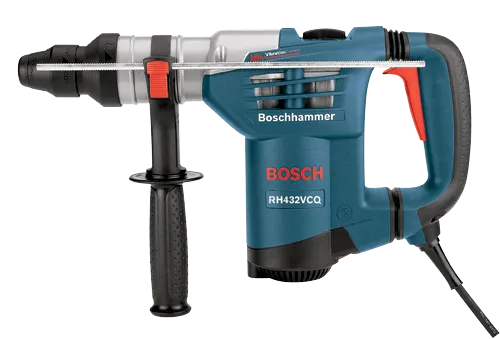

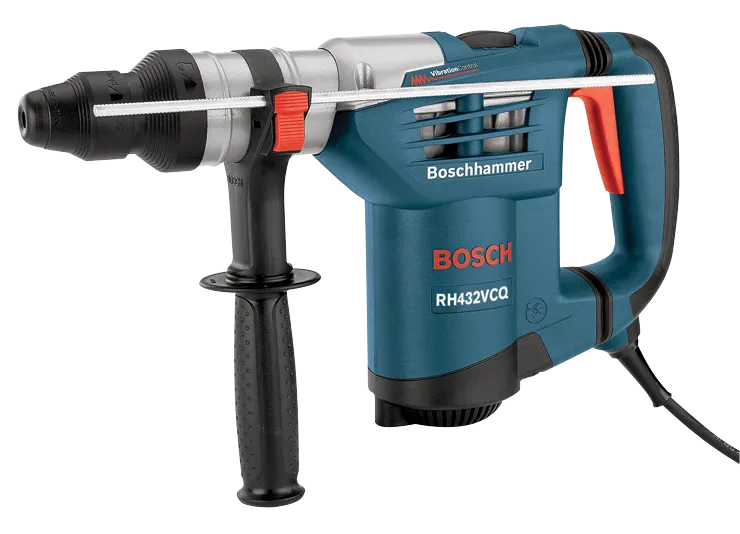

SDS-plus® 1-1/4 In. Rotary Hammer with Quick-Change Chuck System
- Powerful 8.5-amp motor – drives 3.1 Ft.-Lbs. of impact energy for professional results
- Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
- SDS-plus® shank system – for use with bits up to 1-1/4 In. diameter

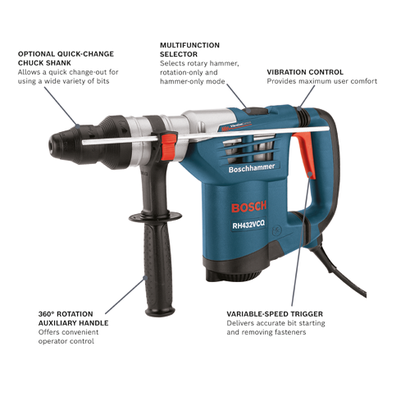

- Optional three-jaw chuck shank – allows a quick change-out for using a wide variety of bits

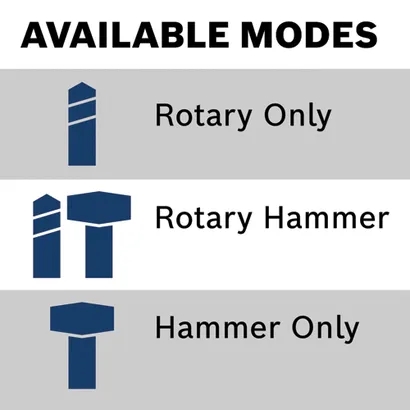

- Multifunction selector – rotary hammer, rotation-only and hammer-only mode
- Variable-speed trigger with reversing – for accurate bit starting as well as removing fasteners or bound bits
- Integral clutch – disengages torque transmission if the bit gets into a bind situation
- Bosch impact system – maximizes impact force and minimizes vibration
- 360° rotation auxiliary handle – for convenient operator control
- Light weight – hammer weighs only 10.3 Lbs.
RH432VCQ Professional
Technical data
The most important data
Amperage
8.5
Chuck Design
Keyless
Drive System
SDS-plus
Height in
10.5 "
Impact Energy/EPTA (ft. lbs.)
3.1 Ft./Lbs. EPTA
Length in
15.75 "
Material
Metal, Plastic
Max Bit Diameter
1-1/4"
Max. Hole Diameter in Concrete
1-1/4"
No Load BPM
0-3,600
No Load RPM
0-760
Rating
120V
Reverse
Yes
Variable Speed
Yes
Voltage
120V
Weight
10.3 lb
Weight (lbs.)
10.3
Width in
4 "
Works With
Dust Extraction/Collection Hood, HDC200 only, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW
Includes
(1) RH432VCQ SDS-plus® 1-1/4 In. Rotary Hammer
(1) Auxiliary Handle
(1) Depth Gauge
(1) SDS-plus® Quick Change Chuck
(1) Carrying Case
(1) Auxiliary Handle
(1) Depth Gauge
(1) SDS-plus® Quick Change Chuck
(1) Carrying Case
RH432VCQ Professional: Further information
Product Highlights

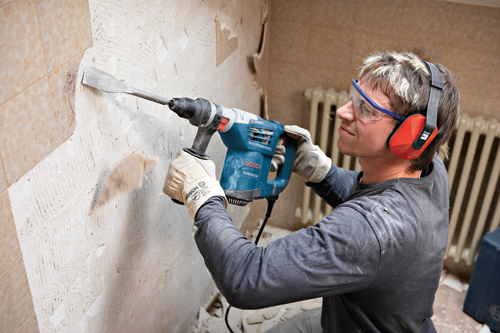

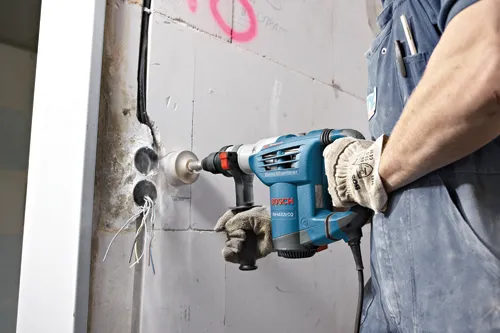

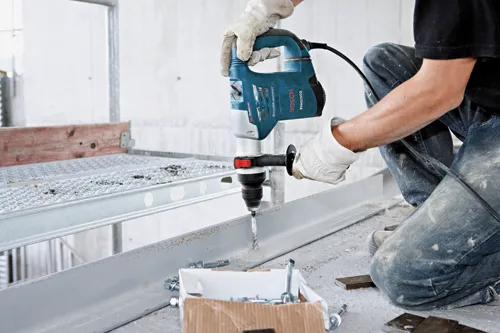

The Bosch RH432VCQ SDS-plus® 1-1/4 In. Rotary Hammer is a 8.5-amp tool that delivers 3.1 Ft.-Lbs. of impact energy, but it weighs only 10.3 Lbs. for a top performance-to-weight ratio. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. Concrete contractors will appreciate the production in drilling holes in concrete and chiseling masonry. The quick change chuck allows the fast and simple exchange of an SDS-plus® chuck. It has Vibration Control™ in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch for bind-up situations.
