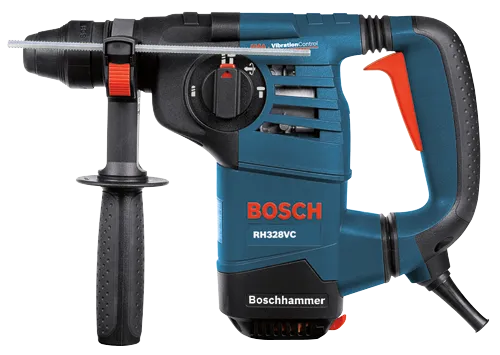

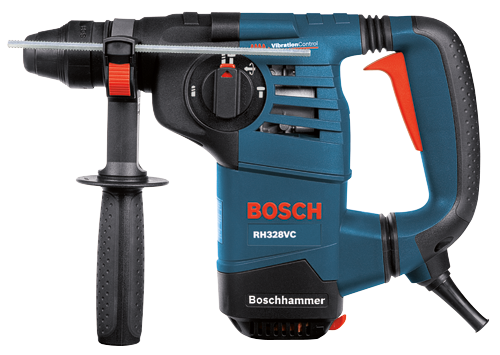

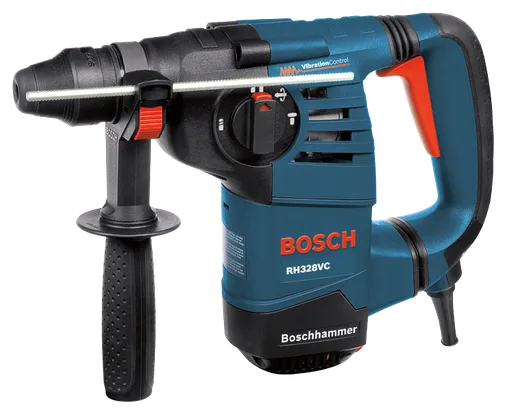

RH328VC Professional
SDS-plus® Hammers

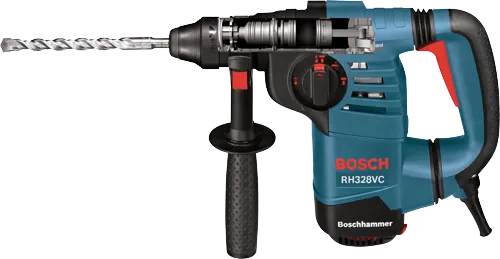

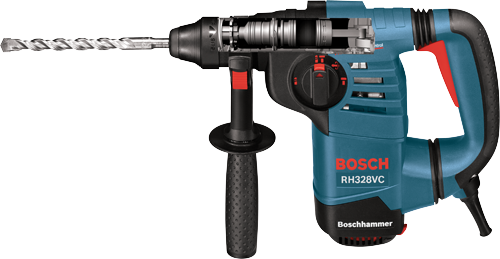

SDS-plus® 1-1/8 In. Rotary Hammer

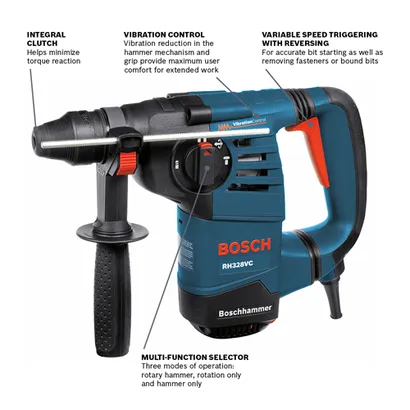

- Powerful 8.0-amp motor – drives 2.4 Ft.-Lbs. of impact energy for professional results
- Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
- SDS-plus® shank system — for use with bits up to 1-1/8 In. diameter

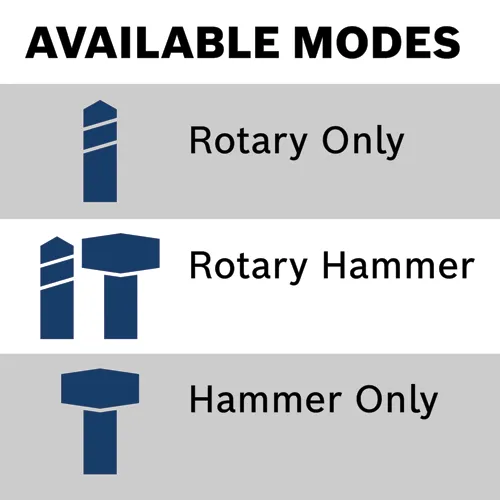

- Multifunction selector — rotary hammer, rotation-only and hammer-only mode
- Vario-Lock system with reversing — for accurate bit starting as well as removing fasteners or bound bits
- Integral clutch — disengages torque transmission if the bit gets into a bind situation
- Variable-speed trigger – for better operator control and accurate bit starting
- Bosch impact system – maximizes impact force and minimizes vibration
- 360° rotation auxiliary handle – for convenient operator control
- First-rate power-to-size ratio – hammer weighs only 7.7 Lbs.
Technical data
The most important data |
|
|---|---|
| Amperage | 8 |
| Chuck Design | Keyless |
| Chuck Size | 1-1/8 in |
| Drive System | SDS-plus |
| Height in | 9 " |
| Impact Energy/EPTA (ft. lbs.) | 2.4 Ft.-Lbs. EPTA |
| Length in | 12.5 " |
| Material | Metal, Plastic |
| Max Bit Diameter | 1-1/8" |
| Max. Hole Dia. - Core Bit | 3-1/8" |
| Max. Hole Diameter in Concrete | 1-1/8" |
| No Load BPM | 0-4,000 |
| No Load RPM | 0-900 |
| Rating | 120V |
| Reverse | No |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 7.7 lb |
| Weight (lbs.) | 7.7 |
| Width in | 3 " |
| Works With | Dust Extraction/Collection Hoods, HDC100, HDC200, Right Angle Attachment, RHA-50, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW |
| Includes |

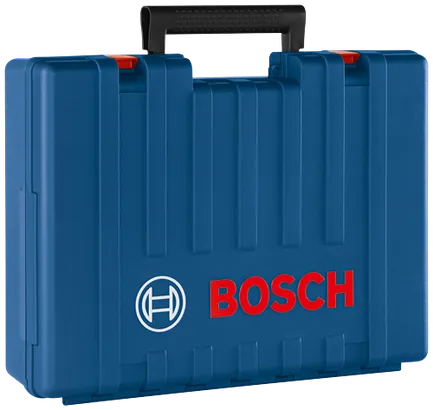

(1) RH328VC SDS-plus® 1-1/8 In. Rotary Hammer (1) Auxiliary Handle (1) Depth Gauge (1) Carrying Case |
RH328VC Professional: Further information
Product Highlights

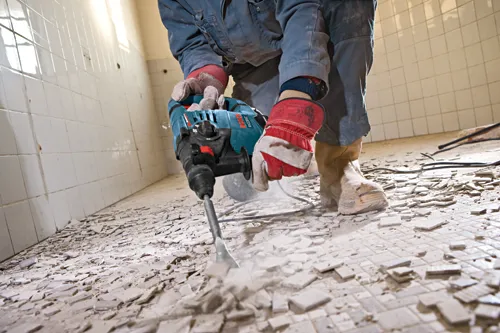

The Bosch RH328VC SDS-plus® 1-1/8 In. Rotary Hammer can deliver 2.4 Ft.-Lbs. of impact energy, but this tool weighs only 7.7 Lbs. and is a compact length of 12.5 In., for an outstanding power-to-size ratio. The 8.0-amp motor generates up to 4,000 blows per minute, making it an ideal choice for construction or demolition. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. It has Vibration Control in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch that discontinues power transmission for bind situations, and it has Vario-Lock to set the chisel into one of 12 positions for better leverage.
