Router Attachments, Palm Routers
Bosch Router Accessory (EN)(2).jpg
Bosch Router Accessory (EN)(2).jpg

RA1117 Professional

Router Attachments, Palm Routers

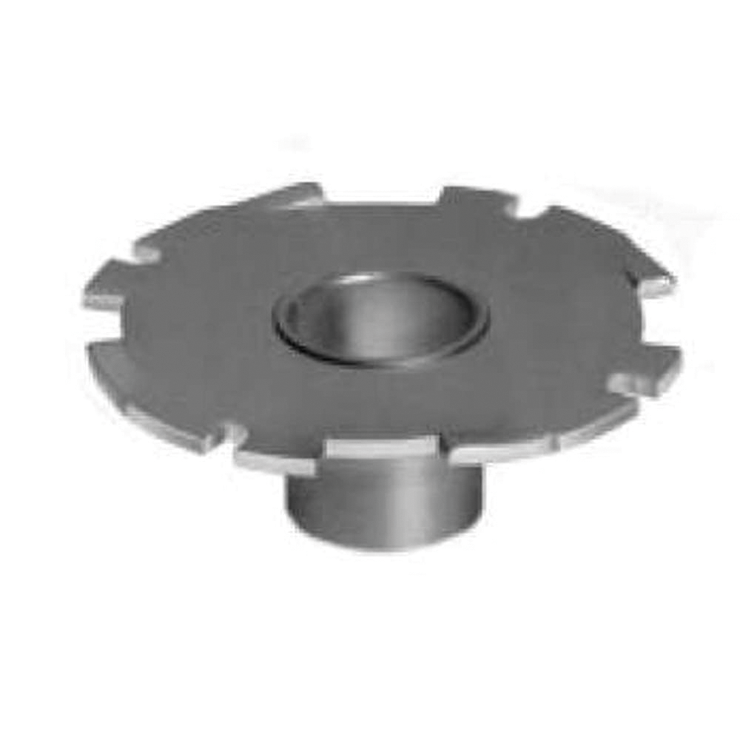

31/64 In. x 13/16 In. x 5/8 In. General Application Template Guide

  • 13/16 In. outer diameter
  • 5/8 In. inner diameter
  • Protrusion below Subbase = approximately 31/64 In. depth
  • The cut diameter of router bit used with the Templet guide must be at least 1/16 In. less than the Templet guide point's inner diameter
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
  • Also for use with 1613EVS and 1614EVS routers, and/or Subbase PR009 for Palm Routers
View more View less
RA1117 Professional

Technical data

The most important data
Material Metal
Size in 13/16" OD (Outside Diameter), 5/8" ID (Inside Diameter), 31/64" (approximate) protrusion beyond bottom of router subbase
Used on Model No. Bosch models: 1613-, 1614-, 1617-, 1618-, 1619- PR10/20E- and MR23EVS-Series Routers
Works With RA1126 Quick-Change Template Guide Adapter (Available in the RA1128 and RA1129 Template Guide Adapter Sets - each sold separately), The RA1126 Adapter works with the Bosch 1617-, 1618- and 1619-Series Routers; MRF23EVS, MRP23EVS and MRC23EVSK routers; and PR011 and PR111 Plunge Bases for Bosch PR20EVS and GKF125CE Palm Routers, 1613, 1613EVS,1614 and 1614EVS Routers, These routers have a built-in quick-change template guide adapter

RA1117 Professional: Further information

Product Highlights

Bosch offers a complete line of router accessories. The RA1117 templet guide is designed for use with the newer Bosch routers, models 1613EVS and 1614EVS. The guide is compatible with the optional RA1129 Template Guide Adapter Set, providing easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides (both also available in the RA1128 Template Guide Set). The guide is also for use with 1613EVS and 1614EVS routers, and/or Subbase PR009 for Palm Routers.
