Router Attachments, Palm Routers
Bosch Router Accessory (EN)(1).jpg
Bosch Router Accessory (EN)(1).jpg

RA1109 Professional

Router Attachments, Palm Routers

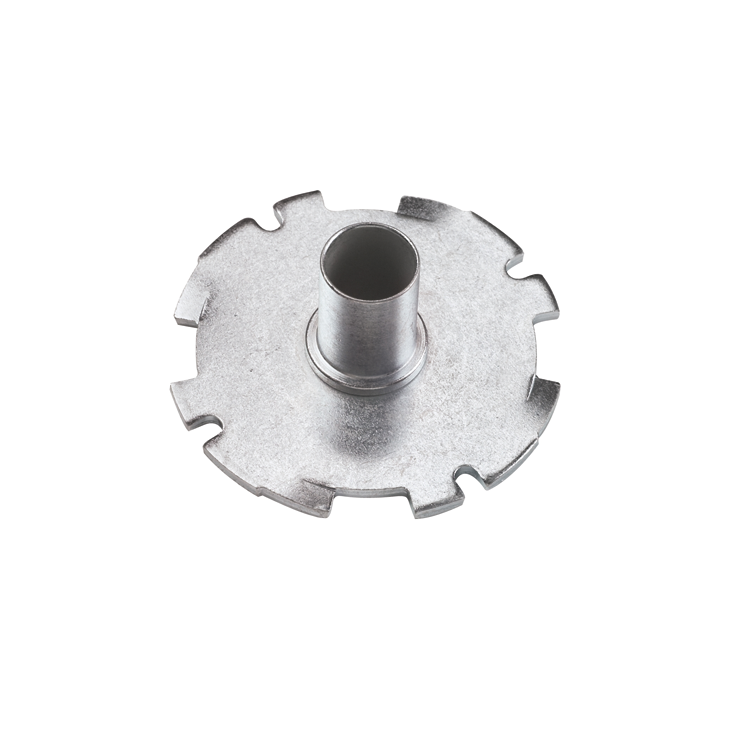

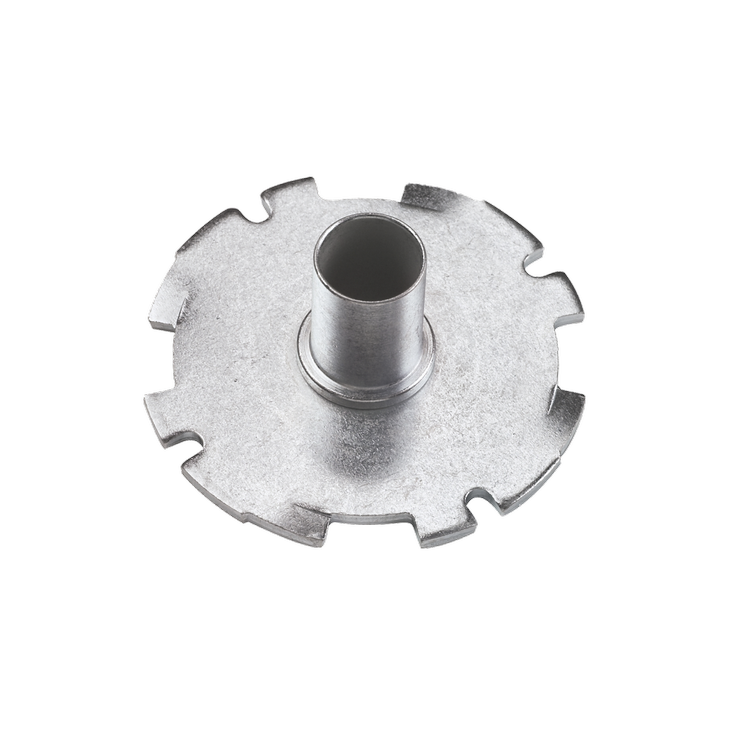

1/2 In. Outer-Diameter Quick-Change Template Guide, General Purpose

  • Template guide design – designed for general-purpose template routing
  • Quick-change template guide system – allows for fast installation and removal
  • Works with the RA1126 Quick-Change Template Guide Adapter – compatible with most Bosch routers
  • Specific measurements – 1/2 In. outer width/diameter of bushing; 13/32 In. inner width/diameter of bushing; 7/16 In. approximate protrusion of bushing below router’s subbase
  • Compatibility – the RA1126 Quick-Change Template Guide Adapter – which is available in the RA1129 Template Guide Adapter Set (sold separately) – works with the Bosch 1617-, 1618- and 1619-series routers; and MRF23EVS, MRP23EVS and MRC23EVSK routers
  • Template Guide Adapter Set (sold separately) – also works with PR011 and PR111 plunge bases for Bosch PR20EVS and GKF125CE palm routers and 1613EVS and 1614EVS routers and their built-in quick-change template guide adapter
View more View less
RA1109 Professional

Technical data

The most important data
Material Metal
Size in 1/2" OD (Outside Diameter), 13/32" ID (Inside Diameter), 7/16" (approximate) protrusion beyond bottom of router subbase
Used on Model No. For use with Bosch models: 1613, 1614, 1617, 1618, 1619, PR10, PR20
Works With RA1126 Quick-Change Template Guide Adapter (Available in the RA1128 and RA1129 Template Guide Adapter Sets - each sold separately), The RA1126 Adapter works with the Bosch 1617-, 1618- and 1619-Series Routers; MRF23EVS, MRP23EVS and MRC23EVSK routers; and PR011 and PR111 Plunge Bases for Bosch PR20EVS and GKF125CE Palm Routers, 1613, 1613EVS,1614 and 1614EVS Routers, These routers have a built-in quick-change template guide adapter
Includes (1) RA1109 1/2 In. Template Guide

RA1109 Professional: Further information

Product Highlights

The Bosch RA1109 template guide features a bushing with a 1/2 In. outer diameter, designed for general-purpose template routing. The Bosch RA-Series quick-change template guide system allows for fast installation and removal. This guide works with the RA1126 Quick-Change Template Guide Adapter (compatible with most Bosch routers), which is available in the optional RA1129 Template Guide Adapter Set (sold separately). The RA1109 template guide and the RA1126 Quick-Change Template Guide Adapter are both included in the eight-piece RA1128 Template Guide Set.
