Router Guides

RA1103 Professional

Router Guides

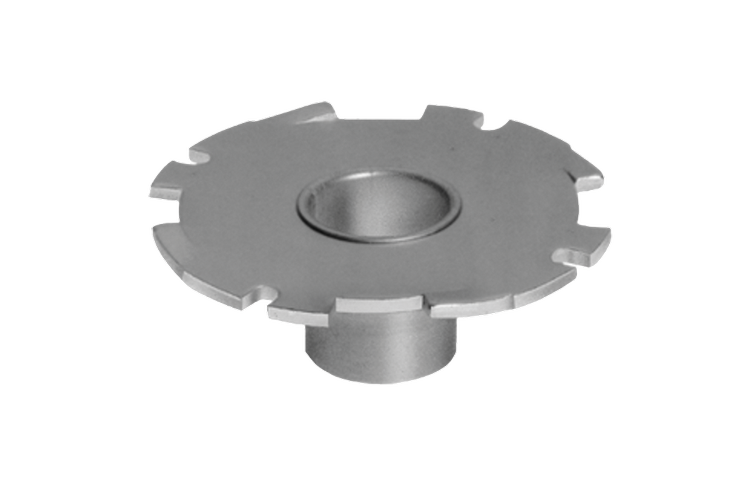

5/16 In. Outer-Diameter Quick-Change Template Guide for Small Dovetail Joints

  • Template guide design – specifically sized for creating small dovetail joints
  • Quick-change template guide system – allows for fast installation and removal
  • Works with the RA1126 Quick-Change Template Guide Adapter – compatible with most Bosch routers
  • Specific measurements – 5/16 In. outer width/diameter of bushing; 17/64 In. inner width/diameter of bushing; 9/64 In. approximate protrusion of bushing below router’s subbase
  • Template Guide Adapter Set (sold separately) – works with the Bosch 1617-, 1618- and 1619-series routers; and MRF23EVS, MRP23EVS and MRC23EVSK routers
  • Template Guide Adapter Set (sold separately) – also works with PR011 and PR111 plunge bases for Bosch PR20EVS and GKF125CE palm routers and 1613EVS and 1614EVS routers and their built-in quick-change template guide adapter
View more View less

RA1103 Professional

Technical data

The most important data

Material Metal
Size in 5/16" OD (Outside Diameter), 17/64" ID (Inside Diameter), 9/64" (approximate) protrusion beyond bottom of router subbase
Used on Model No. Bosch models: 1613-, 1614-, 1617-, 1618-, 1619- PR10/20E- and MR23EVS- series Routers
Weight 0.6 lb
Works With RA1126 Quick-Change Template Guide Adapter (Available in the RA1128 and RA1129 Template Guide Adapter Sets each sold separately), The RA1126 Adapter works with the 1617-, 1618- and 1619-Series Routers; MRF23EVS, MRP23EVS and MRC23EVSK routers; and PR011 and PR111 Plunge Bases for Bosch PR20EVS and GKF125CE Palm Routers, 1613, 1613EVS,1614 and 1614EVS Routers, These routers have a built-in quick-change template guide adapter
Includes (1) RA1103 5/16 In. Outer-Diameter Quick-Change Template Guide

RA1103 Professional: Further information

Product Highlights

The Bosch RA1103 template guide features a bushing with a 5/16 In. outer diameter, specifically sized for creating small dovetail joints. The Bosch RA-Series quick-change template guide system allows for fast installation and removal. This guide works with the RA1126 Quick-Change Template Guide Adapter (compatible with most Bosch routers), which is available in the optional RA1129 Template Guide Adapter Set (sold separately). The RA1103 template guide and the RA1126 Quick-Change Template Guide Adapter are both included in the eight-piece RA1128 Template Guide Set.
