PR007 Professional
Router Attachments, Palm Routers

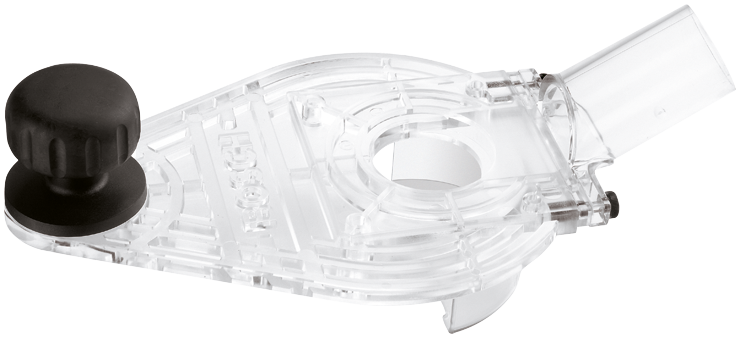

Side-Handle Subbase with Dust Extraction Port
- For use with Bosch PR001 fixed base of PR10E and PR20EVS colt palm routers
- Side handle provides additional gripping location for support of router
- Allows dust collection when edge-forming or when working in from workpiece edge
- Hose port accepts Bosch vacuum hoses directly and accepts standard 1-1/4 In. and 1-1/2 In. hoses when included VAC002 adapter is used
- Accepts optional PR006 Underscribe attachment for creating precision seams between two sheets of laminates
- Connection to dust extraction system provides excellent means to prevent chips from getting under laminate sheets and into glue
- Not for use with Templet guides
Technical data
The most important data |
|
|---|---|
| Material | Clear Polycarbonate |
| Subbase Length | 8-1/8" |
| Subbase Opening | 1-9/16" |
| Subbase Width | 5-7/8" |
| Used on Model No. | Bosch PR001 Palm Router Fixed Base |
| Used on Part No. | PR006, VAC002, VAC005, VAC006, VAC007, VAC008 |
| Weight | 0.75 lb |
| Works With | Palm Router Bases, PR001 for PR20EVS and PR10E, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Vacuum Hose Adapter for 1-1/4" and 1-1/2" Hoses, VAC002 and VAC024 |
| Includes |
Offset Subbase with Side Handle Hose Port VAC002 Vacuum Hoses Adapter Two sets of attachment screws Mounting screws Dust Collection Hood for Use when Edge-forming |
PR007 Professional: Further information
Product Highlights
The PR007 side-handle subbase with dust extraction port can be used with the with Bosch PR001 fixed base of PR10E and PR20EVS colt palm routers and provides numerous routing benefits. The side handle provides additional gripping location for support of router. The subbase accepts dust hoods for edge-forming or for routing in from edge of the workpiece. It also accepts the optional PR006 Underscribe attachment (sold separately) for creating precision seams between two sheets of laminates, and connection to dust extraction system provides excellent means to prevent chips from getting under laminate sheets and into glue. The unit's hose port accepts Bosch vacuum hoses directly and also accepts standard 1-1/4 In. and 1-1/2 In. hoses when included VAC002 adapter is used.
