LR8 Professional
Laser Receivers
165 Ft. Red and Green-Beam Line Laser Receiver
- Advanced Line Laser Receiver design – extends the working range of select Bosch line laser tools to longer distances and outdoor conditions, plus provides audio indicator, an easy-to-use mounting bracket and robust magnets
- Extends working range – detects lines from Bosch GLL3-330CG or GLL3-330C up to 330 Ft. diameter, the GLL3-300 up to 300 Ft. diameter, and the GCL 2-160 up to 165 Ft. diameter
- Dual compatibility – works with red and green beam lasers
- Works outdoors – detects lines in bright conditions, with an oversized receiver for fast reception and finding the center line

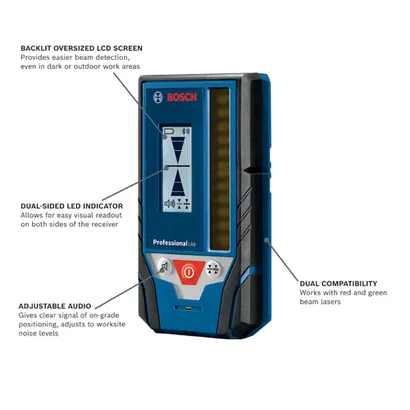

- Backlit oversized LCD screen – for easier beam detection, even in dark or outdoor work areas
- Quick-release mounting bracket – makes receiver easy to position, attaches on leveling rod
- Dual-sided LED indicator – for easy visual readout on both sides of the receiver
- Adjustable audio – gives clear signal of on-grade positioning, adjusts to worksite noise levels
- Heavy-duty magnets – for secure attachment to metal surfaces
- Jobsite tough – IP54 rated to withstand rainy or dusty jobsite conditions
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Automatic Shut-Off | Yes |
| Case Type | Pouch |
| IP Rating | IP 54 |
| Length in | 5.4 " |
| Material | Plastic |
| Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
| Range | Up to 165-ft. |
| Receiving Laser Color | Green and Red |
| Weight | 0.33 lb |
| Width in | 3 " |
| Works With | Combination/Point Alignment Lasers, GCL 2-160, GCL100-40G, GCL100-80C, GCL100-80CG, Line Lasers, GLL3-330CG, GLL3-330C, GLL3-300 |
| Includes |

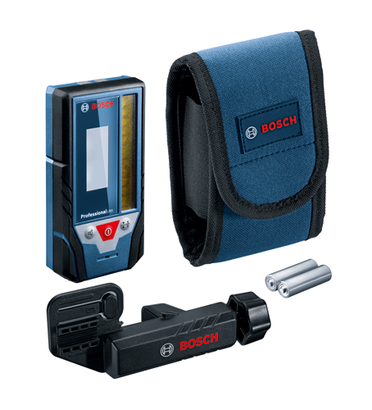

(1) LR8 165 Ft. Red and Green-Beam Line Laser Receiver (1) Quick-Mounting Bracket (2) AA Batteries (1) Belt Pouch |
LR8 Professional: Further information
Product Highlights
The Bosch LR8 Line Laser Receiver allows user to receive the line farther, with precision. It works with green-beam and red-beam lines. When used with the GLL3-330GC or GLL3-330C Laser, the LR8 extends the working range up to 330 Ft. diameter Used with the GLL3-300, the receiver extends the working range to 300 Ft. diameter, and with the GCL 2-160, up to 165 Ft. The LR8 works outdoors, features an oversized receiver for fast reception and finding the center line, and can catch beams midair. The oversized backlit LCD display offers easy viewing. The dual-sided LED arrow indicators make the receiver more flexible. It has a volume-adjustable audio signal, built-in heavy-duty magnets that securely attach to metal surfaces, and a click-in mounting bracket for leveling rods.
