JSH180B Professional
18V Jig Saws

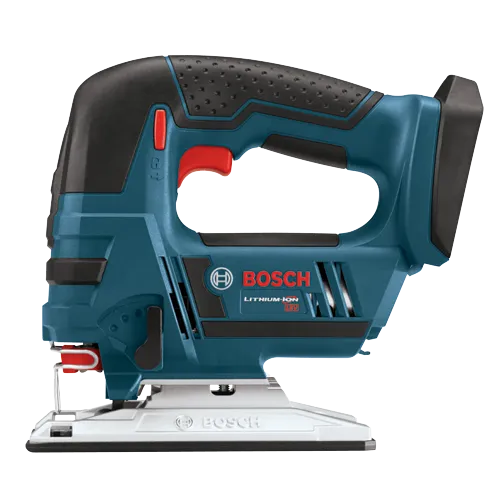

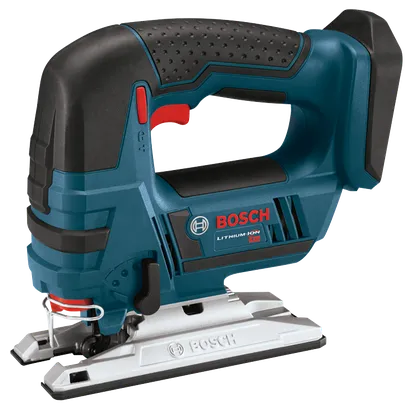

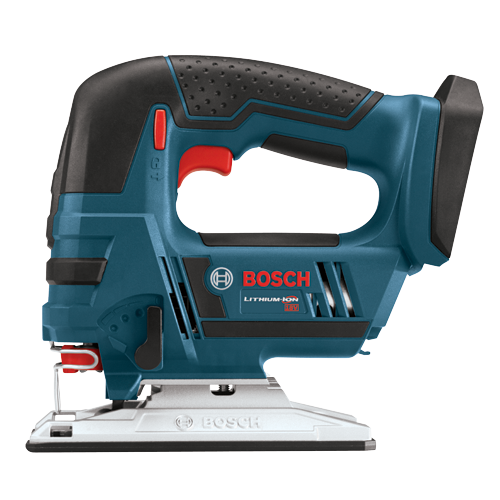

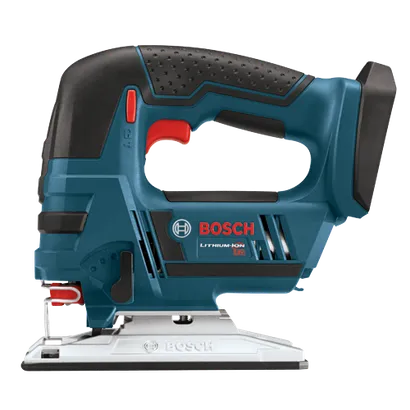

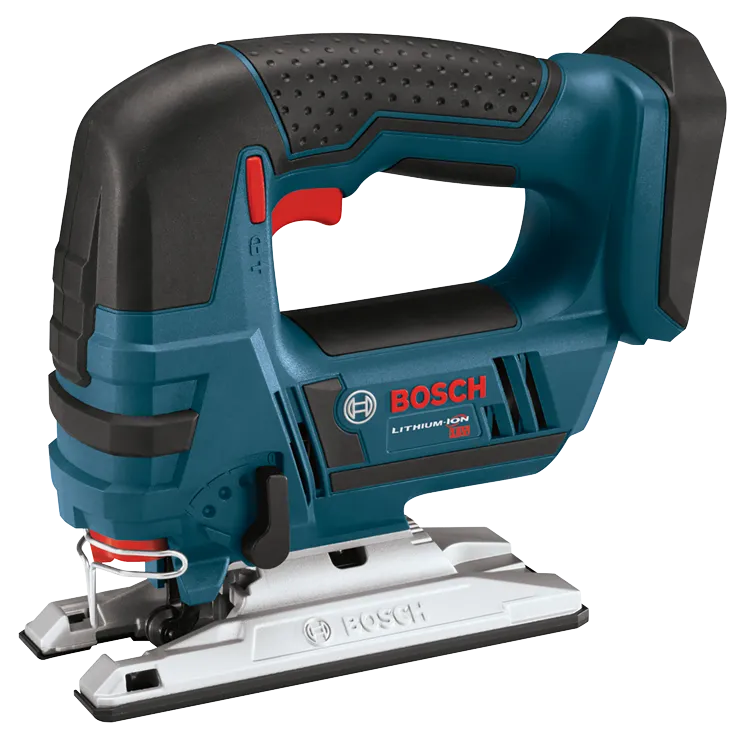

18V Top-Handle Jig Saw (Bare Tool)

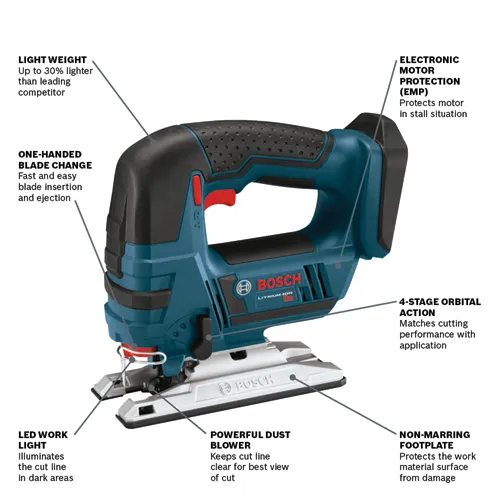

- Light weight – up to 30% lighter than leading competitor
- Compact – up to 10% smaller than leading competitor

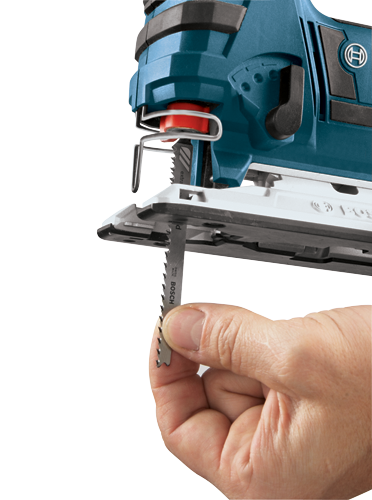

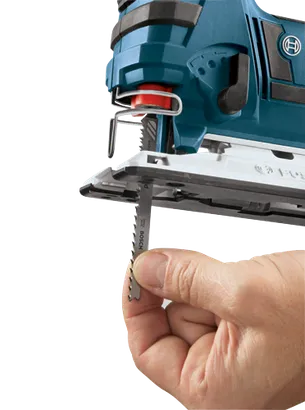

- One-handed blade insertion and ejection for convenience and ease of use
- Smallest grip diameter reduces user fatigue during extended-use applications
- Always-on dust blower helps keep intended cut line visible
- LED light for illuminating cut line
- Adjustable footplate for bevel cuts of up to 45°
- On-board bevel wrench storage for more convenience
- Electronic Motor Protection (EMP) helps protect the motor against overload and ensures a long lifetime
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Not Included |
| Bevel Angle Range | 45° |
| Case Type | No Case Included |
| Charger | Not Included |
| Dust Blower | Yes |
| Height in | 7.48 " |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length in | 10.24 " |
| Max. Bevel Capacity (°) | 45 |

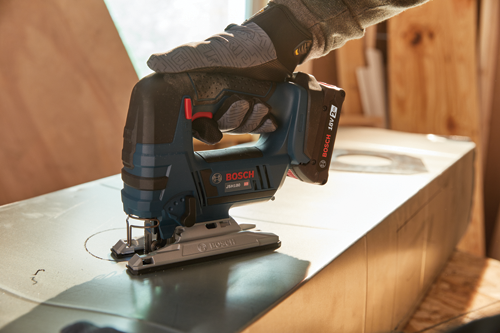

| Max. Capacity in Steel | 3/8" |
| Max. Capacity in Wood | 3-1/2" |
| No Load SPM | 0-2,700 |
| Separate On/Off Speed Control | No |
| Stroke Length (in) | 1 |
| Variable Speed | Yes |
| Weight | 4.1 lb |
| Width in | 3 " |
| Works With | Jig Saw Guide, JA1010, Steel Overshoe for Footplate, JA1011, Anti-Splinter Insert, JA1013 |
| Includes |
(1) JSH180 18V Top-Handle Jig Saw (1) T-Shank Jig Saw Blade (1) JA1013 Anti-Splinter Insert (1) Bevel Wrench |
JSH180B Professional: Further information
Product Highlights

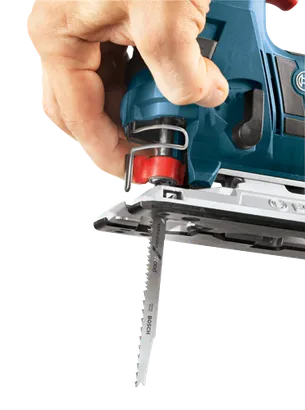

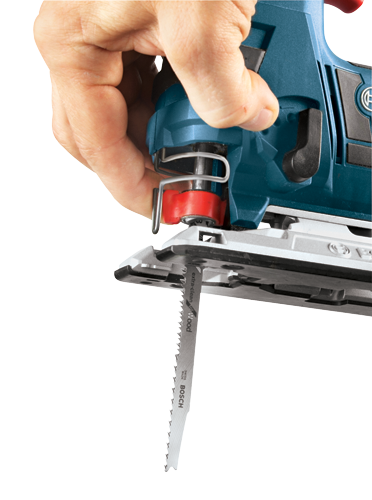

The Bosch JSH180 Lithium-ion 18V jig saw is compact and lightweight. Its T-shank blade change system allows the user to insert the blade just without the need for any tools, and when it’s time for a blade change, a turn of knob ejects the blade, so there is no need to touch a hot blade. This jig saw also features an always-on blower and integrated LED light for enhanced visibility in the cutting area. The sophisticated electronics package includes Electronic Motor Protection (EMP), which protects the motor against overload and ensures a long lifetime and the Electronic Cell Protection (ECP) protects the battery (sold separately) against overload, overheating and deep discharge. Bosch 18V Lithium-ion batteries feature the CoolPack design with a special heat-conductive housing and ribbing that cools them by drawing out heat out, providing battery life of up to 100% over Lithium-ion batteries without the CoolPack design.
