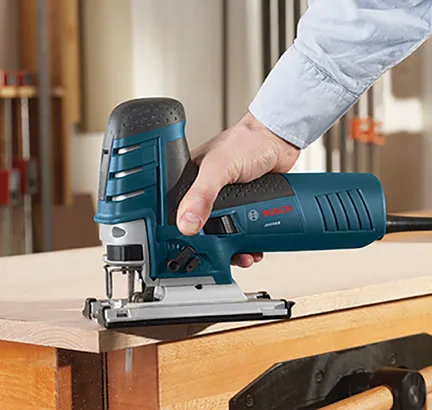

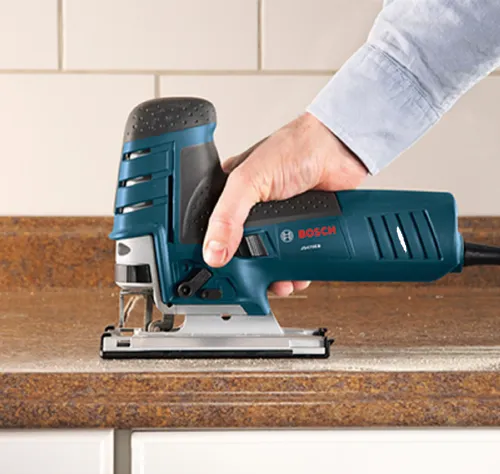

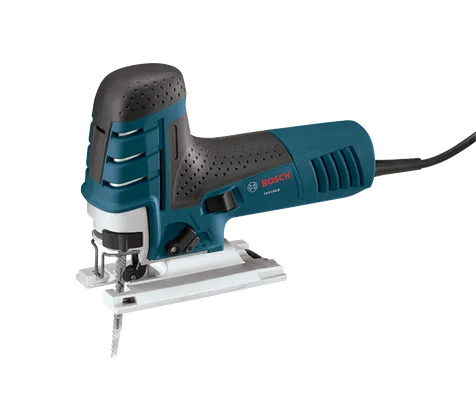

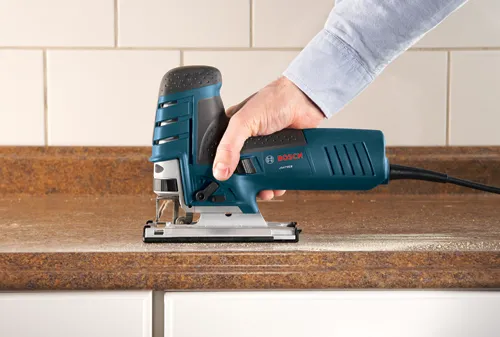

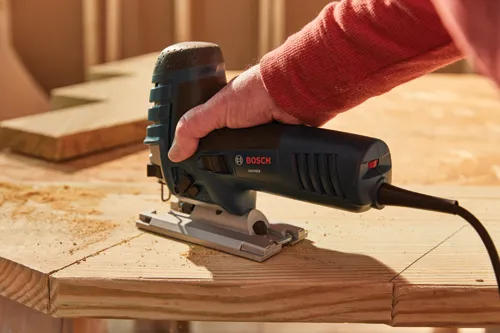

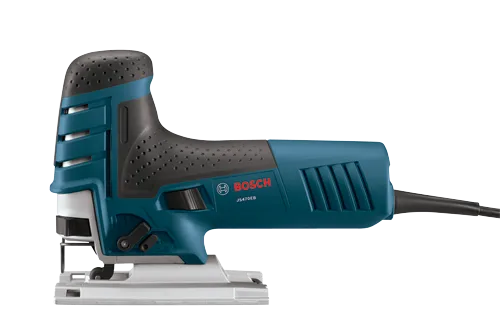

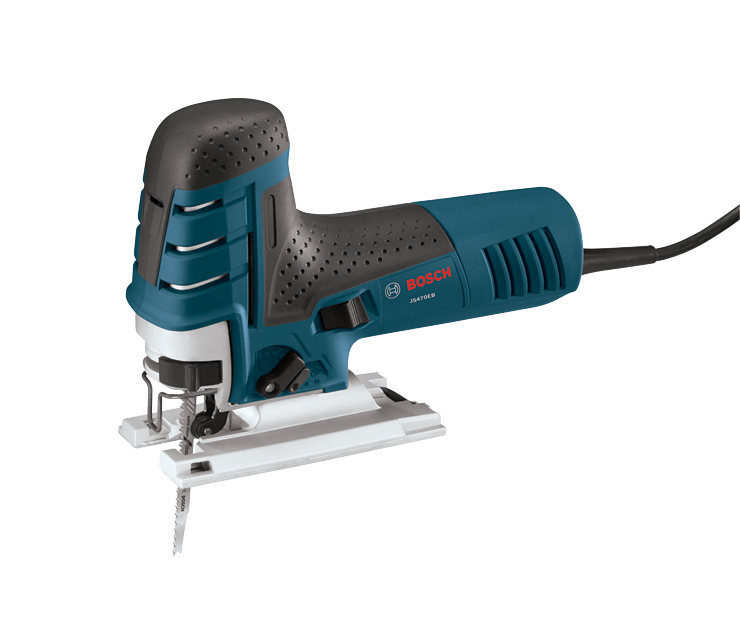

JS470EB Professional
Jig Saws
7.0 Amp Barrel-Grip Jig Saw

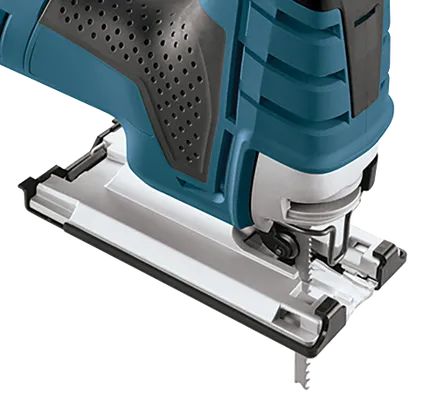

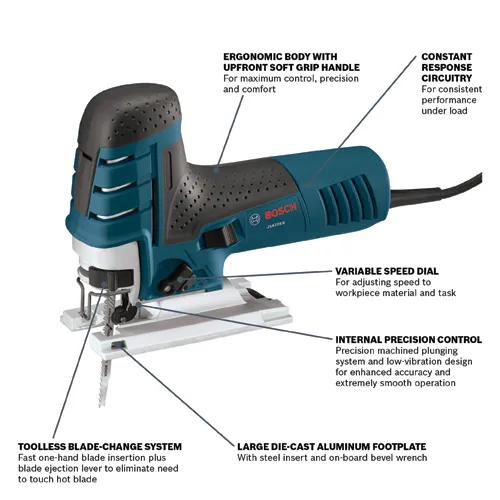

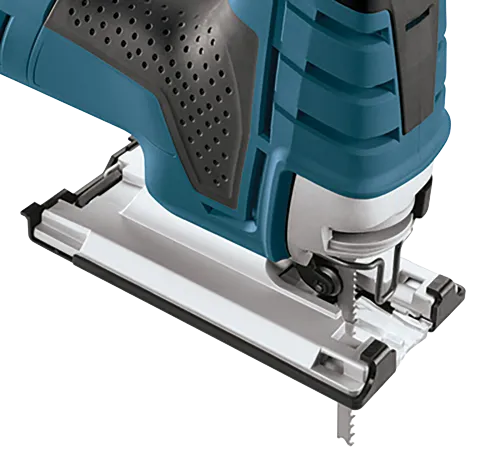

- Large die-cast aluminum footplate – provides a no-mar plastic overshoe

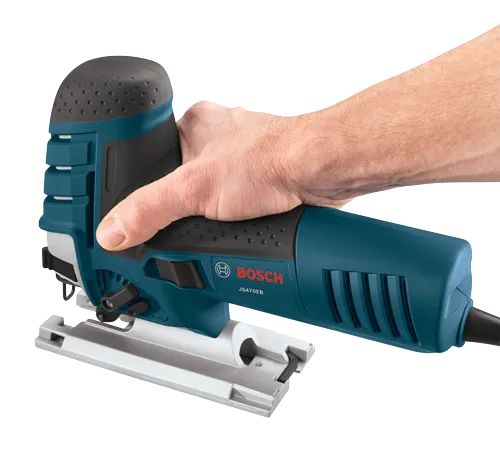

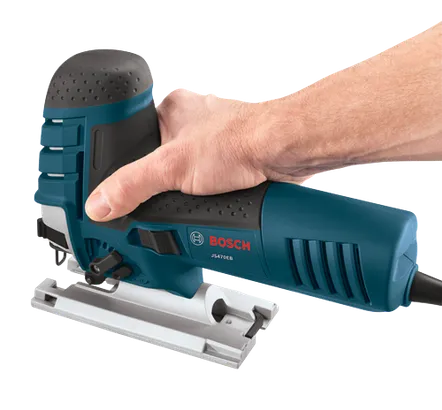

- Ergonomic body – features an upfront grip area for maximum control, precision and comfort
- Soft-grip areas – offers a solid, comfortable grip
- Powerful 7.0 Amp motor – delivers up to 3,100 strokes per minute
- Variable-speed control – includes a dial to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – provides durability
- Toolless blade-change system – permits fast blade insertion
- Ejection lever – eliminates the need to touch hot blades
- Four orbital-action settings – varied blade strokes
- Internal precision control – precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
- Dust blower with on/off switch – keeps the cut line visible and free of dust
- Fully counterbalanced low-vibration mechanism – ensures extremely smooth operation
Technical data
The most important data |
|
|---|---|
| Amperage | 7 |
| Bevel Angle Range | 45° |
| Category | Jig Saws |
| Cutting Capacity- Soft Wood | 5-7/8" |
| Cutting Capacity-Aluminum | 0.875 |
| Cutting Capacity-Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Height in | 7 " |
| Hertz | 60 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length in | 7 " |
| Max. Bevel Capacity (°) | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 500-3,100 |
| Rating | 120V |
| Reverse | No |
| Stroke Length (in) | 1 |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 5.9 lb |
| Width in | 2.5 " |
| Works With | Jig Saw Guide, JA1010, Dust Collection Attachment, JA1007, Anti-Splinter Insert, JA1013 |
| Includes |
(1) JS470EB 7.0 Amp Barrel-Grip Jig Saw (1) Non-Marring Overshoe (2601099183) (1) Anti-Splinter Insert (1) T-Shank Jig Saw Blade (1) Bevel Wrench (1) Carrying Case |
JS470EB Professional: Further information
Product Highlights
The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute – with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
