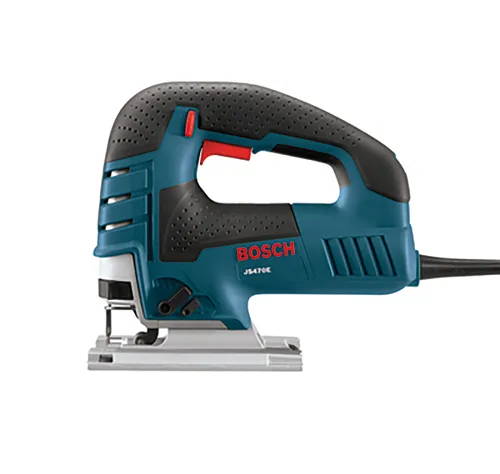

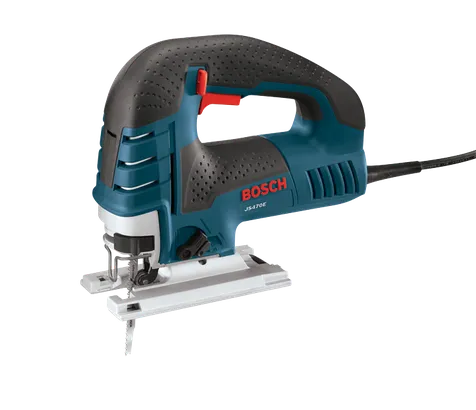

JS470E Professional
Jig Saws
7.0 Amp Top-Handle Jig Saw

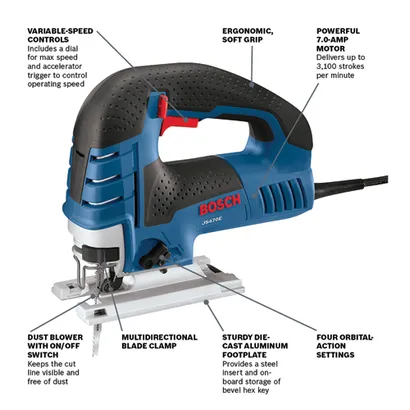

- Powerful jig saw – with 7.0 amp rating

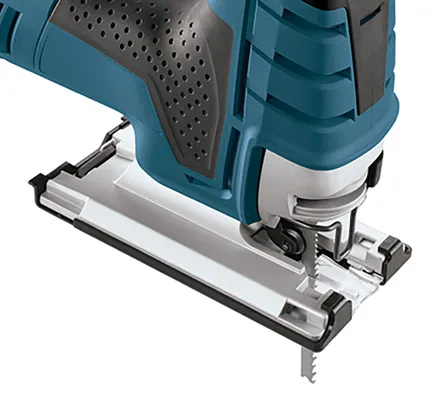

- Large die-cast aluminum footplate – with steel insert and on-board storage of bevel hex key
- Variable-speed control – includes a dial for max speed and accelerator trigger to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – supplies superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – offers durability
- Toolless blade-change system – furnishes fast blade insertion and a blade-ejection lever; no need to touch hot blades
- Four orbital-action settings – provide varied blade strokes for smooth to aggressive cuts
- Internal precision control – supplies a precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
- Dust blower with on/off switch – for keeping the cut line visible and free of dust
- Ergonomic top handle with soft-grip areas – supplies a solid, comfortable grip
- Ambidextrous lock-on button – for steady long cuts and user comfort and control
Technical data
The most important data |
|
|---|---|
| Amperage | 7 |
| Bevel Angle Range | 45° |
| Case Type | Hard plastic |
| Category | Jig Saws |
| Cutting Capacity- Soft Wood | 5-7/8" |
| Cutting Capacity-Aluminum | 0.875 |
| Cutting Capacity-Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Height in | 8.43 " |
| Hertz | 60 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length in | 14 " |
| Max. Bevel Capacity (°) | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 500-3,100 |
| Rating | 120V |
| Stroke Length (in) | 1 |
| Tool Level | 2 - Corded – variable speed intermediate |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 5.6 lb |
| Width in | 4 " |
| Works With | Jig Saw Guide, JA1010, Dust Collection Attachment, JA1007, Anti-Splinter Insert, JA1013 |
| Includes |
(1) JS470E 7.0 Amp Top-Handle Jig Saw (1) Non-Marring Overshoe (2601099183) (1) JA1013 Anti-Splinter Insert (1) T-Shank Jig Saw Blade (1) Bevel Wrench (1) Carrying Case |
JS470E Professional: Further information
Product Highlights

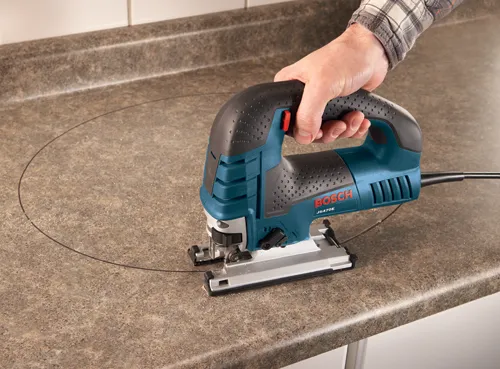

The Bosch JS470E Top-Handle Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. A dial on the back of the tool controls the maximum speed and the accelerator trigger controls the operating speed. Built with an aluminum gearbox and an insulated cover, this jig saw comes with a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate. The JS470E's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
