HDC300 Professional
Rotary Hammer & Hammer Drill Attachments

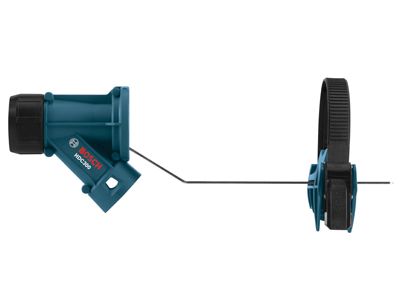

SDS-max® and Spline Dust-Collection Attachment

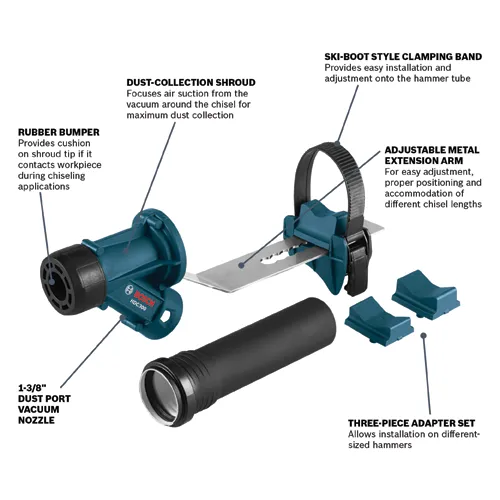

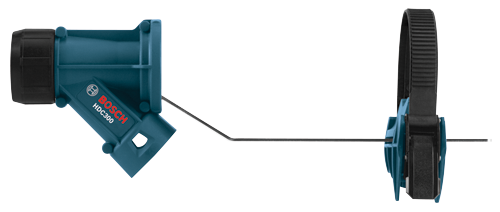

- Dust-collection shroud – focuses air suction from the vacuum around the chisel for maximum dust collection
- Ski-boot style clamping band – provides easy installation and adjustment onto the hammer tube

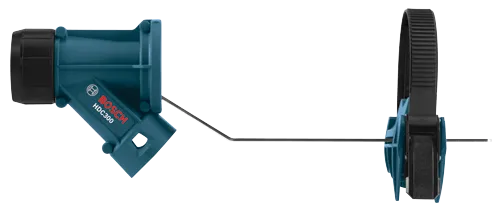

- Adjustable metal extension arm – for easy adjustment, proper positioning and accommodation of different chisel lengths
- Rubber bumper – provides cushion on shroud tip if it contacts workpiece during chiseling applications
- Three-piece adapter set – allows installation on different-sized hammers (not for use in rotary hammer mode)
- 1-3/8-In. dust port – fits Bosch dust-extractor vacuum nozzles
- Optional dust-port adapters (sold separately) – can convert the dust port to 1-1/4-In. or 2-In. vacuum nozzles
Technical data
The most important data |
|
|---|---|
| Length in | 14 " |
| Material | Metal, plastic, rubber |
| Overall Length in | 14 |
| Used on Model No. | All Bosch SDS-Max / spline combination rotary hammers and all SDS-Max demolition hammers |
| Weight | 2 lb |
| Weight (lbs.) | 2 |
| Width in | 3 " |
| Works With | Compatible Rotary Hammers, SDS-max: RH540M, 11264EVS, RH745, RH850VC, RH1255VC, GBH18V-36C, GBH18V-40C, GBH18V-45C; Spline: RH540S, 11265EVS; NOTE: use ONLY in "demolition/chipping" mode., Compatible Demolition Hammers, SDS-max: DH507, 11321EVS, DH712VC, 11316EVS, DH1020VC, Vacuum Hose / Nozzle 1-3/8", VX120; Also compatible with 1-1/4", 1-1/2" and 2-1/2" hose/nozzles using adapters VAC002, VAC024, VAC020 respectively |
| Includes |

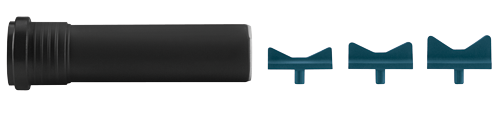

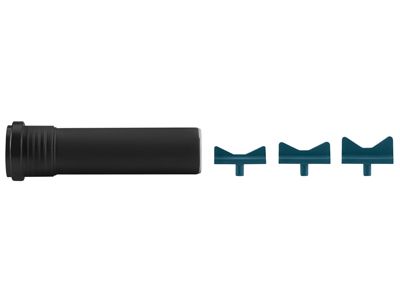

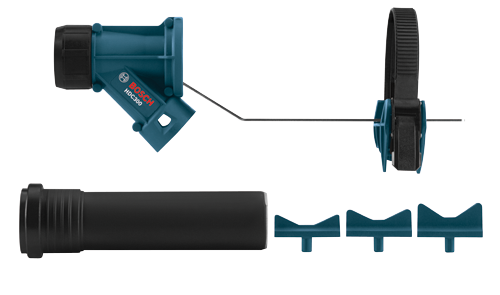

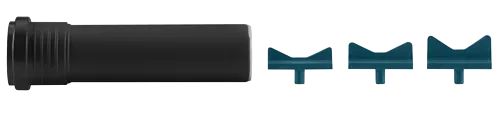

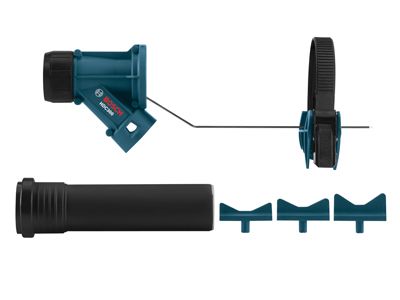

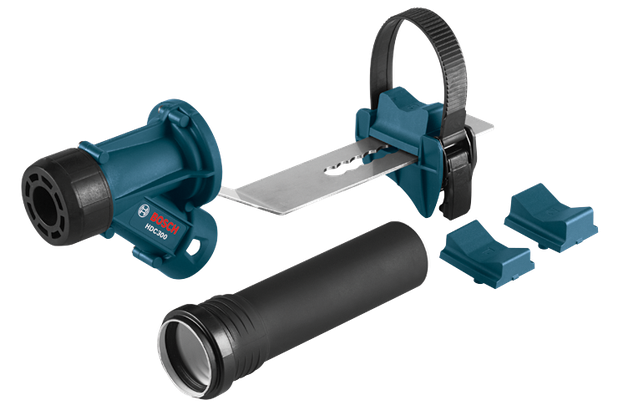

(1) Chiseling Dust Collection Attachment (3) Adapter Pieces (1) Extension Tube |
HDC300 Professional: Further information
Product Highlights

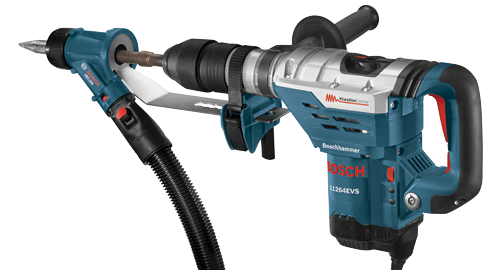

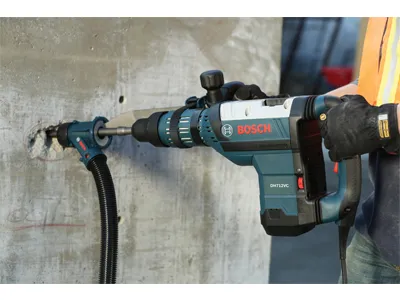

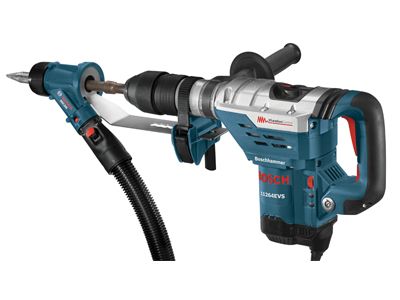

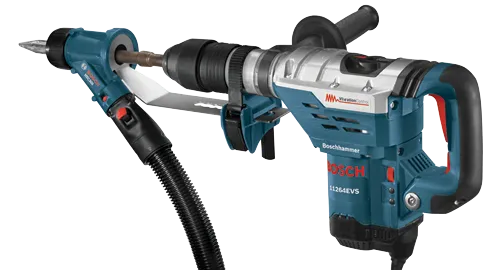

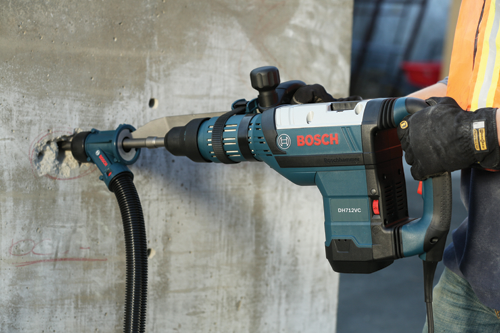

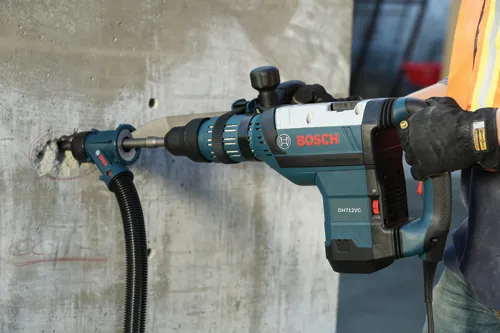

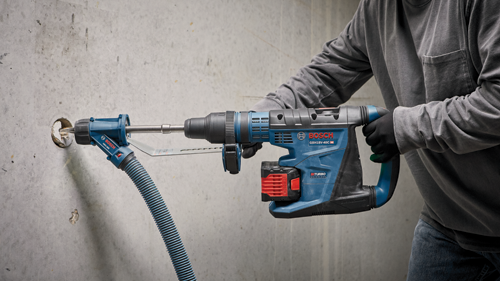

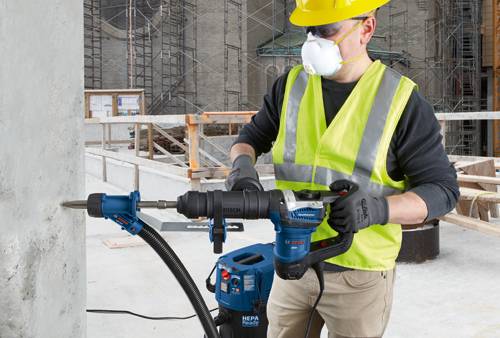

The Bosch HDC300 SDS-max® and Spline Dust-Collection Attachment can help to extract dust when working on most Bosch SDS-max® and spline hammers. It fits Bosch SDS-max® and spline combination rotary and demolition hammers (not for use in rotary hammer mode). The HDC300 allows the user to access the chisel for installation, removal and adjustment without removing the attachment. The shroud itself focuses air suction from the vacuum around the chisel for maximum dust collection. And thanks to a durable clamping band, the attachment is easy to install and adjust on all the hammers it was designed to fit. The attachment also features a metal extension arm that can be adjusted to position it correctly around the chisel and to accommodate different chisel lengths.
