GXA3-01L Professional
PRO+GUARD™ Silica Extraction Kits
9-Gallon PRO+GUARD™ Drilling Kit
- Convenient update package – created to help VAC090-series dust extractor users move toward compliance with the OSHA respirable crystalline silica dust regulation; includes HEPA filter, fleece filter bag, dust-extraction attachment and carrying case
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica Table 1 dust compliance
- HEPA filter – captures 99.97% of particles larger than 0.3 microns
- HEPA filter’s enhanced low-stick surface – improves the filter-cleaning process
- Fleece dust filter bag design – works as a preliminary filter and a secure way to capture debris and dust to increase the life of the main filter
- Dependable port cover on fleece bag – securely closes opening of the filter bag and keeps the dust and debris inside during the disposal process
- Dust-extraction attachment for concrete drilling – optimized for drilling diameters from 5/8 In. to 1-3/8 In.; accommodates up to 2-1/2 In. by removing brush ring
- Drilling attachment dust port – fits Bosch 1-3/8 In. vacuum nozzle and can convert to 1-1/4 In. /2 In. hose nozzles
- L-Boxx Stackable tool-storage system – features cases that interlock quickly, protect tools securely and handle easily, yet are accessible even when stacked
- Upgraded one-click stacking – easily lock tool cases together in seconds for easy transport and handling
- L-Boxx dust extractor integration – creates a mobile workstation for easier portability
Technical data
The most important data |
|
|---|---|
| Height in | 10 " |
| Length in | 17.5 " |
| Material | High Density Plastic |
| Weight | 4.8 lb |
| Width in | 14 " |
| Works With | Dust Extractors, VAC090A, VAC090AH, VAC090S |
| Includes |

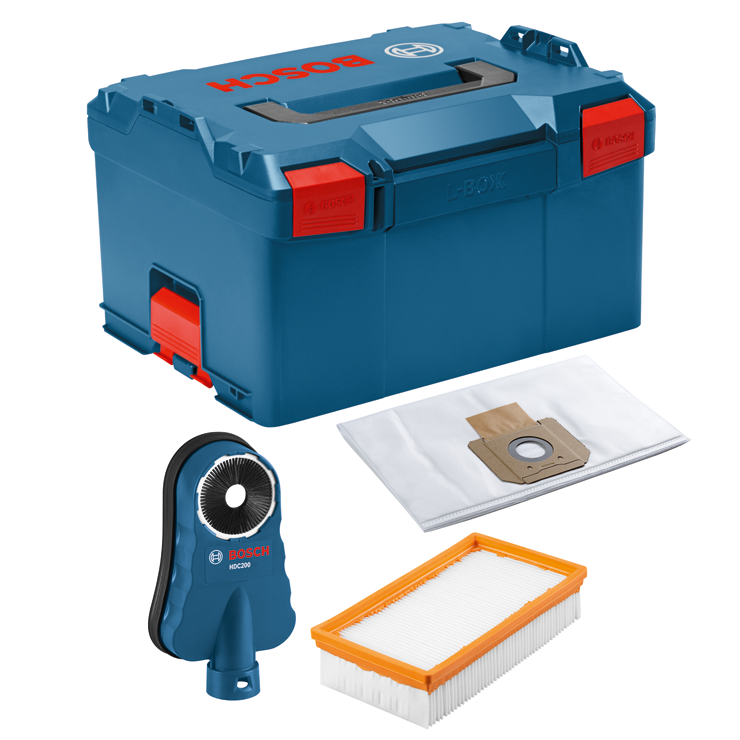

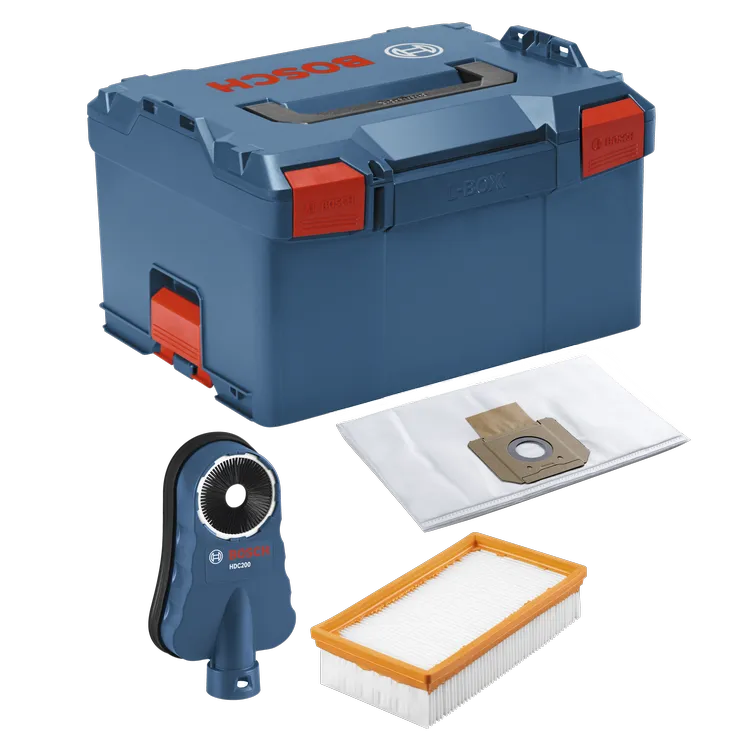

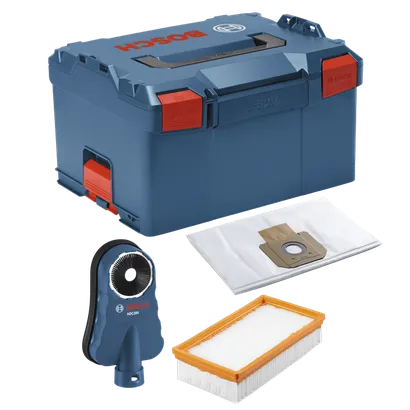

(1) VF130H HEPA Filter (5) VB090F 9-Gallon Fleece Filter Bags (1) HDC200 Dust-Collection Attachment (1) L-BOXX-3 Carrying Case |
GXA3-01L Professional: Further information
Product Highlights
The Bosch GXA3-01L PRO+GUARD™ Drilling Kit features a HEPA filter, fleece filter bag and other accessories to upgrade the VAC090-series dust extractor. The VF130H HEPA Filter captures 99.97% of particles 0.3 microns and larger, and it has a low-stick surface to enhance the filter-cleaning process. It helps users move toward compliance with the OSHA respirable crystalline silica dust regulation. The VB090F Fleece Filter Bag acts as a preliminary filter, and the port cover securely closes to keep the dust inside during disposal. The filter and fleece bag are for use in dry applications only. The HDC200 dust-collection attachment for concrete drilling is optimized for drilling diameters from 5/8 In. to 1-3/8 In. It has two air chambers: one for drilling bit to pass through to extract dust, the other to maintain suction to the wall. The L-Boxx-3 tool carrying case (part of the L-Boxx tool-storage system) is also included. The case integrates with the dust extractor for a mobile workstation.
