GTS15-10 Professional
Table Saws

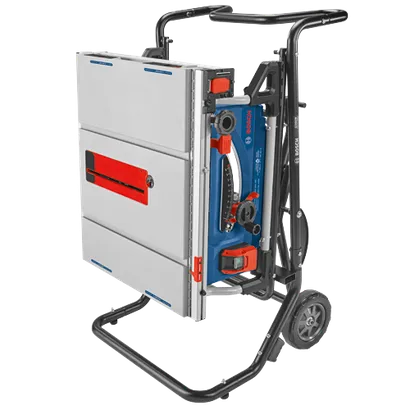

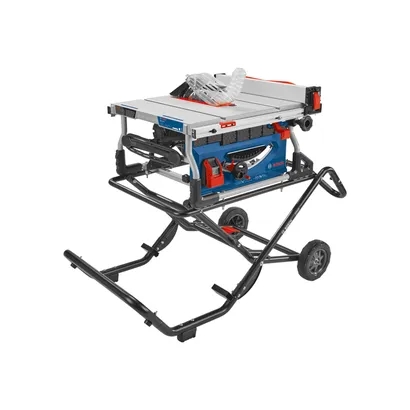

10 In. Jobsite Table Saw with Gravity-Rise Wheeled Stand

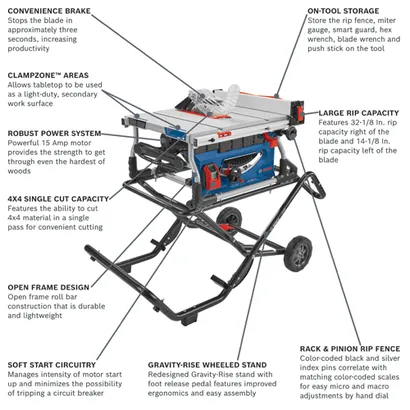

- 15-Amp saw with 3,800 rpm for rip-cutting and cross-cutting of fine and hard wood materials
- Convenience brake – helps blade stop in approximately three seconds, increasing productivity

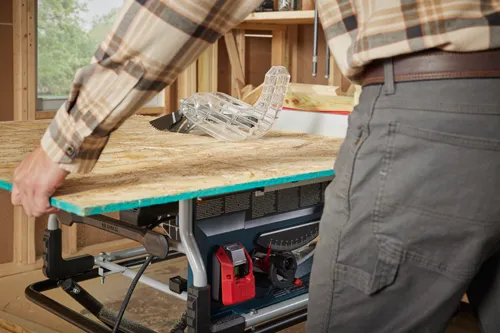

- Clampzone™ areas – allow tabletop to be used as a light-duty, secondary work surface
- Open frame design – equipped with open frame roll bar and lightweight construction for durability
- Soft-start circuitry – manages intensity of motor start-up and minimizes the possibility of tripping a circuit breaker
- Electronically regulated speed – helps maintain speed under load

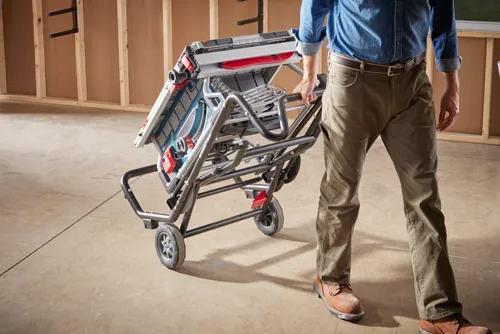

- Portability – works seamlessly with the included lighter GTA50W Gravity-Rise Wheeled Stand for easy jobsite mobility, with single-action setup and take down
- Rack and pinion rip fence – features color-coded index pins that correlate with matching color-coded scale for easy adjustments by hand dial
- Smart Guard System – riving knife and anti-kickback pawls provide protection, while the guard assembly provides a barrier to help prevent blade contact while allowing an unobstructed view of the cut
- On-tool storage – stores the rip fence, miter gauge, Smart Guard System, hex wrench, blade wrench and push stick on the tool
Technical data
The most important data |
|
|---|---|
| Amperage | 15 |
| Arbor in | 5/8" |
| Bevel Angle Range | -2° to 47° |
| Blade Diameter (in) | 10 |
| Dust Blower | Yes |
| Height in | 13.53 " |
| Length in | 28.1 " |
| Max. Bevel Capacity (°) | 47 |
| Max. Depth of Cut at 45 Deg. | 2-1/2" |
| Max. Depth of Cut at 90 Deg. | 3-9/16" |
| No Load RPM | 3,800 |
| Rip Capacity - Left (in) | 14.125 |
| Rip Capacity - Right (in) | 32.125 |
| Voltage | 120V |
| Weight | 91 lb |
| Weight (lbs.) | 91 |
| Width in | 27.8 " |
| Works With | Vacuum Hoses, Common 2-1/2 In. Vacuum Hoses, Vacuum Hose Adapter for 35 mm Vacuum Cleaner Hoses, VAC004, Dust Bag, TS1004, Zero-Clearance Insert, TS1017, Dado Insert, TS1014, Outfeed Support, TS1015, Left-Side Support, TS1008 |
| Includes |
(1) GTS15-10 10 In. Jobsite Table Saw (1) GTA50W Gravity-Rise Wheeled Stand (1) 10 In. Carbide-Tipped Saw Blade (1) Miter Gauge (1) Barrier Guard Assembly (1) Anti-Kickback Device Set (1) Rip Fence with Flip-Over Fence (1) Table Insert (1) Push Stick (1) Blade Wrench (1) Hex Wrench |
GTS15-10 Professional: Further information
Product Highlights
The Bosch GTS15-10 10 In. Jobsite Table Saw with Gravity-Rise Wheeled Stand delivers both professional rip capacity and outstanding portability to get the job done. The powerful 15-Amp saw delivers outstanding productivity for tough rip-cutting and cross-cutting jobs. It features electronically regulated speed to help maintain speed under load. The Rack and Pinion rip fence is engineered for great ease-of-use and allows for easy micro and macro adjustments with a hand knob, without having to tap and knock the fence into place. The lighter GTA50W Gravity-Rise Wheeled Stand has 8 In. treaded rubber-composite tires and foot release pedal for easy set-up and transport. It is jobsite-ready with heavy-duty construction. The Smart Guard System features a three-position adjustable riving knife, anti-kickback pawls and non-obstructed-view barrier guard assembly. The table saw provides a 32-1/8 In. rip capacity and 4x4 single cut capacity. With its durable open frame design, powerful motor, easy adjustments and portability, this table saw offers the worker an easy and convenient cutting solution for any jobsite.
