GST18V-60BCN Professional
Cordless Jig Saws

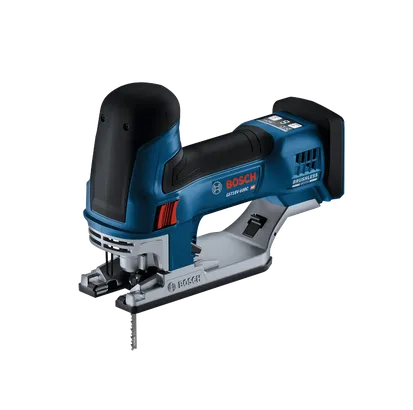

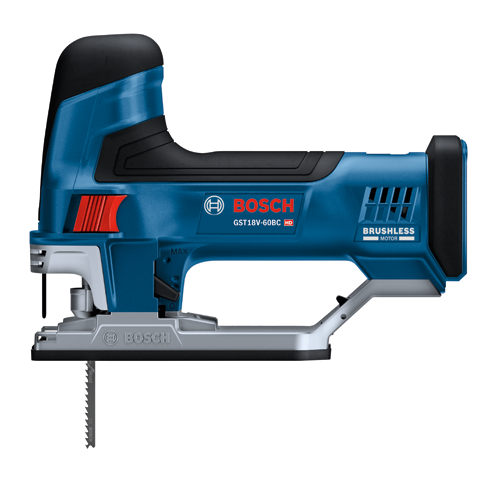

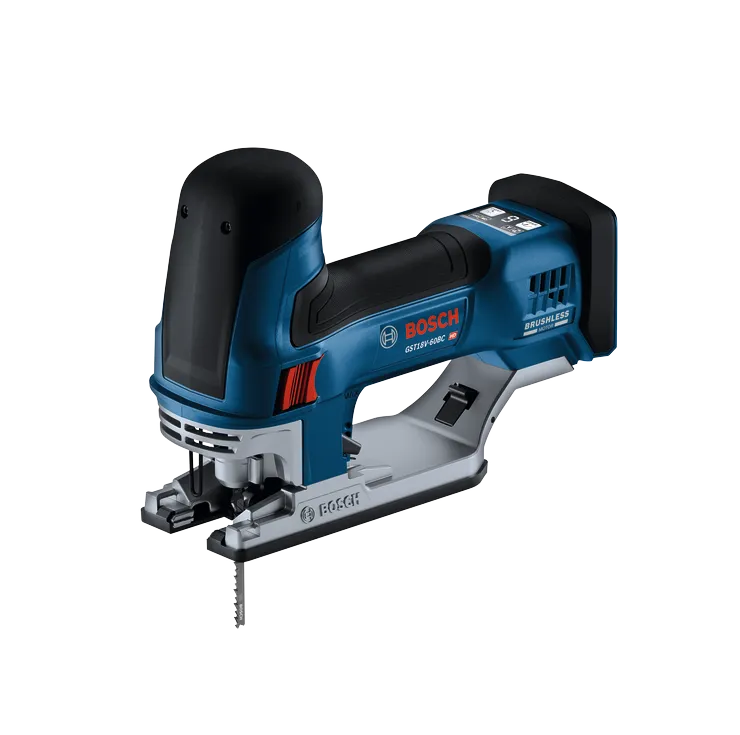

18V Brushless Connected Barrel-Grip Jig Saw (Bare Tool)
- Brushless 18V jig saw design – delivers corded performance, with up to 3,800 no-load strokes per minute
- Adjustable blade guide/channel – minimizes blade deflection while performing straight or curve cuts
- Four pendulum stages – deliver varied blade strokes to shift from fast cutting to cleaner cuts
- Connectivity – link to connected device via Bosch Toolbox App to pre-select speeds, turn the light on and off, and provide information on drop control events via Bosch Toolbox App
- Tool-free blade-change system – permits fast, convenient blade insertion and ejection
- Onboard user interface – provides speed-setting control and tool-status feedback
- Extended upfront soft-grip areas – provides a small barrel-grip circumference for greater tool control
- Double-sided pulse-activated switch – provides easy activation when switching on or off, for working with either hand
- Variable-speed control – provides a dial to control operating speed
- Drop control - shuts the tool off for increased user protection when it's accidentally dropped
- Precision control - saw blade channel helps remove fish tailing during curve cutting
- Dust blower – keeps the cut line visible and free of dust
- LED light – illuminates the cut line in dark work areas
- Large die-cast aluminum footplate – includes a no-mar plastic overshoe for greater stability
- Adaptive speed control – dials down the strokes per minute to control the entry point of the blade and the work-piece; once the saw blade touches the workpiece, the jig saw will resume the selected speed, to provide the best control and precision
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery/Charger | Not Included |
| Bevel Angle Range | 0° |
| Case Type | No Case Included |
| Dust Blower | Yes |
| Height in | 7.1 " |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length in | 9.6 " |
| Max. Bevel Capacity (°) | 0 |
| Max. Capacity in Steel | 3/8" |
| Max. Capacity in Wood | 6-1/8" |
| No Load SPM | 800-3,800 |
| Stroke Length (in) | 6.1 |
| Variable Speed | Yes |
| Weight | 4.4 lb |
| Weight (lbs.) | 4.4 |
| Width in | 3.2 " |
| Works With | Articulating Dust Extraction Kit, JA1012, Circle And Parallel Cutting Guide, JA1010, Anti-Splinter Insert, JA1013 |
| Includes |
(1) GST18V-60BC 18V Brushless Connected Barrel-Grip Jig Saw (2) T-Shank Jig Saw Blades (1) Anti-Splinter Insert (1) Plastic Overshoe (1) Covering Hood (1) Suction Nozzle |
GST18V-60BCN Professional: Further information
Product Highlights
This 18V cordless jig saw is optimized for curve cuts, even through thicker material. The Bosch GST18V-60BC 18V Barrel-Grip Jig Saw features a brushless motor that delivers corded performance, with 800 to 3,800 strokes per minute speed. This barrel-grip jig saw provides an easy-to-reach pulse-activated double-sided switch to accommodate working with either the left or right hand. It features an adjustable blade guide/channel, which minimizes blade deflection while performing straight or curve cuts. The jig saw has four pendulum stages, to shift from fast cutting to cleaner cuts. Connecting to the jig saw allows user to pre-select speeds, turn the light on and off, and provide information on drop control events via Bosch Toolbox App. This jig saw features an adaptive speed-control setting, which will dial down the strokes per minute to control the entry point of the blade and the workpiece. Once the saw blade touches the workpiece, the jig saw will resume the selected speed, to provide the best control and precision. This jig saw also features a blower that can be switched on and off. The jig saw is compatible with guide rail and circle adapter. The jig saw has extended upfront soft-grip areas and a small barrel-grip circumference for greater tool control. The cut lines stay visible due to the dust blower and LED light. The jig saw features a tool-free T-shank blade-change system. The large die-cast aluminum footplate with no-mar plastic overshoe to help prevent damage to the workpiece.
