GRL900-20HVK Professional
Rotary Lasers
REVOLVE900 Self-Leveling Horizontal/Vertical Rotary Laser Kit
- Vertical-beam functionality – provides a vertical beam and 90° point for layout, squaring and plumb applications
- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy

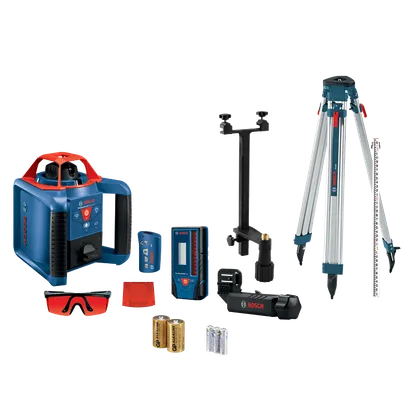

- Comprehensive rotary laser kit – features a horizontal/vertical rotary laser with working range of up to 1,000 Ft. and includes an LR10 laser receiver, a remote control, a tripod, a grade rod, wall mount, two D batteries, three AA batteries, laser glasses, target card and a carrying case
- Reliable accuracy – delivers ±1/8 In. accuracy at 100 Ft. for confidence in the job setup
- Long-range capability – provides up to 1,000 Ft. working range
- Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
- Robust design – features two large easy-to-grip carrying handles for convenience and additional drop protection
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Height in | 7.5 " |
| IP Rating | IP 54 |
| Laser Beam Color | Red |
| Laser Diode | Class 3R <5mW @ 630 ~ 670nm |
| Length in | 7 " |
| Leveling Type | Self-Leveling, Up to 5° |
| Material | Plastic |
| Mount Threading | 5/8-11 |
| Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
| Range | Up to 1,000-ft. |
| Weight | 3.9 lb |
| Width in | 6.7 " |
| Works With | Laser Receivers, LR10, Tripods, BT160, BT170HD, BT300HD, Grade Rods, GR500, GR16, Mounts and Positioning Devices, WM4 |
| Includes |
(1) GRL900-20HV REVOLVE900 Self-Leveling Horizontal/Vertical Rotary Laser (1) LR10 Laser Receiver (1) BT160 Aluminum Tripod (1) GR 8 8-Ft. Leveling Rod (1) RC1 Remote Control (1) WM 24 Wall Mount (1) Red Laser Glasses (1) Red Target Card (2) D Batteries (3) AA Batteries (1) Carrying Case |
GRL900-20HVK Professional: Further information
Product Highlights
The Bosch REVOLVE900 Self-Leveling Horizontal/Vertical Rotary Laser Kit delivers a comprehensive solution for precise outdoor and indoor leveling. It features a horizontal/vertical self-leveling laser, suitable for leveling, aligning and squaring applications. The rotary laser provides users with variable speed selection and manual scan angles for maximum visibility at different lighting conditions. It delivers accuracy of up to ±1/8 In. at 100 Ft, and a range of up to 1,000 Ft. with LR10 laser receiver. The electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a metal cage and an IP54 rating. Easy to use, the kit includes a remote control that allows for one-person operation to handle leveling and grading tasks on the jobsite. This all-in-one solution includes an LR10 laser receiver, remote control, aluminum tripod, sturdy grade rod, wall mount, two D batteries, three AA batteries, laser glasses, target card and hard carrying case.
