GRL4000-80CHK Professional
Rotary Lasers

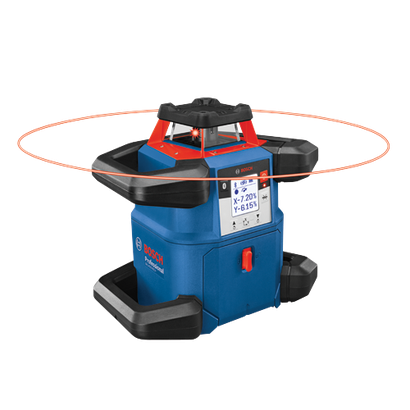

18V REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser Kit with (1) CORE18V® 4 Ah Advanced Power Battery
- Fully featured rotary laser – has dual dial-in slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more

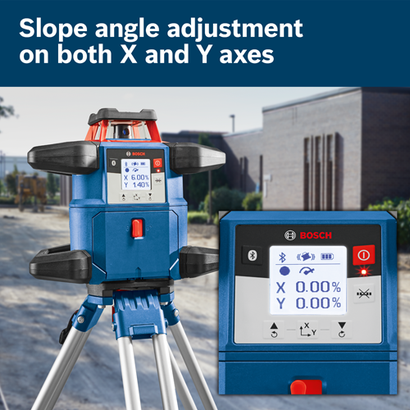

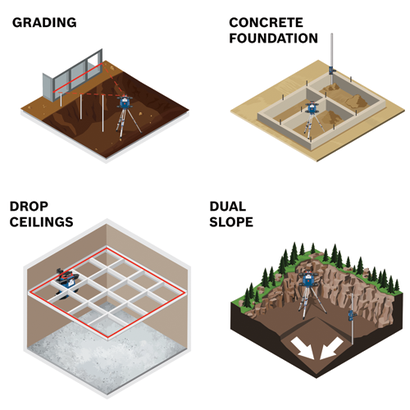

- Dual dial-in slope – allows slope angle adjustment on both the X and Y axes

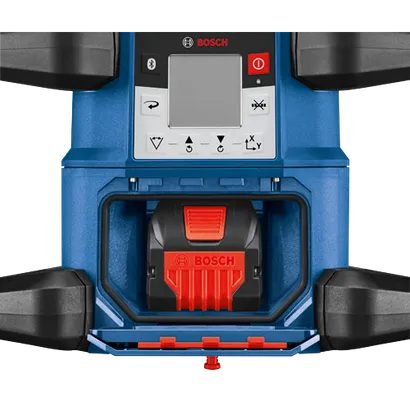

- Dual power source – for extended runtime and option of a 4 Ah CORE18V® battery or a battery adapter with four (D) cell batteries

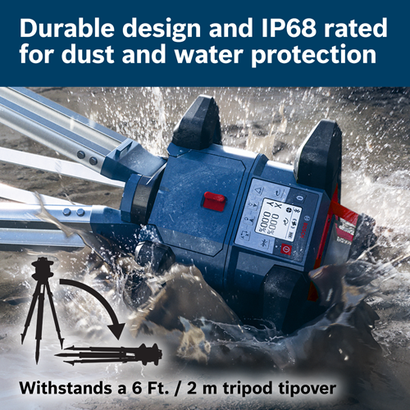

- Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more

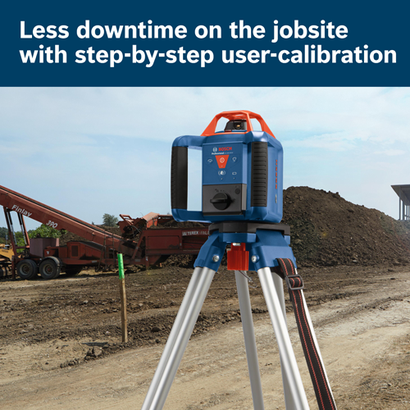

- uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of ±1/16 In. at 100 Ft.

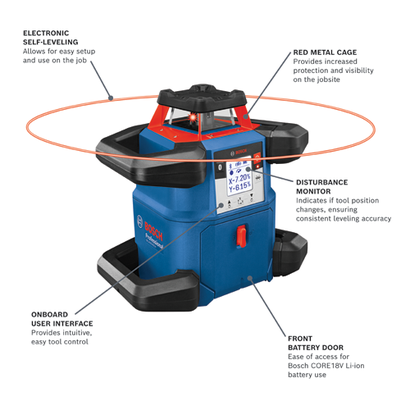

- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
- Comprehensive kit – includes an 18V 4 Ah battery and charger, alkaline battery adapter, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 18V batteries are covered by a three year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 18V chargers are covered by a five year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Battery | Lithium-Ion Battery |
| Height in | 11 " |
| IP Rating | IP 68 |
| Laser Beam Color | Red |
| Laser Diode | 635 nm, < 1mW |
| Length in | 12.8 " |
| Leveling Type | Self-Leveling, Up to 5° |
| Material | Plastic Composite |
| Mount Threading | 5/8-11 |
| Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
| Range | Up to 4,000-ft. |
| Weight | 8.2 lb |
| Width in | 7.4 " |
| Works With | Laser Receivers, LR40, Tripods, BT160, BT170HD, BT300HD, Grade Rods, GR500, GR16, Batteries, GBA18V40, GBA18V80, Chargers, GAL18V-40, GAL18V-160C, GAL18V6-80, BC1880, GAX1218V30 |
| Includes |
(1) GRL4000-80CH 18V REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser (1) LR40 Laser Receiver with Bracket (1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery (1) 18V Battery Charger (1) BA1 Alkaline Battery Adapter (4) D Batteries (2) AA Batteries (1) BT170 Heavy-Duty Aluminum Tripod (1) GR13 13 Ft. Grade Rod (1) Carrying Case |
GRL4000-80CHK Professional: Further information
Product Highlights
The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal Rotary Laser Kit with uCAL user-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V® 4 Ah battery, providing extended runtime. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V® Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of ±1/16 In. at 100 Ft. and a range of up to 4,000 Ft. with laser receiver. The comprehensive kit includes an 18V 4 Ah battery and charger, alkaline battery adapter, laser receiver, aluminum tripod, sturdy grade rod, and durable hard carrying case.
