GRL2000-40HVK Professional
Rotary Lasers

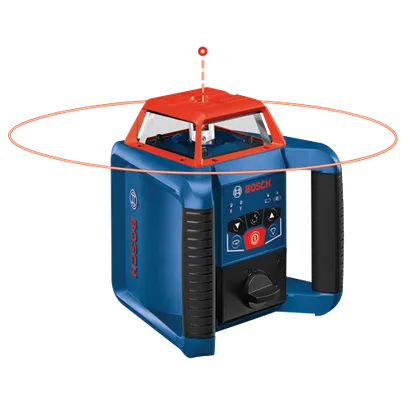

REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit
- Complete kit – features a laser receiver, tripod, grade rod, remote control, wall mount and all-in-one hard carrying case
- All-in-one hard carrying case – designed to hold included accessories: receiver with bracket, tripod, grade rod and more

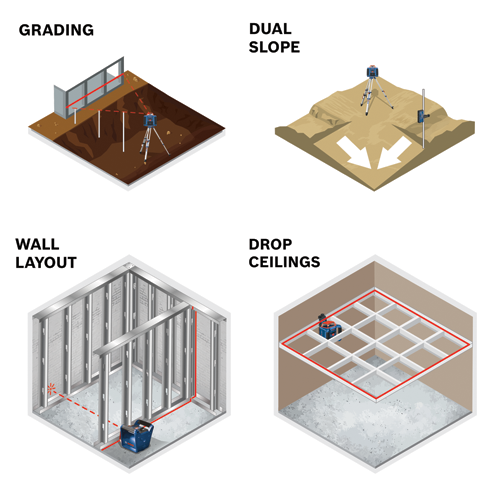

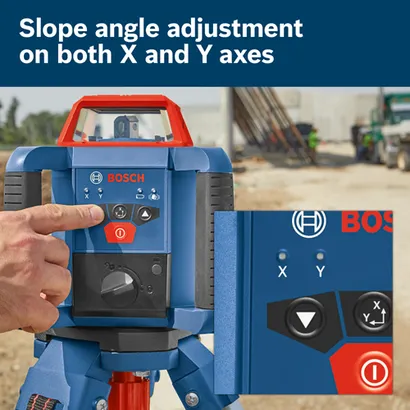

- Manual Dual Slope – allows the user to adjust the slope angle on the laser on both the X- and Y-axes

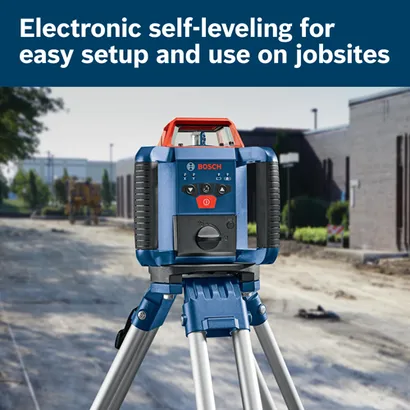

- Electronic self-leveling – allows for easy setup and use on the job

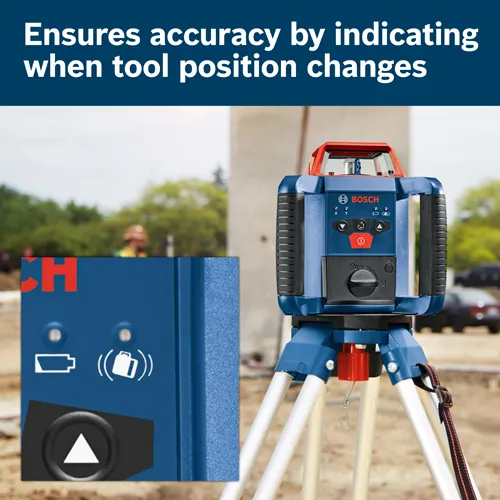

- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
- Reliable accuracy – delivers ±1/16 In. accuracy at 100 Ft.
- Long working-range capability – provides up to 2,000 Ft. working range

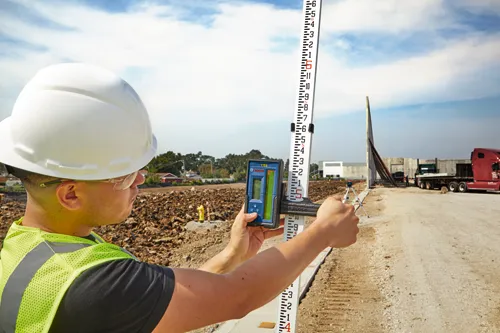

- Laser receiver with mounting bracket – allows for easy-to-read LCD dual display and easy attachment to leveling rod
- Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
- Lightweight aluminum tripod – features quick-clad release on legs and durable finish
- Robust design – features cage overmold and two large easy-to-grip carrying handles for convenience and additional drop protection
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Height in | 7.5 " |
| IP Rating | IP 56 |
| Laser Beam Color | Red |
| Laser Diode | Class 3R <5mW @ 630 ~ 670nm |
| Length in | 7 " |
| Leveling Type | Self-Leveling, Up to 5° |
| Material | Plastic Composite |
| Mount Threading | 5/8-11 |
| Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
| Range | Up to 2,000-ft. |
| Weight | 3.9 lb |
| Width in | 6.7 " |
| Works With | Laser Receivers, LR20, Tripods, BT160, BT170HD, BT300HD, Grade Rods, GR500, GR16, Mounts and Positioning Devices, WM4 |
| Includes |

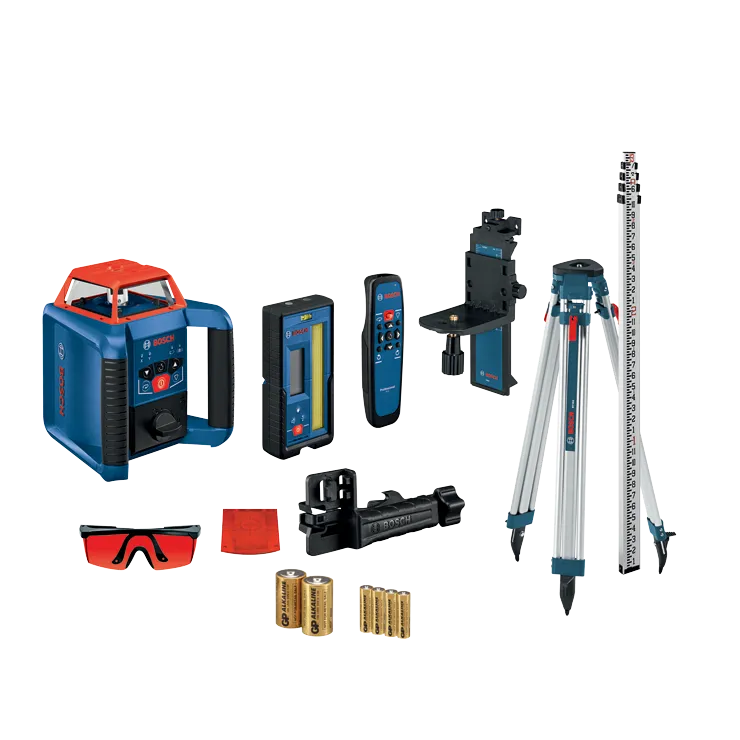

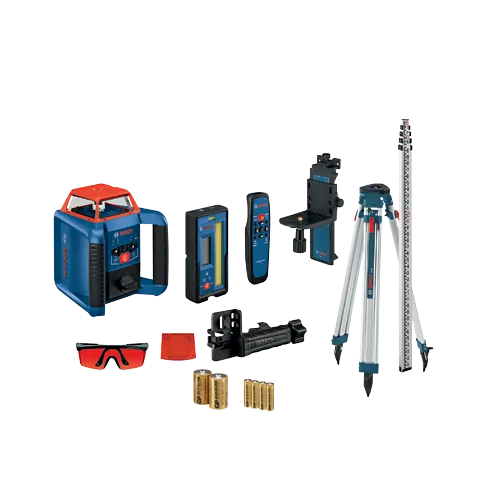

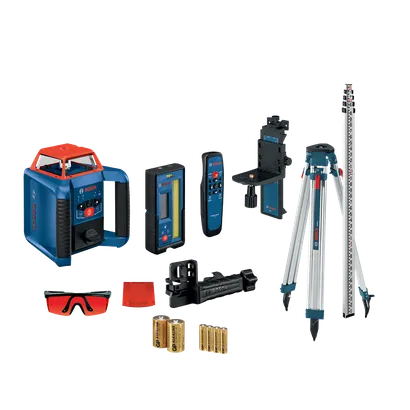

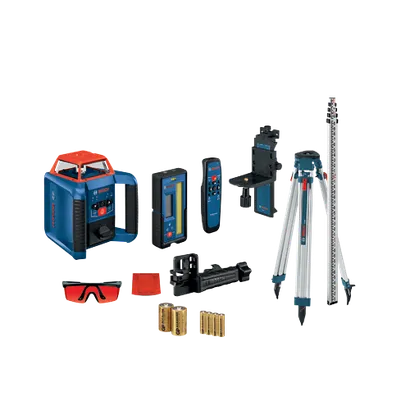

(1) GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser (1) LR20 Laser Receiver with Bracket (1) BT160 Aluminum Contractor Tripod (1) GR13 13 Ft. Grade Rod (1) Red Laser Glasses (1) Red Target Plate (1) RC4 Remote Control (1) WM4 Wall Mount (4) AA Batteries (2) D Batteries (1) All-In-One Hard Carrying Case |
GRL2000-40HVK Professional: Further information
Product Highlights

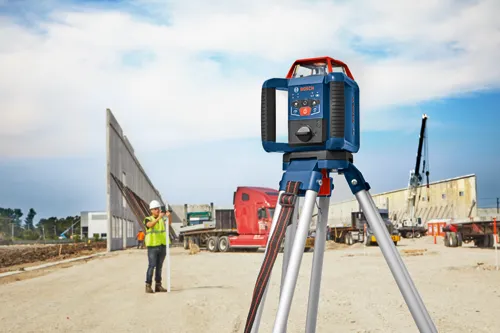

The Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit delivers a comprehensive solution for precise outdoor and indoor leveling. Manual Dual Slope allows the user to adjust the slope angle on the laser on both the X- and Y-axes. The GRL2000-40HVK features a horizontal/vertical self-leveling laser, suitable for leveling and aligning applications. This kit contains an all-in-one hard carrying case designed to hold all included accessories. The REVOLVE2000 rotary laser delivers ±1/16 In. accuracy at 100 Ft. and a working range of up to 2,000 Ft. with the included receiver. The laser’s electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a red metal cage for durability. Easy to use, the kit includes an all-in-one solution includes an LR20 laser receiver with mounting bracket, aluminum tripod, RC4 remote control, WM4 wall mount and sturdy grade rod.
