GNH18V-16MAN Professional
Nailers & Staplers

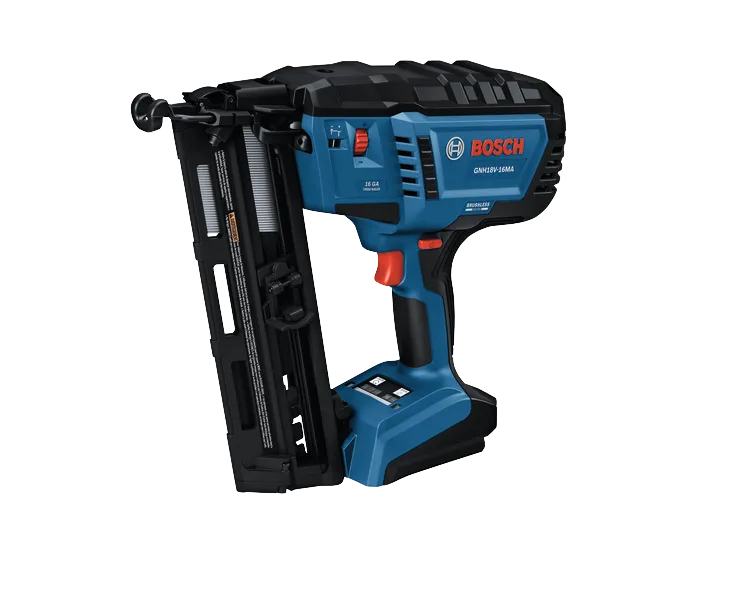

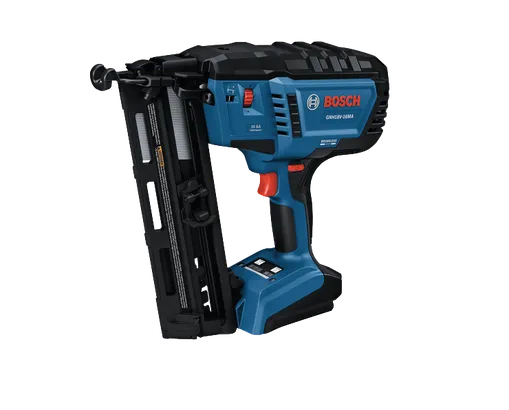

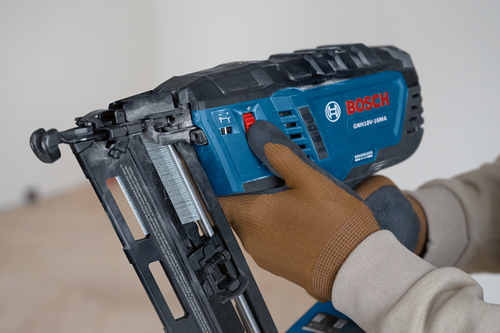

18V Brushless 16-Gauge Angled Finish Nailer (Bare Tool)

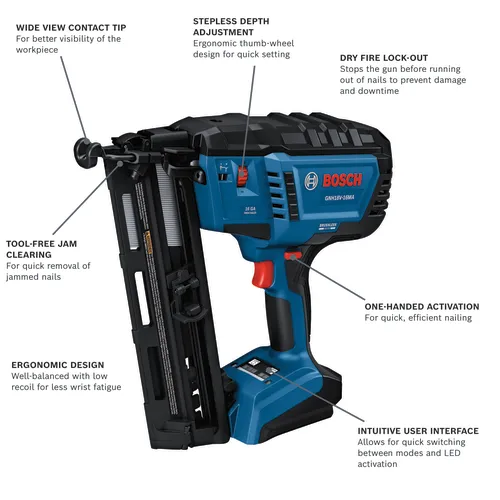

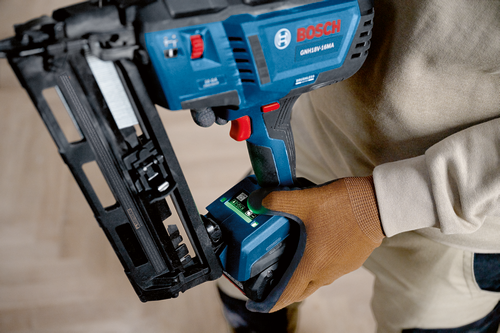

- One-handed activation – helps streamline work and avoid interruption
- Wide view contact tip – provides superior line of sight and precise positioning of nails
- Easy depth adjustment – with ergonomic thumb wheel for quick, stepless changes
- Intuitive user interface – allows for quick toggling between single and bump-fire modes, activates the LED light and delivers service alerts
- Low recoil - for enhanced comfort and control
- Pneumatic-like performance - provides unmatched productivity gains by eliminating the need for compressors and hoses
- Extended productivity - fasten up to 1,600 nails per charge with a CORE18V 4 Ah battery (sold separately)
- Tool-free jam clearing – to quickly remove stuck nails
- Double LED – illuminates the work area for added accuracy
- Dry-fire lockout – helps prevent material damage by stopping the tool when down to the last five nails
- Brushless motor – for efficient power to consistently sink 16-gauge angled finish nails ranging from 1-¼ in to 2-½ in
- Flywheel design – delivers consistent driving power, ensuring reliable performance from start to finish
- Integrated belt hook – right or left side mount for easy portability and storage

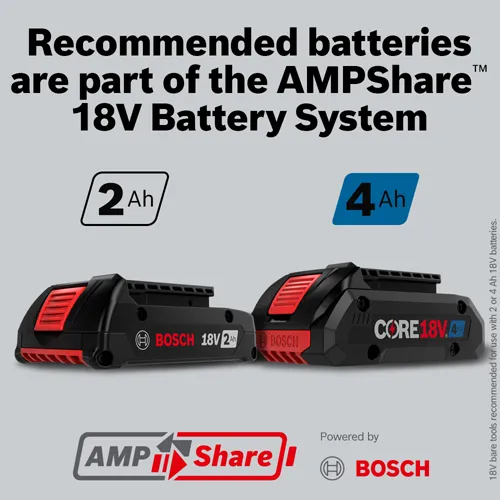

- AMPShare™ system – battery system designed to be multi-brand compatible across many cordless products to make managing your workday easier
- AMPShare™ system compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five-year limited warranty for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Height in | 11.1 " |
| Length in | 13.3 " |
| Weight | 6.6 lb |
| Width in | 3.8 " |
| Works With | GNH18G200GV, 1-1/2" 20° 16 ga Finish Nails – Galvanized, GNH16G175GV, 1-3/4" 20° 16 ga Finish Nails – Galvanized, GNH16G200GV, 2" 20° 16 ga Finish Nails – Galvanized, GNH16G225GV, 2-1/4" 20° 16 ga Finish Nails – Galvanized, GNH16G250GV, 2-1/2" 20° 16 ga Finish Nails – Galvanized, GNH16G125GV, 1-1/4" 20° 16 ga Finish Nails – Galvanized |
| Includes | (1) Bosch GNH18V-16MA 18V Brushless 16-gauge Angled Finish Nailer |
GNH18V-16MAN Professional: Further information
Product Highlights

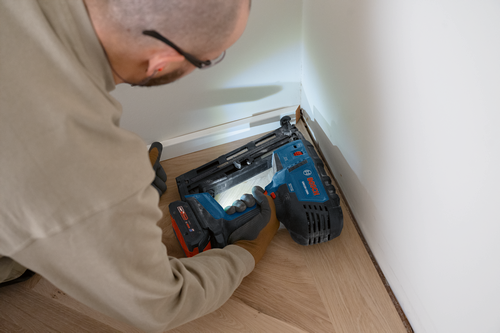

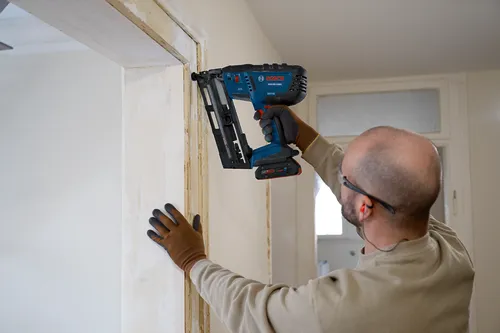

The Bosch GNH18V-16MA 18V Brushless 16-gauge Angled Finish Nailer delivers power and precision in a cordless solution. Compact and ergonomically designed, the 16-gauge angled finish nailer operates at a 20-degree angle giving workers the flexibility to access tight spaces, while also helping reduce worker fatigue. The efficient, brushless motor delivers the power to consistently sink 16-gauge angled finish nails ranging from 1-¼ In. to 2-½ In. which makes it ideal for fastening interior trims, crown moldings, baseboards, window and door casings and other dense wood applications. The 16-gauge finish nailer features an angled magazine with a capacity of 105 nails. When paired with a CORE18V 4 Ah battery (sold separately), it can fasten up to 1,600 nails per charge, ensuring extended productivity. One-handed activation simplifies operation for quick and hassle-free nailing that is suitable for both right- and left-handed users. Equipped with a large viewing window and a no-mar contact tip, the 16-gauge angled finish nailer provides superior line of sight, helping minimize costly mistakes by giving workers improved sight of the workpiece while in use. The dry-fire lockout feature automatically stops operation when down to the last five nails. This not only prevents blank firing but also safeguards the workpiece from potential damage. Make easy and precise adjustments to the depth setting with the ergonomic thumb wheel. Additionally, downtime is minimized as jammed nails can be quickly cleared through a tool-free release mechanism while on the job. An intuitive user interface allows for easy toggling between single and bump-fire modes, turns the LED light on and off, and informs the worker of scheduled maintenance of the tool. An integrated heavy-duty belt hook provides easy portability and storage between tasks.
