GLM165-27CGL Professional
Laser Measures

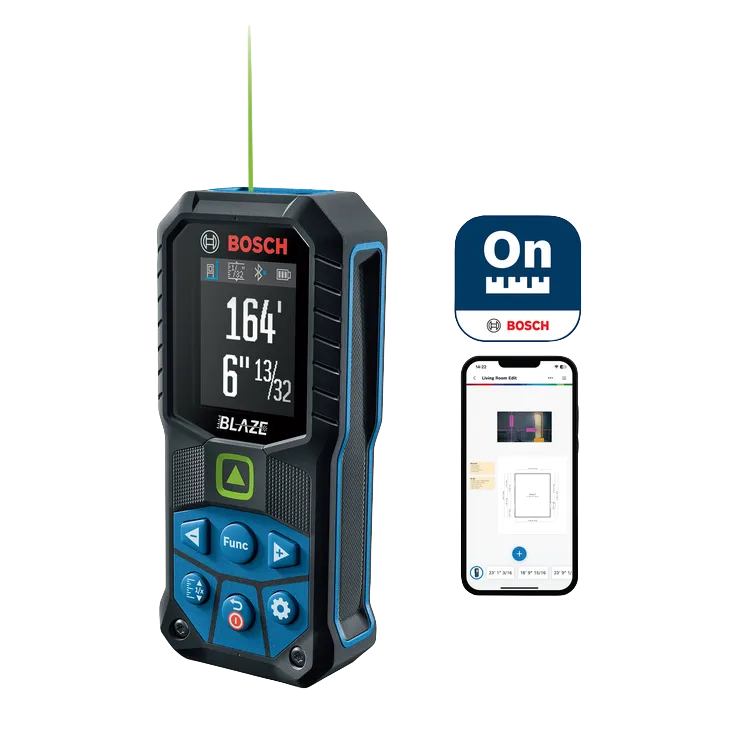

BLAZE™ Connected Green-Beam 165 Ft. Laser Measure with (1) 3.7V Lithium-Ion 1.0 Ah Battery

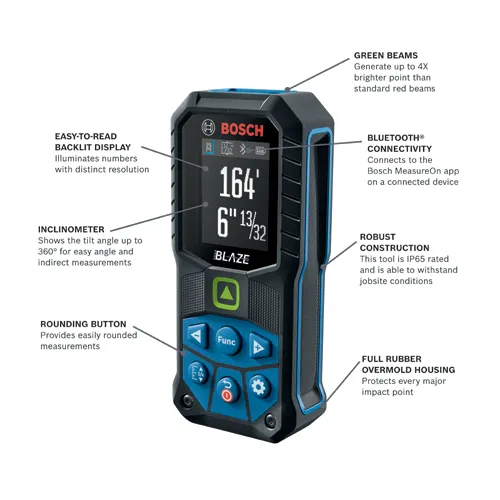

- 165 Ft. green-beam laser measure – features an easy-to-read color display, great accuracy and an inclinometer

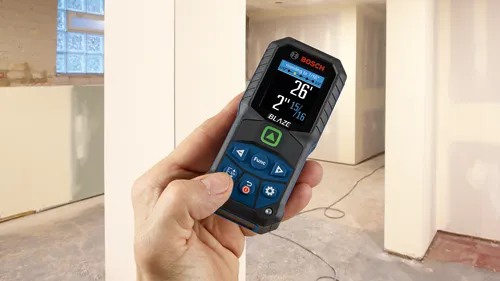

- Easy-to-read backlit color display – illuminates numbers with distinct resolution, for work in low-light or no-light conditions

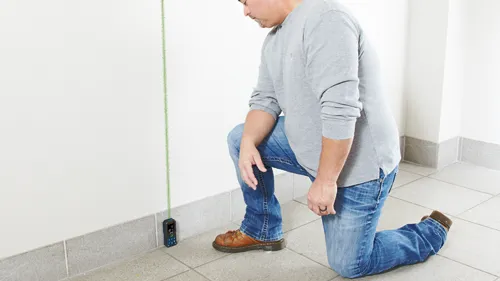

- Green-beam laser – generates a point/dot that’s up to 4X brighter than standard red beams
- Accuracy and long-range measuring – provides accuracy up to +- 1/16 In.** and measures up to 165 Ft. ** Subject to accuracy deviation on stakeout functionality for products with certain date codes. See “Notes” in Technical Data below for details

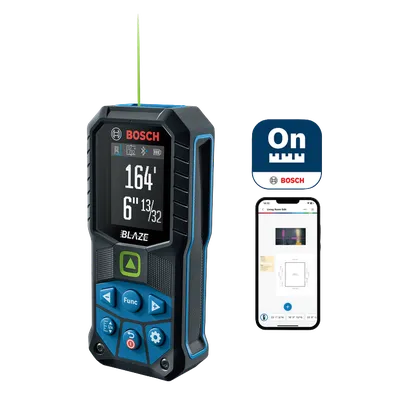

- Bluetooth® Smart 4.2 Technology – allows measurements to be digitally transferred to a smart phone or tablet using the free Bosch MeasureOn app
- Full rubber overmold housing – helps protect every major impact point, with a design similar to a roll cage
- Jobsite tough – laser is IP65 rated and is able to withstand jobsite conditions

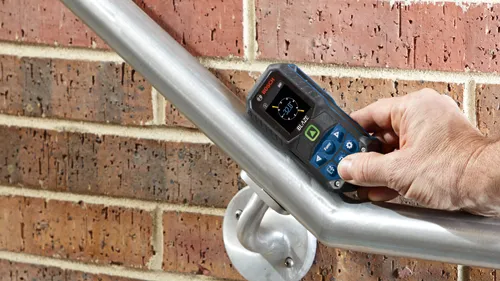

- Inclinometer – shows the tilt angle up to 360° for easy angle and indirect measurements
- Default real-time measurement mode – immediately provides accurate measurement that automatically adjusts closer to or farther from the target
- Add/subtract measurements – allows the user to add or subtract measurements
- Multiple measuring features – calculates distance, area, volume and indirect measurements
- Rounding button – rounds the measurement to the fraction that best suits the application
- Haptic feedback – vibrates tool for measuring confirmation on loud jobsites
- Belt clip – allows convenient storage on jobsite
- Free-to-download and use MeasureOn app - provides clear digital project overview, including floor plans, measurements, photos and notes
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|

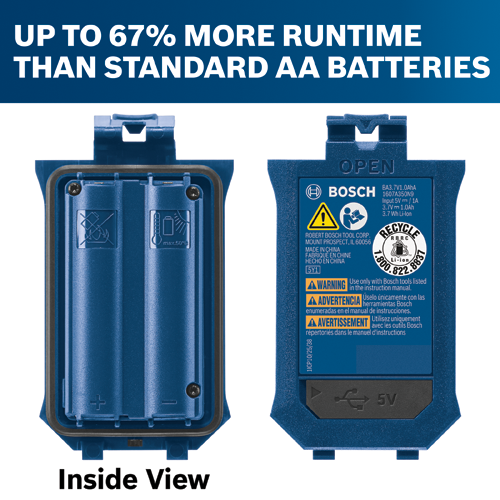

| Battery | GLM-BAT – 3.7V 1.0 Ah Lithium-Ion Battery |
| Connected | Yes |
| Height in | 4.7 " |
| IP Rating | IP 65 |
| Laser Beam Color | Green |
| Length in | 2.1 " |
| Measuring Accuracy | Measuring Accuracy: +/- 1/16-in; Stakeout Accuracy*: +/- 1/2-in |
| Range | Up to 165-ft. |
| Weight | 0.2 lb |
| Weight (lbs.) | 0.22 |
| Width in | 1.2 " |
| Works With | Battery, GBA37V10 |
| Includes |
(1) GLM165-27CG BLAZE™ Connected Green-Beam 165 Ft. Laser Measure (1) Belt Clip (1) GBA37V10 3.7V Lithium-Ion 1.0 Ah Battery (1) Pouch |
GLM165-27CGL Professional: Further information
Product Highlights
The Bosch BLAZE™ GLM165-27CGL uses green-beam technology, which generates a point/dot up to 4X brighter than standard red beams. The inclinometer shows the tilt angle up to 360° for easy angle and indirect measurements. The laser has accuracy up to ±1/16 In., plus it includes a rounding button that rounds the measurement to the fraction that best suits the application and haptic feedback for loud jobsites. The digital laser measure also offers Bluetooth® functionality, so users can digitally transfer measurements to a smartphone or tablet through the free MeasureOn app. It also has full rubber overmold housing, designed to be similar to a roll cage. It has a rechargeable Li-ion battery for extended runtime. It is IP65 rated and has an ergonomic design for better grip. It includes 11 different measuring functions, including real-time length, length, area, volume and indirect functions, and addition/subtraction capability.
