Plane Lasers

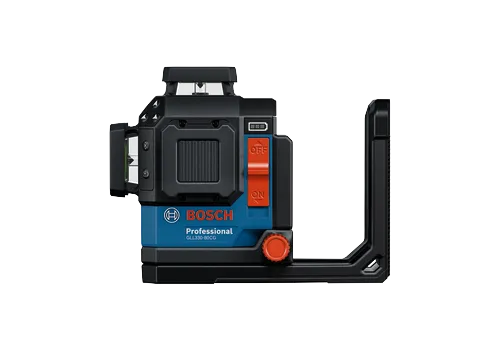

GLL330-80CGN Professional

Plane Lasers

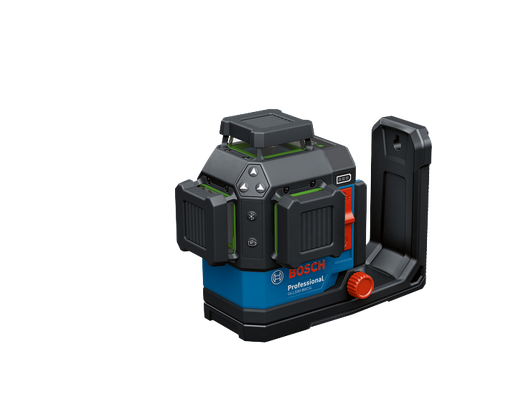

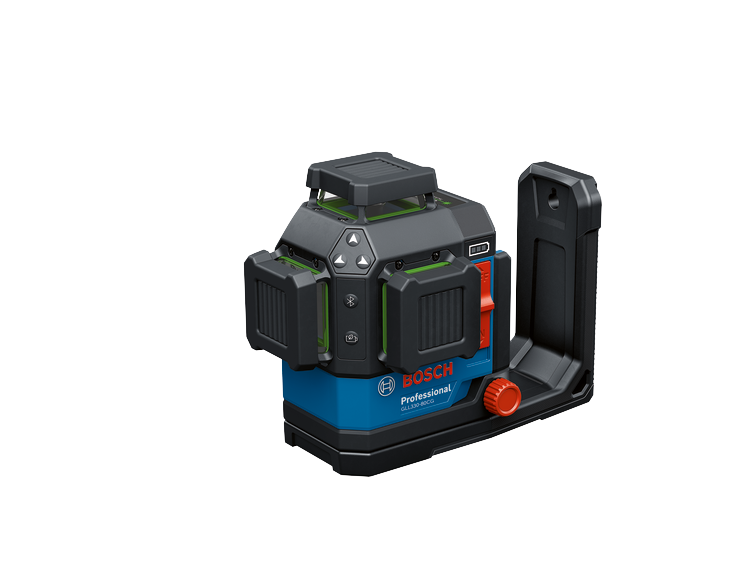

18V 360º Connected Green-Beam Three-Plane Leveling and Alignment Laser

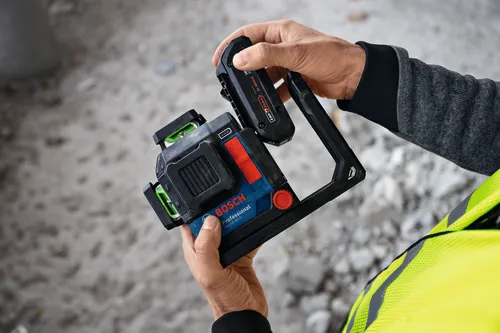

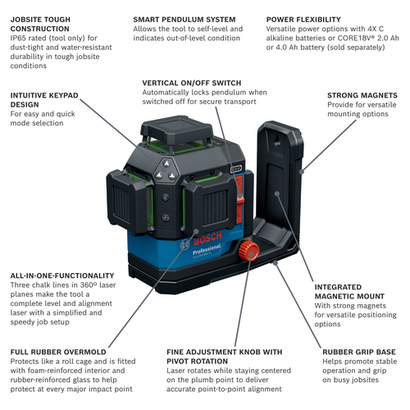

  • Power flexibility – works with 4X C Cell alkaline batteries or a CORE18V® 2.0 Ah or 4.0 Ah battery (sold separately) for less downtime on the job
  • Jobsite tough construction – IP65 rated (tool only) for dust-tight and water-resistant durability in tough jobsite conditions

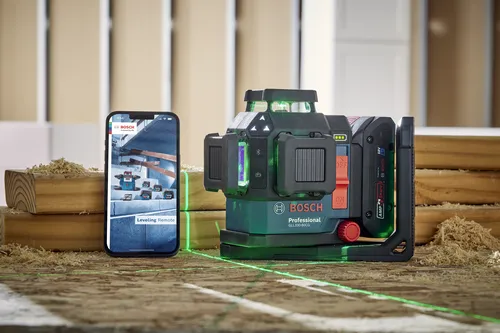

  • Bluetooth® connectivity – allows set-up of the laser from across the room using paired smartphone and the Bosch Leveling Remote App
  • Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life

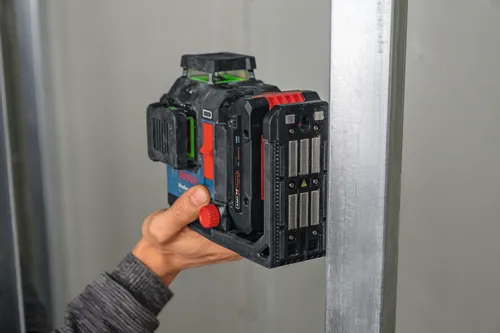

  • Integrated magnetic laser mount – positions and mounts with magnets or threaded mounts with fine adjustment pivot for fast and precise alignment
  • Bright green-beam laser – projects up to 4X brighter than standard red beams
  • Power-saving mode – helps to increase efficiency and extend battery life by adjusting brightness of the laser

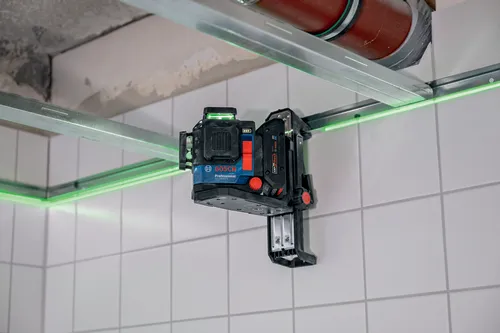

  • All-in-one functionality – three chalk lines in 360º laser planes – one horizontal and two vertical, make the tool a complete level as well as an alignment laser with simplified and speedy job setup
  • Bright, thin lines – with 115 Ft. range that level within 1/8 In. accuracy at 30 Ft. distance
  • Smart Pendulum System – self-levels, indicates out-of-level condition and locks when switched off for secure transport
  • Receiver compatible – for further range extension to 400 Ft. measured at the horizontal line at 45º and 225º (sold separately)
  • ¼ In. and 5/8 In. threaded mount – for secure tripod attachment
  • Full rubber overmold housing – helps protect every major impact point, with a design similar to a roll cage
  • Rubber grip base – provides stable operation and grip in challenging work environments
  • Brightness adjustment – for greater control and versatility

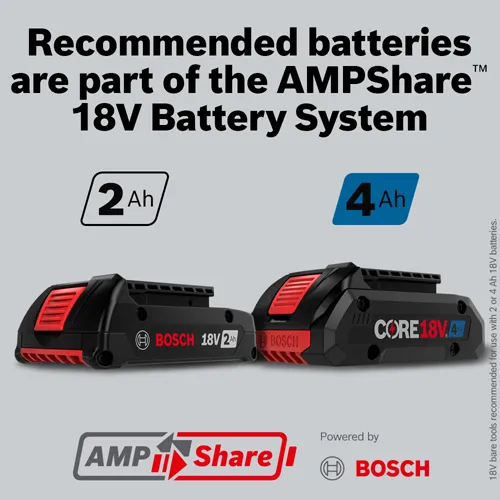

  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

Functions & key features

Integrated multipurpose laser mount with fine adjustment that pivots around point.
 App for convenient control of compatible Bosch line, combi, and rotary lasers.
Working range up to 400 Ft. with optional receiver.
IP 65 - Dust tight and protected against water jets from any direction.​
Power flexibility - works with Bosch's 4.0 or 2.0 Ah CORE18V® battery or four C Cell  batteries.​

GLL330-80CGN Professional

Technical data

The most important data

Connected Yes
Height in 5.125 "
IP Rating IP 65
Laser Beam Color Green
Laser Diode <10 mW @ 500 nm -540 nm, Class 2
Length in 19.875 "
Leveling Type Self-Leveling, Up to 4°
Material Plastic Composite
Mount Threading 1/4-20, 5/8-11
Operating Temperature 14° F / -10° C up to 104° F / 40° C
Range 115 ft. without receiver, 400 ft. with receiver
Weight 8.25 lb
Weight (lbs.) 8.25
Width in 16.125 "

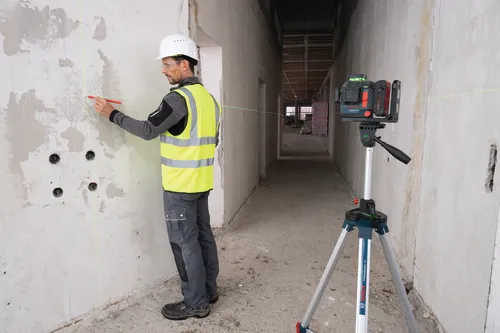

Works With Laser Receivers, LR8, Tripods, BT250, Telescoping Pole System, BP350, Telescoping Leveling Rods, GR 16, GR500, Mounts and Positioning Devices
Includes (1) GLL330-80CGN 18V 360º Connected Green-Beam Three-Plane Leveling and Alignment Laser
(1) BA18-C Alkaline Battery Adapter
(1) DK20 Ceiling Clip
(1) Laser Target Plate
(1) Hard Carrying Case

GLL330-80CGN Professional: Further information

Product Highlights

The Bosch GLL330-80CGN 18V 360º Connected Green-Beam Three-Plane Leveling and Alignment Laser provides an all-in-one level and alignment solution with incredible power flexibility. Versatile power options help maximize productivity and keep the laser up and running, with the ability to use with 4X C Cell Alkaline batteries or a CORE18V® 2.0 Ah or 4.0 Ah battery (sold separately). Built-in VisiMax™ technology monitors temperature and power consumption to deliver the brightest line for the job, optimize energy efficiency and provide long-term tool reliability. The leveling laser emits three bright green-beam laser chalk lines in 360° laser planes – one horizontal and two vertical for high-visibility and fast job setup from one initial point. Full rubber overmold housing with a foam-reinforced interior helps protect the level at every major impact point. The laser is IP65 rated (tool only) for dust-tight and water-resistant durability in tough jobsite conditions. An integrated multipurpose magnetic laser mount with fine adjustment and pivot rotation provides accurate point-to-point alignment for enhanced versatility. The laser has a working range of up to 115 Ft. and the bright, vivid thin lines provide an accuracy of 1/8 In. at 30 Ft. Further extend the range to 400 Ft. (measured at the horizontal line at 45º and 225º) with the level’s receiver compatibility (sold separately). Equipped with a Smart Pendulum System, the tool self-levels, will indicate any out-of-level condition, and then locks when switched off for secure transport. Fully featured with Bluetooth® connectivity, manage the setup of the laser from across the room with a paired smartphone and the free Bosch Leveling Remote App. Power-saving mode and brightness adjustment options help maximize battery life. Keep a handle on the laser with the rubber grip base and easily position using the strong magnets or ¼ In. and 5/8 In. threading mounts.
