GLL3-330C Professional
12V Max Line Lasers
12V Max 360⁰ Connected Three-Plane Leveling and Alignment-Line Laser Kit with (1) 2.0 Ah Battery
- Ultimate all-in-one leveling and alignment laser – facilitates one-person job setup with connected capability, dual-power technology and long working range
- Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life

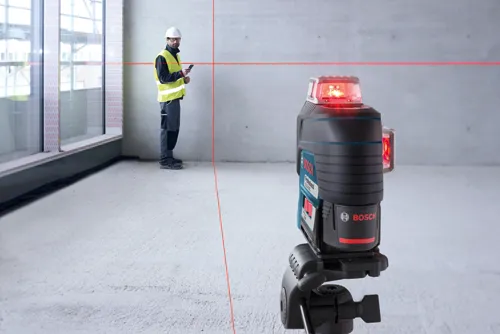

- Bluetooth® connectivity – controls the operation of the laser from across the room with their smart phone and the free Bosch Leveling Remote App
- Bosch Leveling Remote App – free to download and free to use, this app turns the leveling laser and receiver mode on and off, select the laser planes, adjust line visibility and provide battery and level alerts
- Dual power technology – utilizes the included Bosch 12V Max Lithium-Ion battery or four AA alkaline batteries
- Upgraded diode with a brighter beam – delivers a visible range of up to 200 Ft. diameter
- Pulse mode – extends the working range up to 330 Ft. (diameter) and/or in bright lighting, using the optional LR 6 or LR8 receiver
- Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°
- Manual mode – locks lines for use at any angle
- BM 1 positioning device – clips to multiple surfaces, stands on floor with retractable feet and mounts to drywall or wood with screws for quick and easy setup

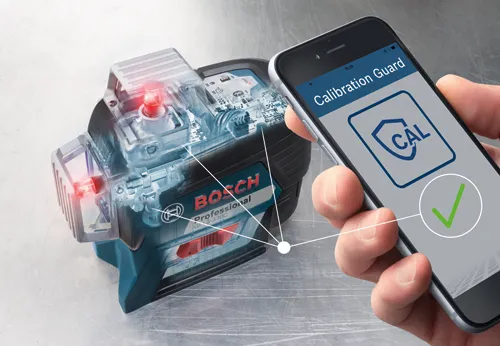

- CAL Guard – monitors the level laser for calibration trouble, such as drops or high heat
- Jobsite tough over-molded construction – withstands rainy or dusty jobsite conditions, and is IP54 rated
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 12V Max batteries and chargers are covered by a one year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Connected | Yes |
| Height in | 5.8 " |
| IP Rating | IP 54 |
| Laser Beam Color | Red |
| Laser Diode | Class II 630 – 650 nm |
| Length in | 6.4 " |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic Composite |
| Mount Threading | 1/4-20, 5/8-11 |
| Operating Temperature | 14° F / -10° C up to 104° F / 40° C |
| Range | Up to 200-ft. diameter |
| Weight | 2 lb |
| Width in | 3.3 " |
| Works With | Laser Receivers, LR 6, LR8, Tripods, BT160, BT170HD, BT300HD, BT 150, Telescoping Pole System, BP350, Telescoping Leveling Rods, GR 16, GR500, Mounts and Positioning Devices, WM 4, BM 1, BM3, LB10, RM 2, Batteries, BAT414, GBA12V60, Chargers, GAL12V-20, GAL12V-40, GAX1218V30 |
| Includes |
(1) GLL3-330C 12V Max 360⁰ Connected Three-Plane Leveling and Alignment-Line Laser (1) 12V Max Lithium-Ion 2.0 Ah Battery (1) 12V Max Lithium-Ion Battery Charger (1) BM 1 Positioning Device (1) Laser Target (1) AA1 Alkaline Battery Adapter (1) Heavy-Duty Pouch (1) Hard Carrying Case |
GLL3-330C Professional: Further information
Product Highlights

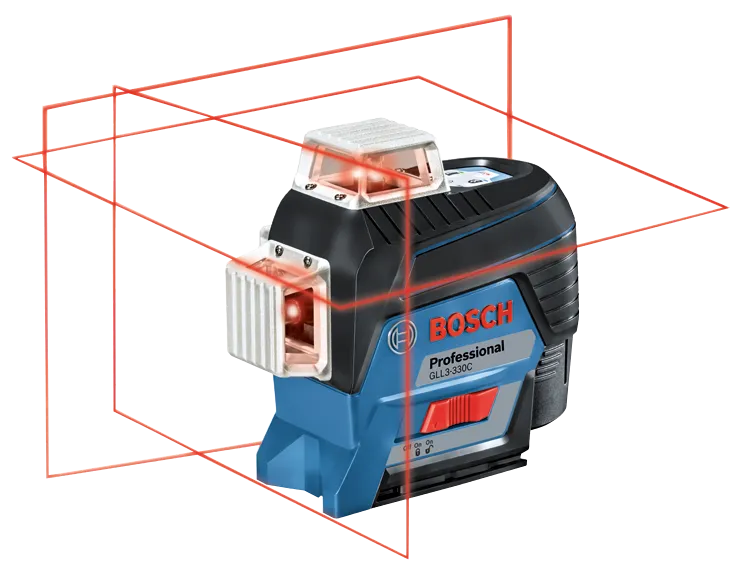

The Bosch GLL3-330C 12V Max 360° Connected Three-Plane Leveling and Alignment-Line Laser provides an all-in-one level and alignment solution for one-person job setup. The leveling laser generates three laser chalk lines in 360° laser planes – one horizontal and two vertical. With Bluetooth® connectivity, users can control the setup of the laser from across the room with their smart phone and the free Bosch Leveling Remote App. The laser offers dual power technology, employed the included Bosch 12V Max Lithium-ion battery for extended runtime, or with four AA alkaline batteries. The layout laser has a working range of up to 200 Ft. diameter, and with pulse mode the range extends up to 330 Ft. (diameter) with the optional LR 6 or LR8 receiver. This laser features VisiMax™ Technology to drive maximum line visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty jobsite conditions.
