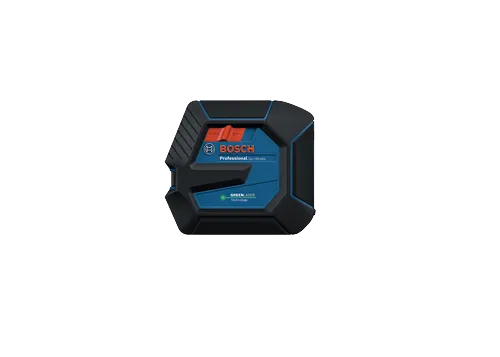

GLL100-42GL Professional
Plane Lasers

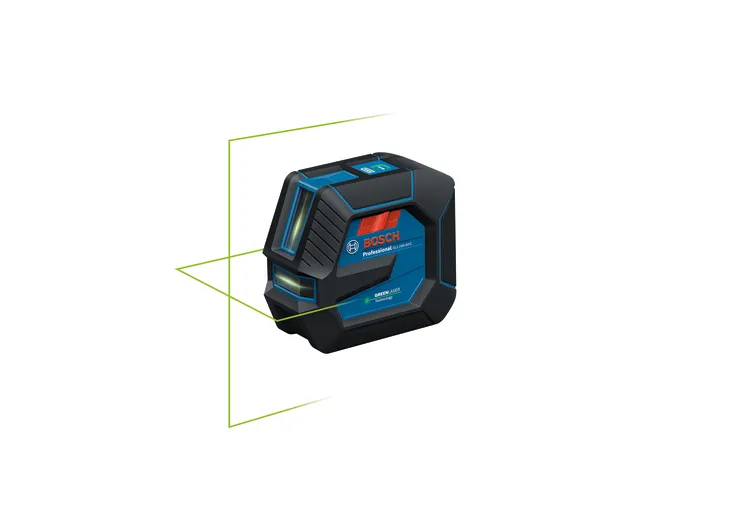

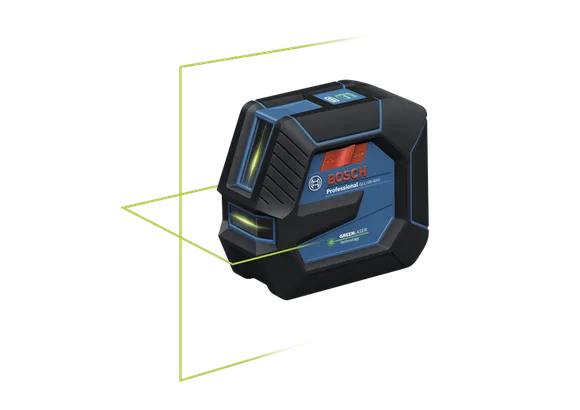

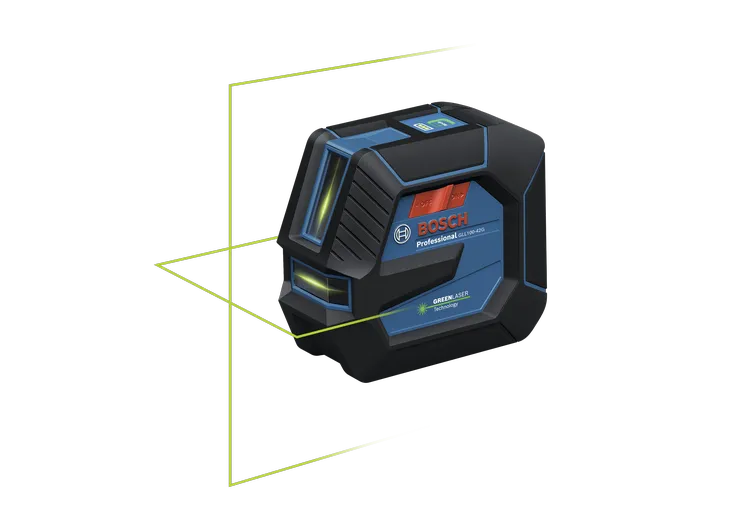

3.7V Green-Beam Self-Leveling Cross-Line Laser with Li-Ion Battery

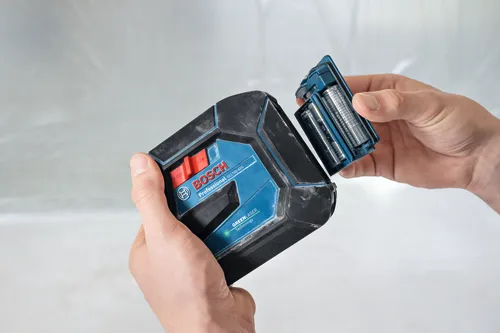

- Power flexibility – works with included rechargeable 3.7V Li-Ion 3.0 Ah battery or AA batteries (not included) for less downtime on the job
- Jobsite tough construction – IP65 rated for dust-tight and water-resistant durability in tough jobsite conditions

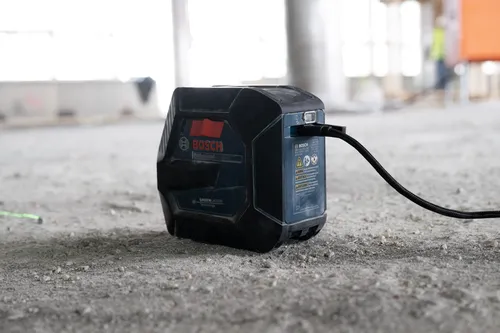

- USB-C charging cord – for quick charging, even while in use
- Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life
- Bright green-beam laser – projects up to 4X brighter than standard red beams
- Outstanding runtime – delivers 8 hours of operation (when using Li-Ion battery) for all-day power

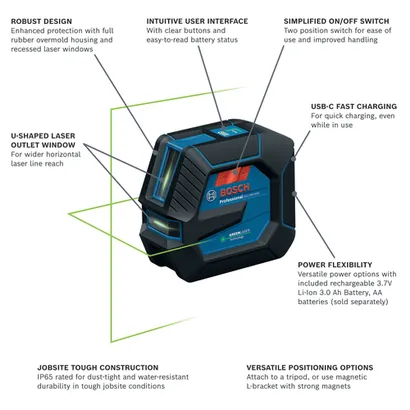

- U-shaped laser outlet window – for wider horizontal laser line reach
- Bright, thin lines – with 100 Ft. range that level within 1/8 In. accuracy at 30 Ft. distance
- Smart Pendulum System – self-levels, indicates out-of-level condition and locks when switched off for secure transport

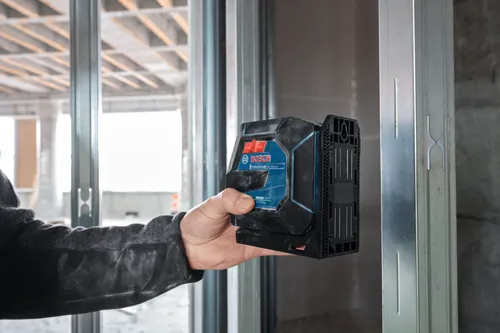

- Magnetic L-bracket – with strong magnets for versatile positioning

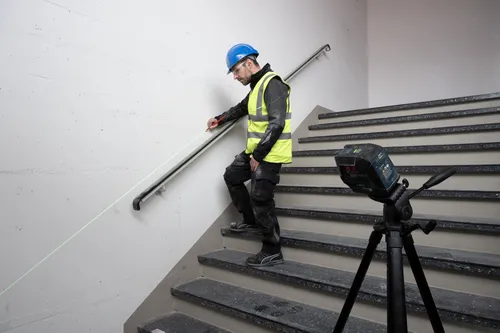

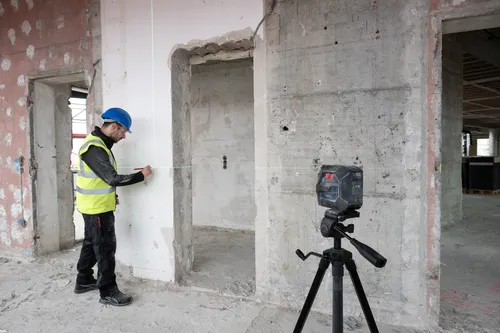

- ¼ In. threading mount – for secure tripod attachment
- Full rubber overmold housing – helps protect every major impact point, with a design similar to a roll cage
- Rubber grip base – provides stable operation and grip in challenging work environments
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Connected | No |
| Height in | 4.75 " |
| IP Rating | IP 65 |
| Laser Beam Color | Green |
| Laser Diode | <10 mW @ 500 nm -540 nm, Class 2 |
| Length in | 13.5 " |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic with over-mold |
| Mount Threading | 1/4-20 |
| Operating Temperature | 14° F / -10° C up to 113° F / 45° C |
| Range | Up to 100-ft. |
| Weight | 4.3 lb |
| Width in | 11 " |
| Includes |
(1) GLL100-42GL 3.7V Green-Beam Self-Leveling Cross-Line Laser (1) GBA37V30 3.7V Lithium-Ion 3.0 Ah Battery (1) Alkaline Battery Adapter (1) Magnetic L-Bracket Mount (1) USB-C Charging Cord (1) Hard Carrying Case |
GLL100-42GL Professional: Further information
Product Highlights
The Bosch GLL100-42GL 3.7V Green-Beam Self-Leveling Cross-Line Laser pairs remarkable power flexibility with green-beam technology to emit lines up to 4X brighter than standard red beams. Use with the included rechargeable 3.7V Li-Ion 3.0 Ah battery or AA batteries (sold separately) for enhanced versatility and longer runtime on the job. The included USB-C cord even provides the option to charge the tool while in use for greater flexibility and efficiency. Built-in VisiMax™ technology monitors temperature and power consumption to deliver the brightest line for the job, optimize energy efficiency and provide long-term tool reliability. Full rubber overmold housing helps protect the level at every major impact point. IP65-rated, the laser can withstand tough, rainy conditions and is dust-tight for enhanced protection. The U-shaped laser outlet window provides a wider horizontal reach of the laser line. With a working range of up to 100 Ft., the bright, thin lines provide an accuracy of 1/8 In. at 30 Ft. Equipped with a Smart Pendulum System, the tool self-levels, will indicate any out-of-level condition, and then locks when switched off for secure transport. Keep a handle on the laser with the rubber grip base and easily position using the strong magnets or ¼ In. threading mount. Complete with an outstanding operating time of 8 hours (using a Li-Ion battery), for all-day power and productivity.
