GKS18V-25GCB14 Professional
Circular Saws

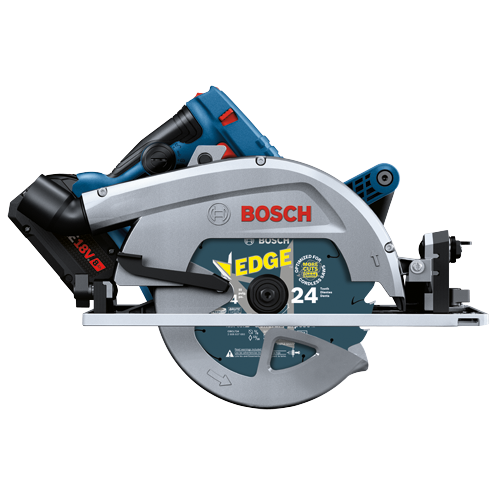

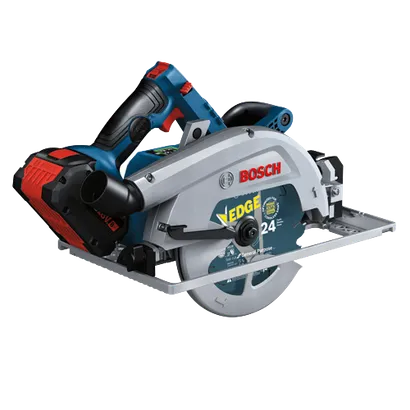

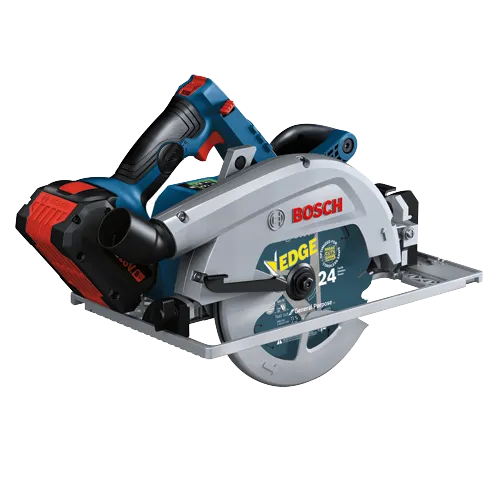

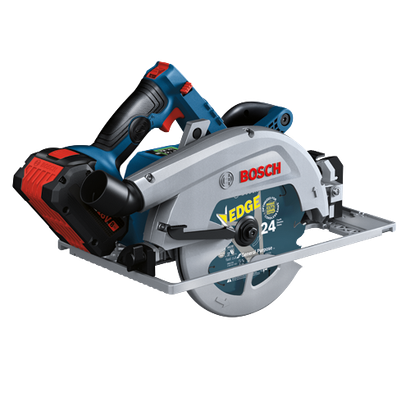

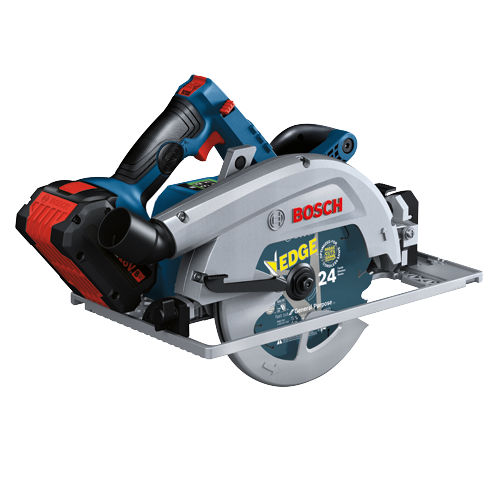

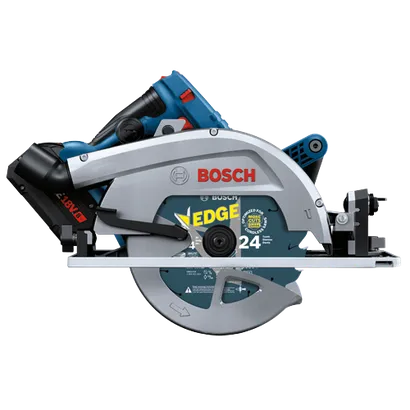

PROFACTOR™ 18V Connected-Ready 7-1/4 In. Circular Saw Kit with Track Compatibility and (1) CORE18V® 8 Ah High Power Battery
- PROFACTOR™ performance – delivers corded performance from an 18V cordless 7-1/4 In. saw
- 2-1/2 In. cut capacity – allows for easy cutting through 2X material across the entire bevel range
- ECO mode – helps get the job done by extending runtime by up to 30%

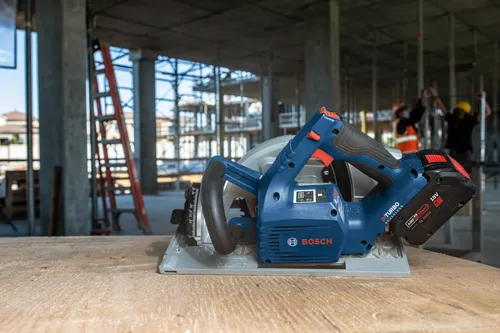

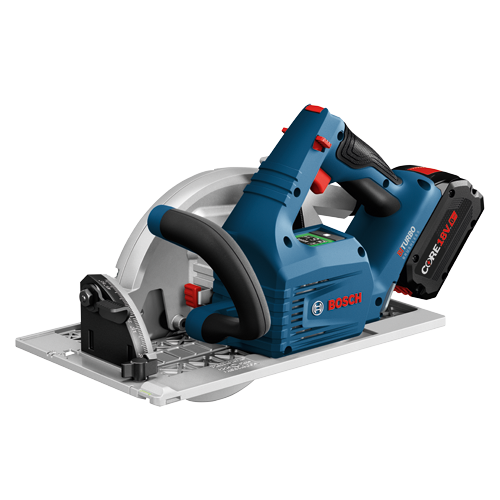

- BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries

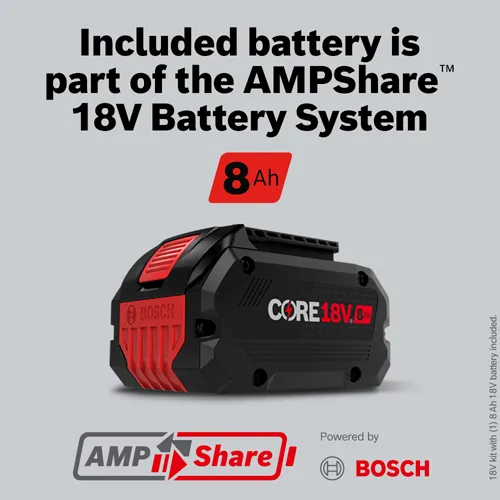

- CORE18V® High Power 8 Ah battery – compatible with Bosch 18V tools and delivers 2x more runtime than GBA18V40
- High-power cells – use enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to transfer more power for a longer time

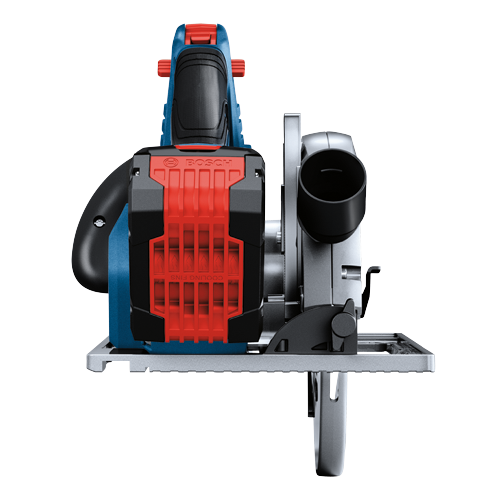

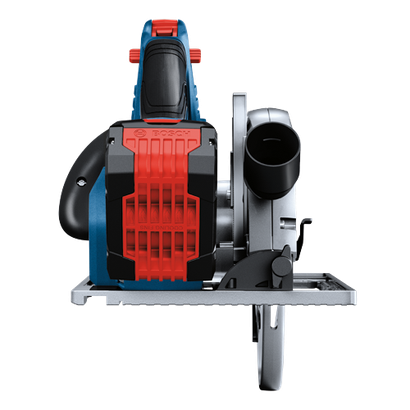

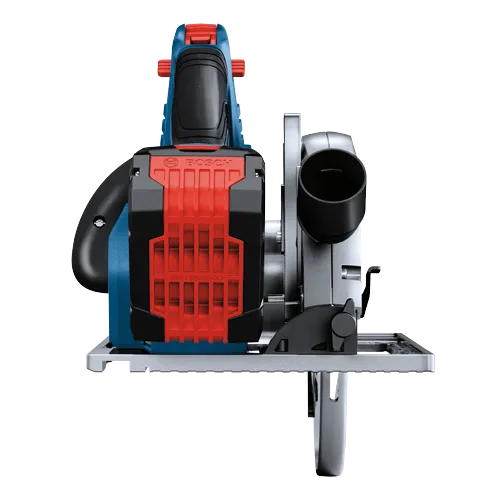

- Bosch-exclusive CoolPack 2.0 technology – provides better cooling than the previous-generation CoolPack system

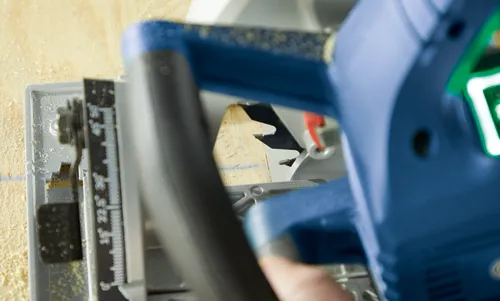

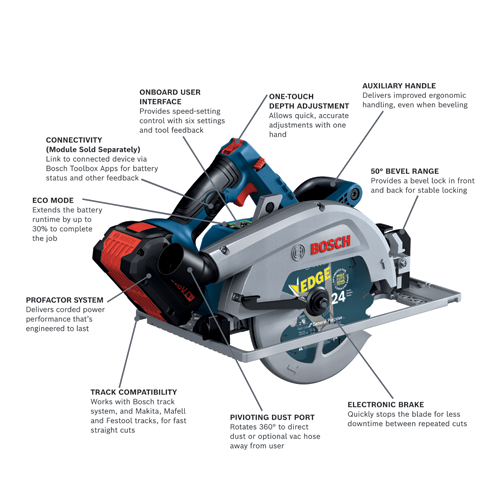

- One-Touch depth-adjustment – allows quick, accurate change with one hand

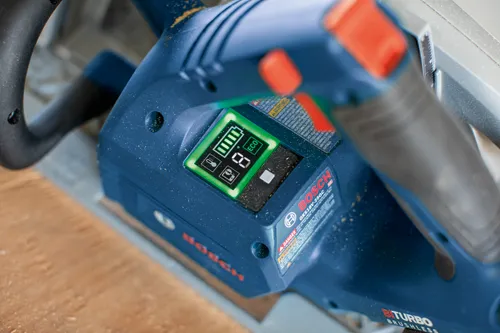

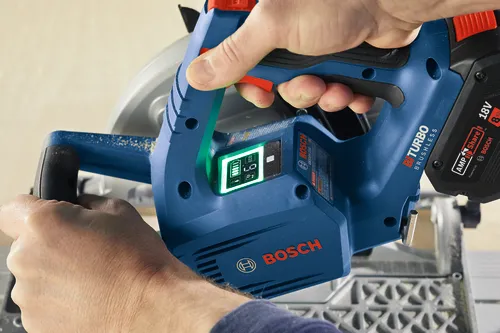

- Onboard user interface – provides speed-setting control with six settings and tool feedback
- Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings and receive detailed feedback
- 50° bevel range – provides bevel locks in both front and back

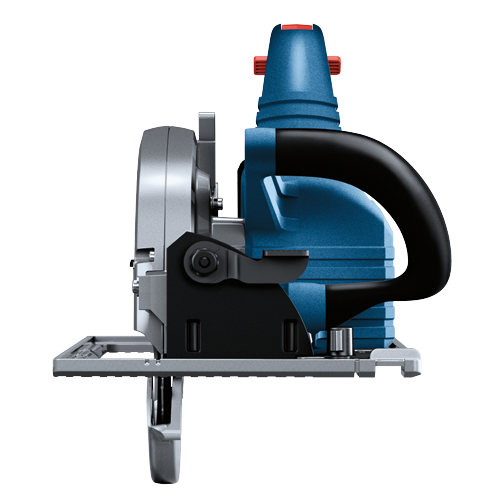

- Auxiliary handle – delivers enhanced ergonomic handling in either hand, even when beveling

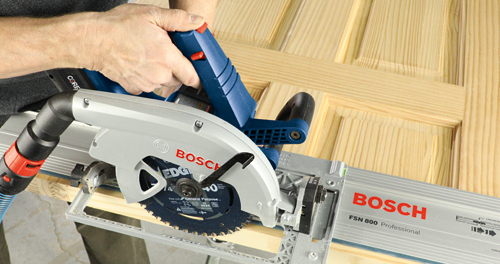

- Track compatibility – for straight cuts fast, the saw is compatible with Bosch as well as select manufacturers’ tracks
- Electronic convenience brake – quickly stops the blade for less downtime between repeated cuts
- Pivoting dust port – rotates 360° directing dust or optional vac hose away from body when saw is held in either hand
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee
Technical data
The most important data |
|
|---|---|
| Arbor Size in | 5/8" |
| Arbor in | 5/8" |
| Battery Chemistry | Lithium Ion |
| Bevel | 0° to 50° |
| Blade Diameter (in) | 7.25 |
| Blade Size | 7-1/4" |
| Case Type | Bag |
| Category | Circular Saws |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Electric Motor Brake | Yes |
| Height in | 11.3 " |
| Length in | 15.9 " |
| Max. Bevel Capacity (°) | 50 |
| Max. Bevel Cut | 50° |
| Max. Depth of Cut at 45 Deg. | 1-13/16" |
| Max. Depth of Cut at 50 Deg. | 1-5/8" |
| Max. Depth of Cut at 90 Deg. | 2-1/2" |
| No Load RPM | 2,500-5,000 |
| Safety / Lock-off | Yes |
| Separate On/Off Speed Control | Yes |
| Tool Level | 5 - Cordless – variable speed high |
| Variable Speed | Yes |
| Weight | 9.5 lb |
| Weight (lbs.) | 9.5 |
| Width in | 9 " |
| Works With | Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Bosch Bluetooth® Connectivity Module, GCY42 (See tool's owner’s manual for this tool's connectivity/app features.), Tracks, FSN800, FSN1100, FSN1600, FSN2100. Also FSN1600X2B Track Kit., Tracks with Shelving Pin Holes, FSN800-32, FS1600-32, Track Miter Guide, FSNWAN, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hose, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024 (VAC002 does not work with GKS18V-25GC), Dust Bag, 160541101V, Circular Saw Rip Fence, GKSRPG |
| Includes |

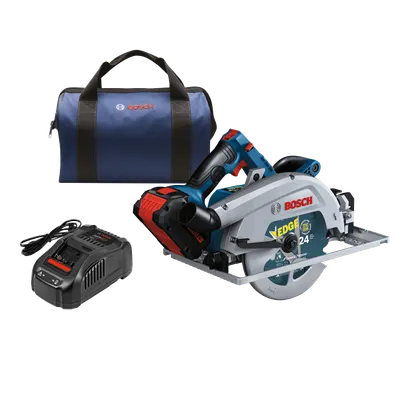

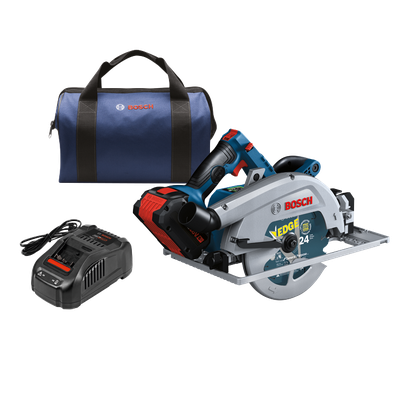

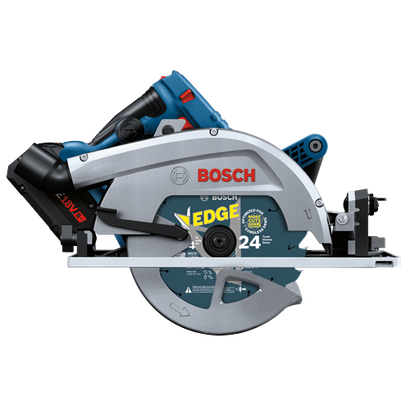

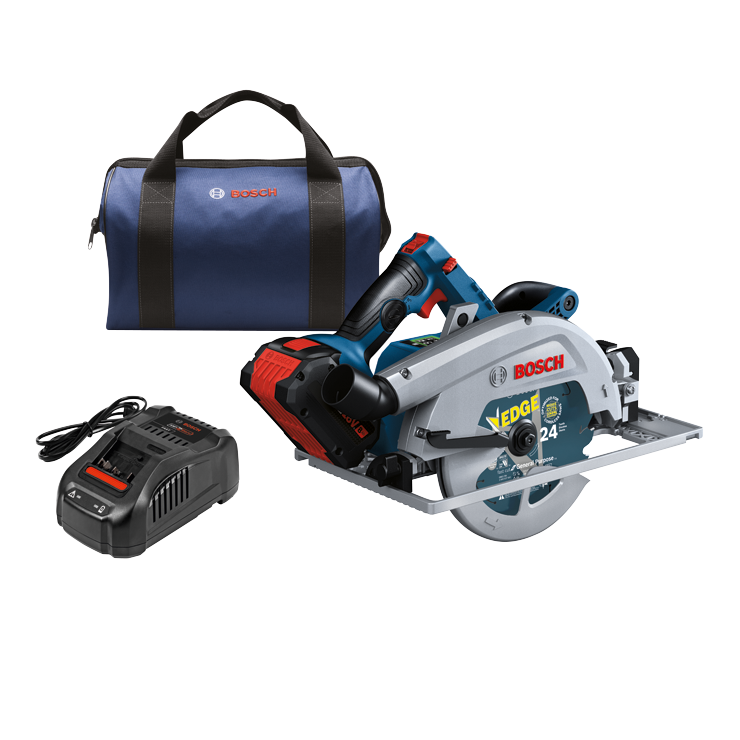

(1) GKS18V-25GC PROFACTOR™ 18V Connected-Ready 7-1/4 In. Circular Saw (1) GBA18V80 18V CORE18V® Lithium-Ion 8.0 Ah High Power Battery (1) 18V Fast Charger (1) 7-1/4 In. 24-Tooth Edge Cordless Circular Saw Blade (1) Hex Wrench (1) Carrying Bag |
GKS18V-25GCB14 Professional: Further information
Product Highlights
This circular saw delivers corded performance from an 18V cordless 7-1/4 In. saw. The Bosch GKS18V-25GC 18V 7-1/4 In. BITURBO Brushless™ Circular Saw has a 2-1/2 In. cut capacity, easily cutting through 2X (“two by”) material across the entire bevel range. This circ saw is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. Its ECO mode helps get the job done by extending runtime by up to 30%. One-Touch depth-adjustment allows quick, accurate change with one hand. An onboard user interface provides speed-setting control with six settings and tool feedback. The saw features connectivity (module sold separately), providing a link to a connected device via the Bosch Toolbox App to customize settings and receive detailed feedback. It has a 0-50° bevel range, and the auxiliary handle improves stability and handling. The saw is compatible with Bosch as well as select manufacturers’ track-guidance systems, enabling users to make straight cuts fast. It has an electronic convenience brake for less downtime between cuts and a 360° pivoting port directing dust away from the body when the saw is held in either hand. The kit includes a CORE18V® 8 Ah High Power Battery, which delivers 50% more runtime and over 75% more power than the CORE18V® 4 Ah battery, powering high-demand applications.
