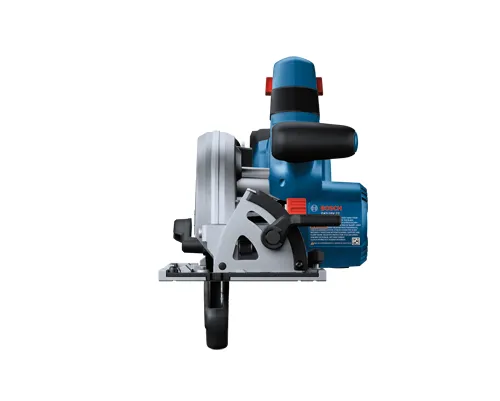

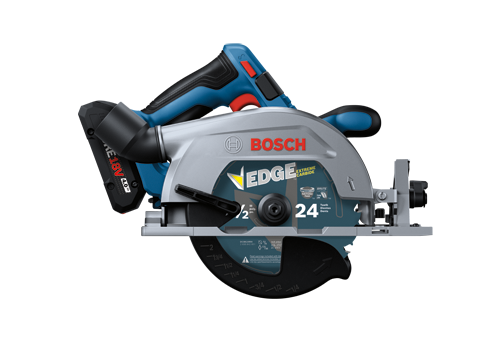

GKS18V-22B25 Professional
Cordless Circular Saws

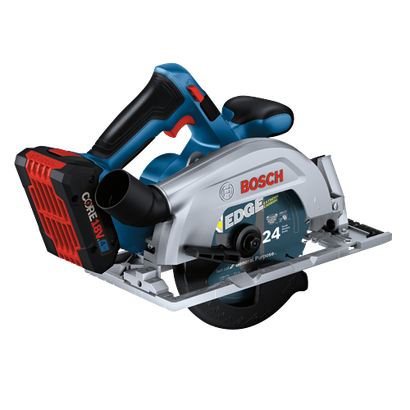

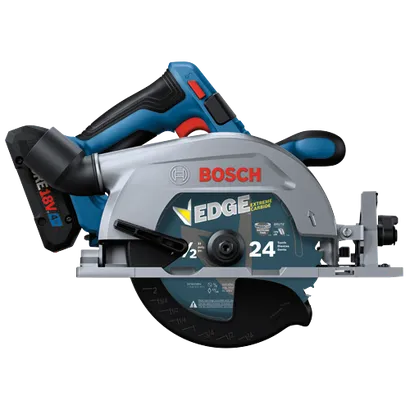

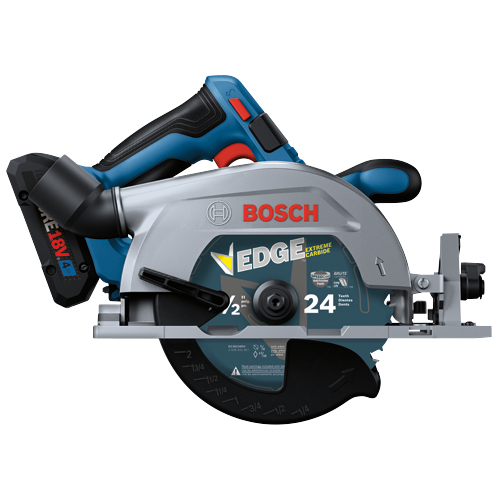

18V Brushless Blade-Right 6-1/2 In. Circular Saw Kit with (2) CORE18V® 4 Ah Advanced Power Batteries
- Easy-to-use 18V circular saw – designed for efficient operation, professional cut capacity and ergonomic handling
- Powerful brushless motor – delivers efficient runtime and 5,000 rpm with professional dependability
- Enhanced ergonomic handling – provides an auxiliary handle that delivers ease of use in either hand
- Compact size – weighs only 6.1 Lbs. (tool only, not including battery) for easy maneuverability
- CORE18V® 4 Ah battery – delivers 2x the runtime compared to previous generation BAT612 2 Ah battery

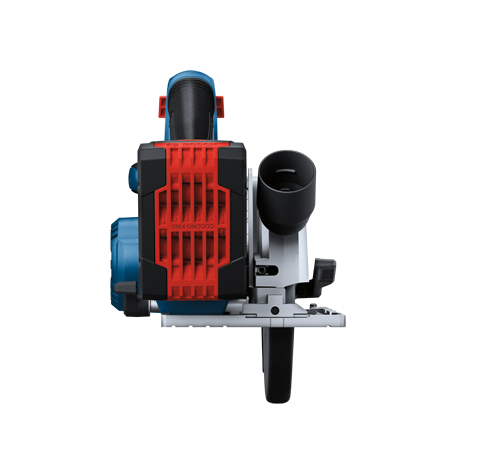

- CORE18V® advantage – high-power li-ion cells, cutting-edge battery design and heat management with Bosch-exclusive CoolPack 2.0 technology
- Convenient depth gauges – visible from either side of the saw
- Useful 50 degree bevel range – features detents at 0, 45 degrees and 22-1/2 degrees
- Electronic convenience brake – quickly stops the blade for less downtime between repeated cuts
- Cut-line LED – illuminates workpiece cutting area for improved cut-line visibility
- Pivoting dust port – rotates 360 degrees, directing dust or optional vac hose away from body when saw is held in either hand
- Spindle lock and on-tool wrench storage – allows for easy blade changes
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Watt Hours | 144 Wh |
| Bevel | 0° to 50° |
| Bevel Stops | 0°, 22.5°, 45° |
| Blade Diameter (in) | 6.5 |
| Blade Size | 6-1/2" |
| Case Type | Bag |
| Charger | GAL18V-40 |
| Dust Blower | Yes |
| Dust Collection | No |
| Electric Motor Brake | Yes |
| Height in | 10.1 " |
| Length in | 13.4 " |
| Max. Bevel Capacity (°) | 50 |
| Max. Bevel Cut | 50° |
| Max. Depth of Cut at 45 Deg. | 1-9/16” |
| Max. Depth of Cut at 50 Deg. | 1-1/2" |
| Max. Depth of Cut at 90 Deg. | 2-1/4" |
| No Load RPM | 5,000 |
| Safety / Lock-off | Yes |
| Variable Speed | No |
| Weight | 6.1 lb |
| Weight (lbs.) | 6.1 |
| Width in | 6.9 " |
| Works With | Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024 (VAC002 is not compatible with the GKS18V-22 Circular Saw.), Dust Bag, 160541101V, Attachment Kit, GKSRAK |
| Includes |

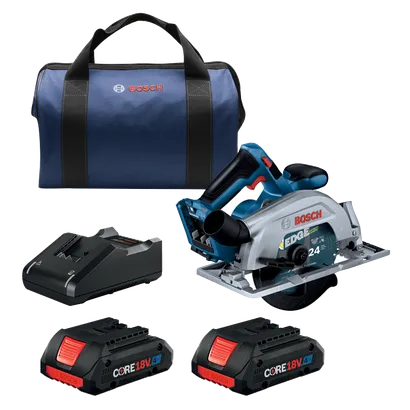

(1) GKS18V-22 18V Brushless Blade-Right 6-1/2 In. Circular Saw (2) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Batteries (1) 18V Charger (1) 6-1/2 In. Carbide-Tooth Circular Saw Blade (1) Hex Wrench (1) Carrying Bag |
GKS18V-22B25 Professional: Further information
Product Highlights
This circular saw has a 2-1/4 In. cut capacity, cutting through 2X (“two by”) material across the entire bevel range. The Bosch GKS18V-22 18V 6-1/2 In. Blade-Right Circular Saw has a brushless motor, which delivers efficient runtime and 5,000 rpm with professional dependability. This compact saw weighs only 6.1 Lbs. (tool only, not including battery). The auxiliary handle improves stability and ergonomic handling in either hand. The saw's convenient depth gauges are visible from either side of the saw and it has a 0-50 degree bevel range, with detents at 0, 45 and 22-1/2 degrees. It features two convenient depth gauges, one on the lower guard and one by the housing so depth is visible on either side of the saw. It has an electronic convenience brake for less downtime between cuts. The 360 degree pivoting dust port directs dust away from the body when the saw is held in either hand. This saw also features a cut-line LED to illuminate workpiece cutting area for improved cut-line visibility. It includes an on-board blade-change wrench and spindle lock for easy blade changes. The kit features two CORE18V® 4 Ah Advanced Power Batteries, which each deliver 2x the runtime compared to previous generation BAT612 2 Ah battery.
