GDE18V-26DN Professional
Cordless Attachments

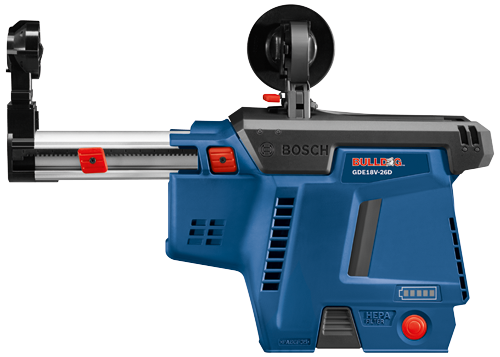

18V SDS-plus® Bulldog™ 1 In. Dust Collection Attachment
- Mobile dust extractor design – built to deliver maximum mobility used with the Bosch cordless GBH18V-26D D-handle Bulldog™
- HEPA filter – so users can move toward OSHA silica dust regulation compliance

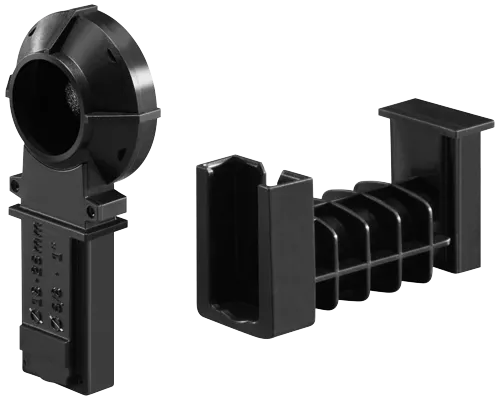

- Two Dust-Eyes and 4 In. extension – available in 5/8 In. and 1 In. sizes for use with bits 5/32 In. to 1 In. in diameter and up to 10 In. in length
- Aluminum guide rail – provides smooth retraction of the Dust Eye during the drilling application
- Dust container – provides capacity for up to 20 holes using a 1/2 In. diameter bit drilling 2 In. deep into concrete
- Dust control – reduces harmful airborne silica dust and reduces the labor require for dust clean up
- Compatible with Bosch 2KG D-Handle Bulldog™ hammers – designed to fit 1 In. 11255VSR and 1-1/8 In. GBH2-28L and RH228VC corded models, as well as the 1 In. 18V GBH18V-26D cordless model
- Convenience features – include an On/Off button and a five-LED battery indicator

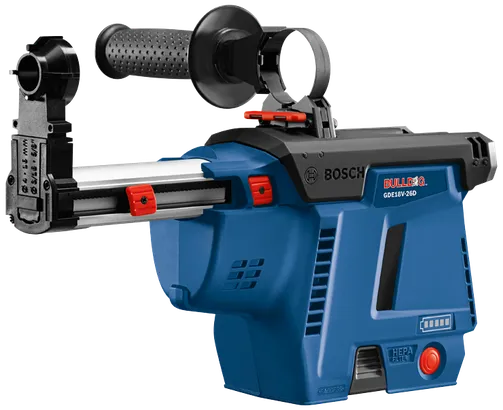

- 180° side handle – provides a variety of grip positions and is required to mount the dust extractor to in-line 1 In. SDS-plus® rotary hammers
Technical data
The most important data |
|
|---|---|
| HEPA Filter | Yes |
| Material | Metal, plastic |
| Overall Length in | 13.6 |
| Used on Model No. | 1 In. 18V GBH18V-26D, 1 In. 11255VSR, 1-1/8 In. GBH2-28L, 1-1/8 In. RH228VC |
| Weight | 3.6 lb |
| Works With | These Bosch SDS-plus® Bulldog™ Hammers:, 11255VSR, GBH18V-26D, GBH2-28L, RH228VC |
| Includes |
(1) GDE18V-26D 18V SDS-plus® Bulldog™ 1 In. Dust Collection Attachment (1) Dust Container (1) HEPA Filter (1) Auxiliary Handle (1) 5/8 In. Dust Eye (1) 1 In. Dust Eye (1) 4 In. Extension |
GDE18V-26DN Professional: Further information
Product Highlights

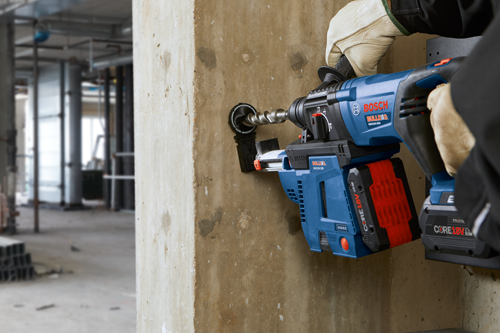

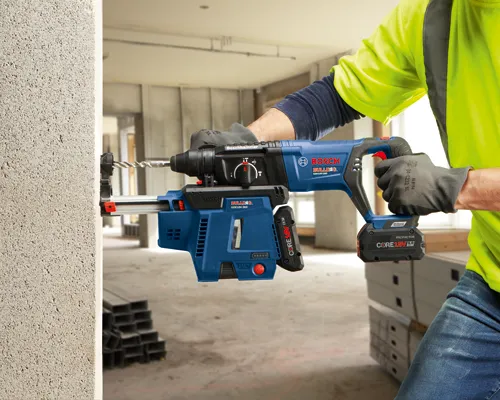

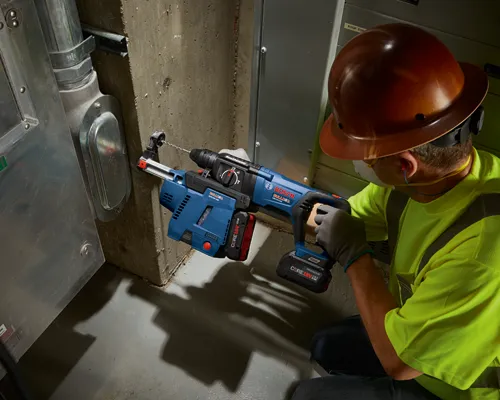

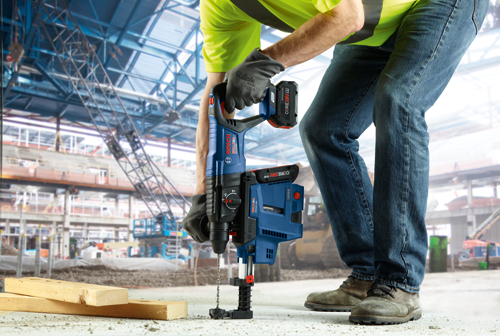

This 18V mobile dust extractor allows users of the Bosch 18V D-handle Bulldog™ to achieve maximum mobility around the jobsite along with a dust-extraction solution. The GDE18V-26D 18V SDS-plus® Bulldog™ 1 In. Dust Collection Attachment provides a true cordless solution when used with the 18V 1 In. GBH18V-26D Bulldog™ rotary hammer. It is also compatible with the legendary corded 1 In. 11255VSR and the 1-1/8 In. GBH2-28L and RH228VC Bulldog™ rotary hammers. The attachment is powered by a Bosch 18V battery (sold separately). It features a HEPA filter, helping users move toward compliance with OSHA silica dust regulations. It helps to reduce harmful airborne silica dust and reduce the labor required for dust clean up after drilling. The attachment comes with two Dust-Eye options (one small, one large) and a 4 In. extension. The large Dust-Eye accommodates bit diameters up to 1 In. in diameter and the extension accommodates bit lengths up to 10 In. in length. The extractor has an aluminum guide rail for durability and smooth retraction of the Dust Eye during the drilling process. The dust canister capacity can accommodate up to 20 holes using a 1/2 In. diameter bit, drilling 2 In. deep into concrete.
