GDE18V-12N Professional
Rotary Hammer & Hammer Drill Attachments

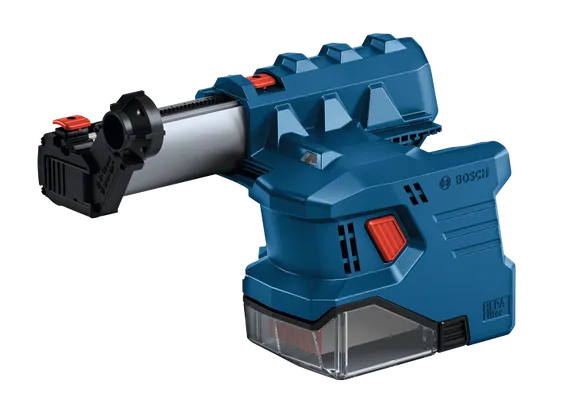

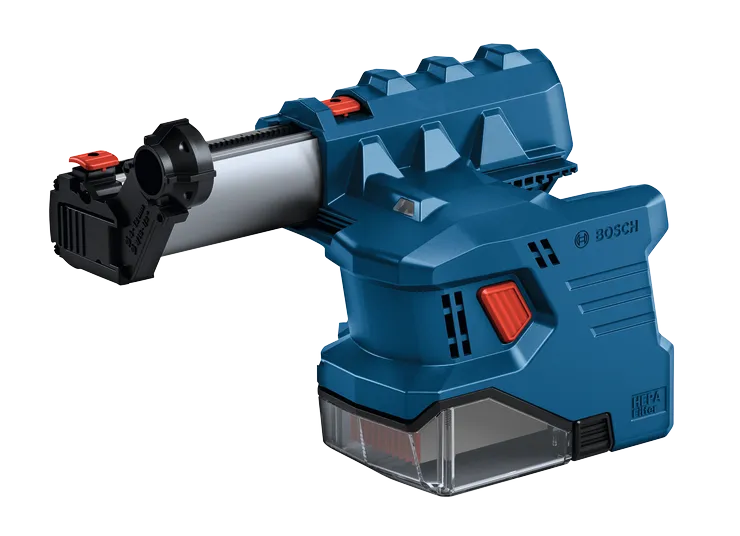

SDS-plus® 1/2 In. Dust Collection Attachment

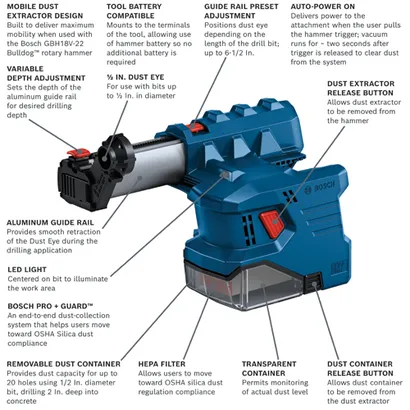

- Mobile dust extractor design – built to deliver maximum mobility used with the Bosch 18V GBH18V-22 Bulldog™ rotary hammer
- HEPA filter – allows users to move toward OSHA silica dust regulation compliance
- Tool battery compatible – mounts to the terminals of the tool, allowing use of hammer battery so no additional battery is required
- 1/2 In. Dust Eye – for use with bits up to 1/2 In. in diameter
- Aluminum guide rail – provides smooth retraction of the Dust Eye during the drilling application
- Removable dust container – provides capacity for up to 20 holes using a 1/2 In. diameter bit drilling 2 In. deep into concrete
- Auto-power on – delivers power to the attachment when the user pulls the hammer trigger
- Transparent container – permits monitoring of actual dust level
- Dust control – reduces harmful airborne silica dust and reduces the labor required for dust clean up
- LED light - centered on bit to illuminate the work area
- Bosch PRO+GUARD™ - an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
Technical data
The most important data |
|
|---|---|
| HEPA Filter | Yes |
| Height in | 6 " |
| Length in | 11.25 " |
| Material | Metal, plastic |
| Max Bit Diameter | 1/2" |
| Overall Length in | 11.25 |
| Size in | 1/2" Dust Collector |
| Used on Model No. | GBH18V-22 |
| Weight | 2.5 lb |
| Weight (lbs.) | 2.5 |
| Width in | 3.5 " |
| Works With | SDS-plus® Rotary Hammer, GBH18V-22 only (NOT COMPATIBLE with GBH18V-24, -26, -26D, -28DC and -28C) |
| Includes |
(1) GDE18V-12 SDS-plus® 1/2 In. Dust Collection Attachment (1) HEPA Filter (1) Dust Container (1) 1/2 In. Dust Eye (2) Dust Eye Brush Rings |
GDE18V-12N Professional: Further information
Product Highlights

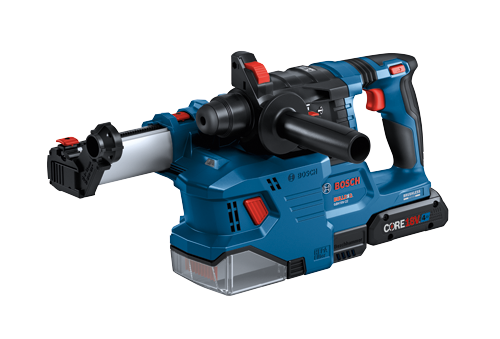

This mobile dust extractor allows users of the Bosch 18V Bulldog™ to achieve maximum mobility around the jobsite with a dust-extraction solution, using only one battery. The Bosch GDE18V-12 SDS-plus® Dust Collection Attachment features a HEPA filter, allowing users of the 18V ¾ In. GBH18V-22 Bulldog™ rotary hammer to move toward compliance with OSHA silica dust regulations. The extractor mounts to terminals on the hammer, allowing use of the hammer battery, so no additional battery is required. This extractor has auto power-on, providing vacuum suction automatically when drilling. It also has auto power-off, with a built-in two-second delay after releasing the hammer trigger, to allow collection of remaining dust. The extractor has an aluminum guide rail for durability and smooth retraction of the Dust Eye during the drilling process. The Dust Eye accommodates bit diameters up to 1/2 In. diameter. The retractable guide rail accommodates bit lengths up to 6-1/2 In. in overall length. The GDE18V-12 18V SDS-plus® Dust Collection Attachment is the ideal pairing for the GBH18V-22 for fast jobsite cleanup.
