Miter Saws
1/15
GCM12SD Professional
Miter Saws

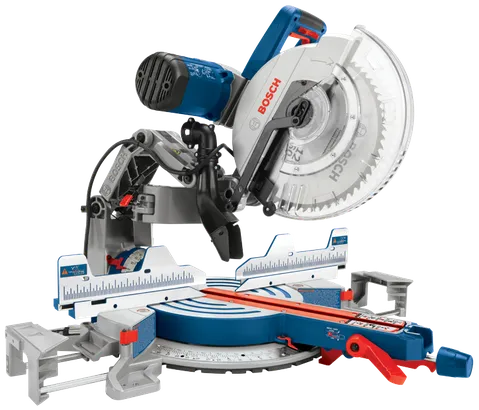

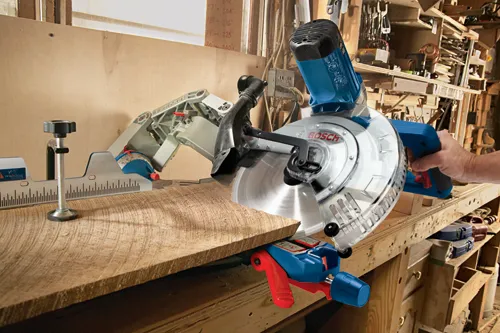

12 In. Dual-Bevel Glide Miter Saw

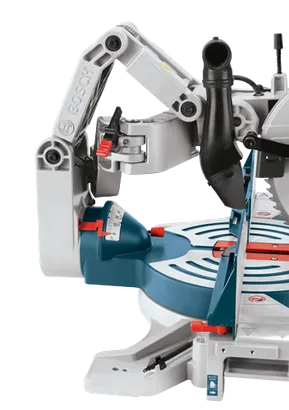

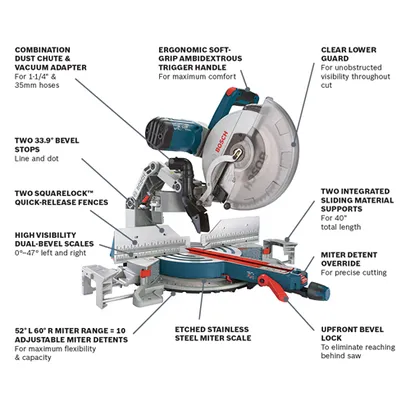

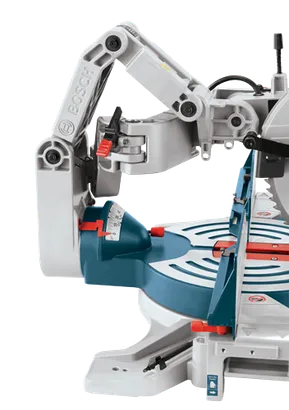

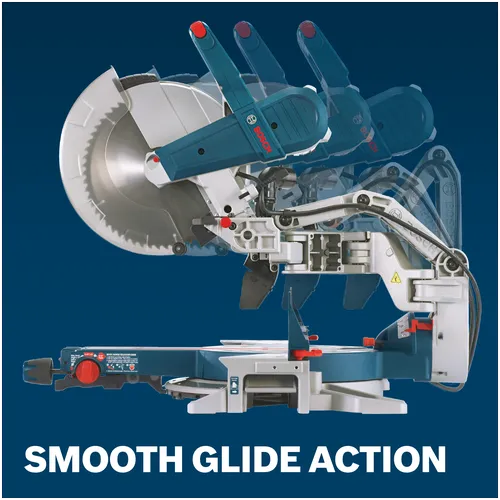

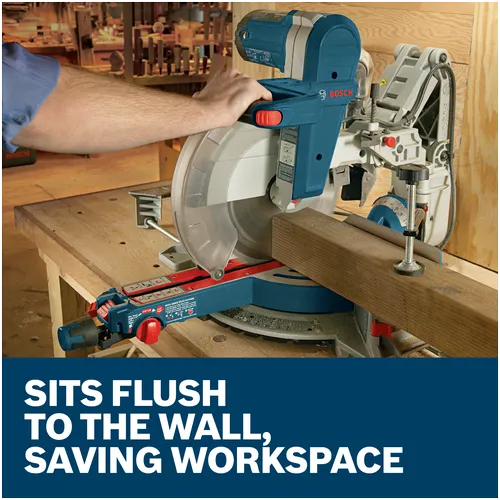

- The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system

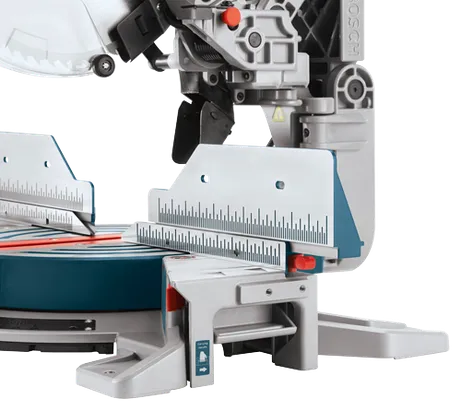

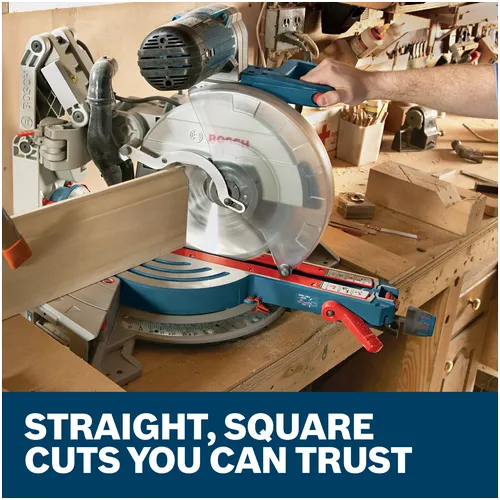

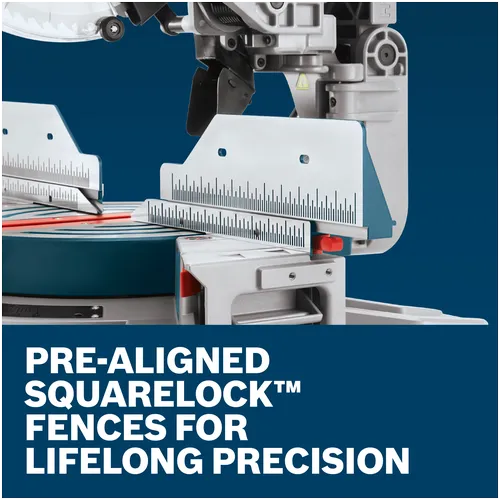

- Pre-aligned SquareLock fences help the saw maintain precision throughout its life
- A soft-grip ambidextrous handle along with a combination dust chute and vacuum adapter add to user comfort
- The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
- Integrated expanding base extensions: 60% more left-to-right material support than leading competitor – 40 In. left to right

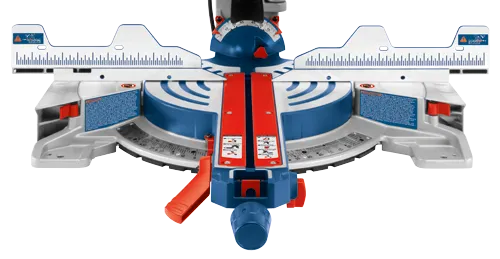

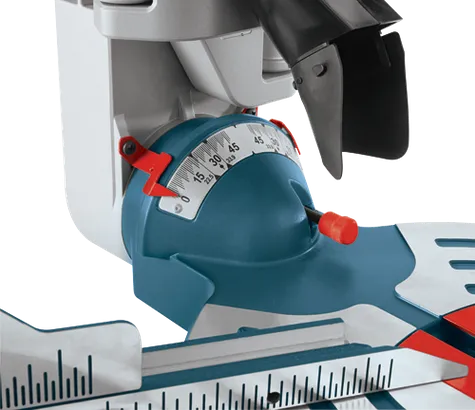

- Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
- Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
- Push-button miter detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment
- Bevel detents: 0, 33.9°, 45° left/right for accurate cuts

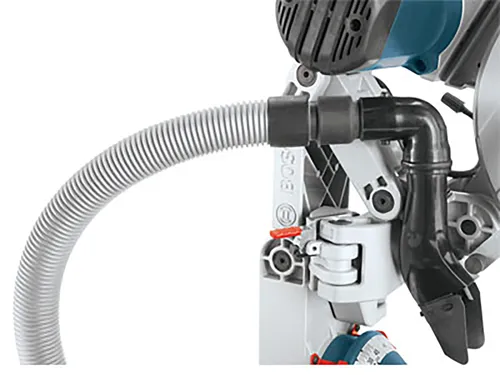

- Category best 90% dust collection – optimized for cutting 2x material with a vacuum
- Ergonomic, ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use
GCM12SD Professional
Technical data
The most important data
Amperage
15
Bevel Angle Range
47° left and 47° right
Bevel Stops
0°, 33.9°, 45° and 47° (L/R)
Blade Diameter (in)
12
Blade Size
12"
Category
Compound Miter Saws
Dust Collection
Yes
Electric Motor Brake
Yes
Height in
27 "
Height of Table from Base Feet to Table Surface - In.
3.75
Length in
32.375 "
Max. Base Molding Against Fence
3-7/8 In. (6-3/4 In. from 0° to 47 L)
Max. Crown Molding (38° Spring) Angled Against Fence
5-1/4 In. (5-1/2 In. from 0° to 47° L)
Max. Crown Molding (45° Spring) Angled Against Fence
6 In.
Max. Cut Capacity - 0° Miter 0° Bevel
3-1/2 In. x 13-1/2 In. (4x14 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Left Bevel
2 In. x 13-1/2 In. (2x14 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Right Bevel
1-1/2 In. x 13-1/2 In. (2x14 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 0° Bevel
3-1/2 In. x 9-1/2 In. (4x10 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Left Bevel
2 In. x 9-1/2 In. (2x10 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Right Bevel
1-1/2 In. x 9-1/2 In. (2x10 Dimensional Lumber)
Miter Angle Range
52° Left, 60° Right
Miter Detents
0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
Miter Positive Stops
0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
No Load RPM
4,000
Separate On/Off Speed Control
Blank
Voltage
120V
Weight
65 lb
Width in
26.5 "
Works With
Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024. (The VAC002 adapter is not compatible with the GCM12SD.)
Includes
(1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw
(1) Premium 12 In. 60-Tooth Carbide-Tipped Blade
(1) Wrench
(1) Toolless Vertical Work Clamp

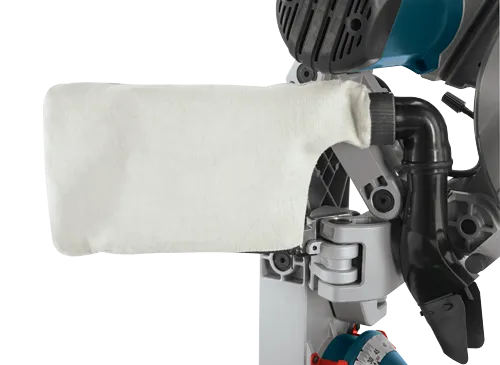

(1) Dust Bag/Assembly
(1) Vacuum Adapter Elbow
(1) Premium 12 In. 60-Tooth Carbide-Tipped Blade
(1) Wrench
(1) Toolless Vertical Work Clamp
(1) Dust Bag/Assembly
(1) Vacuum Adapter Elbow
GCM12SD Professional: Further information
Product Highlights

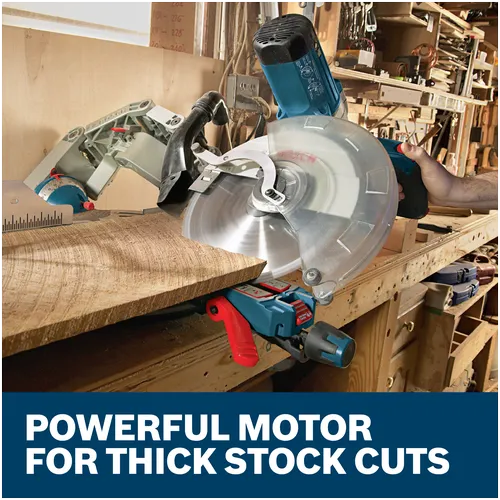

The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 4,000 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
