GBH18V-45CK24 Professional
PROFACTOR 18V Rotary Hammers

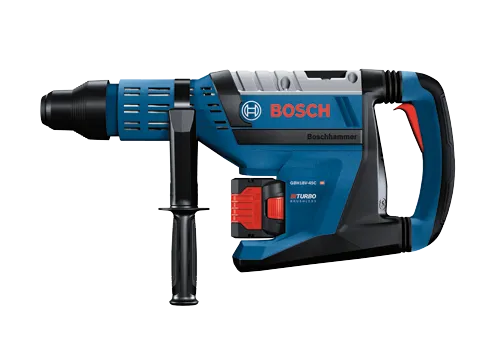

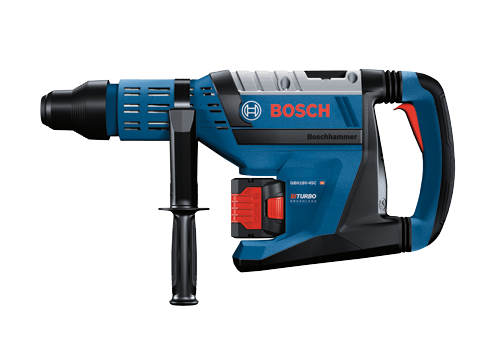

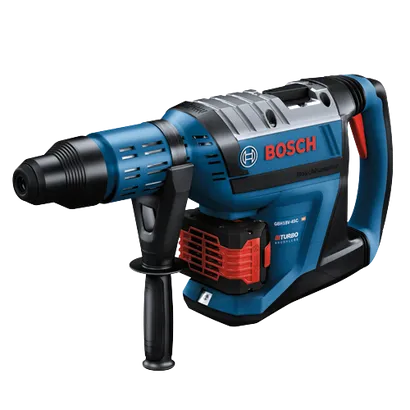

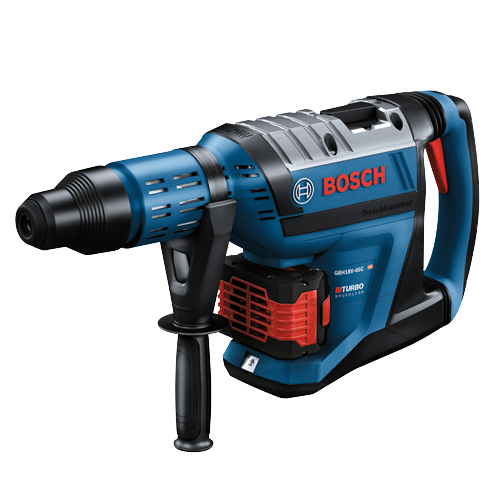

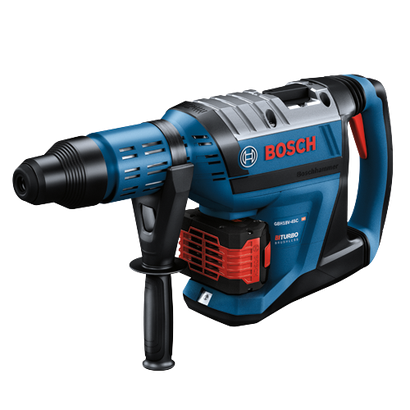

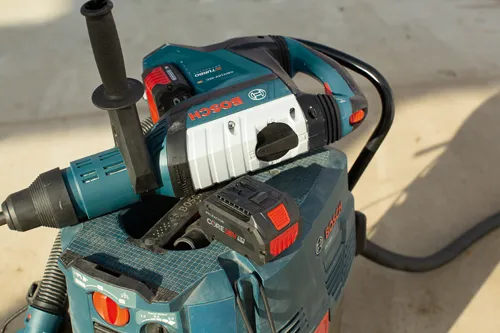

PROFACTOR™ 18V Connected-Ready SDS-max® 1-7/8 In. Rotary Hammer Kit with (2) CORE18V® 8 Ah High Power Batteries

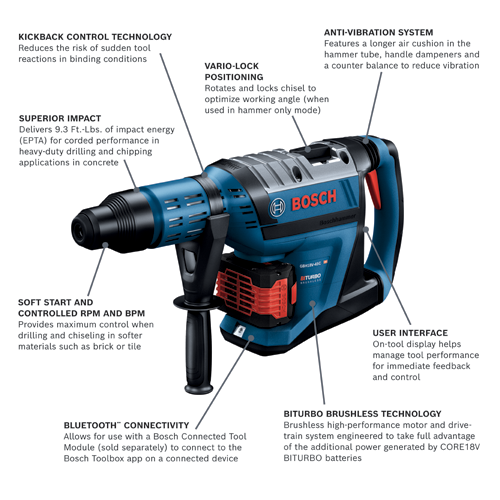

- PROFACTOR™ performance – delivers corded hammer performance for an 18V SDS-max® 1-7/8 In. rotary hammer
- Superior impact – delivers 9.3 Ft.-Lbs. of impact energy (EPTA) for maximum performance when drilling and chiseling
- Lightweight, at only 19.6 Lbs. (with included battery) – provides maneuverability for concrete drilling anywhere
- BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries
- KickBack Control technology – reduces the risk of sudden tool reactions in binding conditions

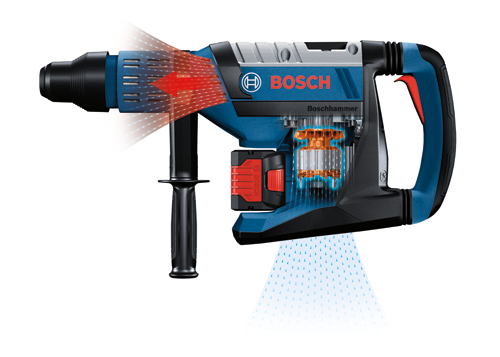

- Anti-vibration system – helps reduce vibration with a longer air cushion in the hammer tube, dampeners in the handle and a counter-balance weight in the hammer mechanism
- CORE18V® High Power 8 Ah battery – compatible with Bosch 18V tools and delivers 2x more runtime than GBA18V40
- High-power battery turbo charger – provides fast and faster charging with optional Power Boost™ mode
- Robust power system – produces 0-2,760 no-load bpm and 0-305 no-load rpm
- Vario-Lock positioning – rotates and locks chisel to optimize working angle
- Soft Start and controlled rpm – adjusts rpm and bpm for controlled drilling and chiseling applications in softer materials such as brick or tile
- Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings and receive detailed feedback

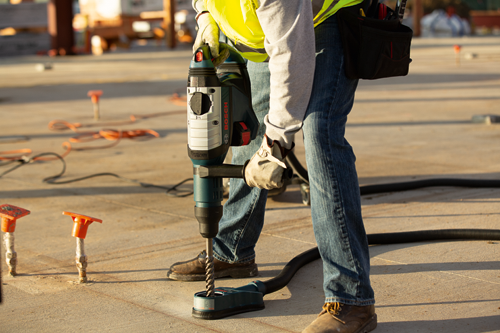

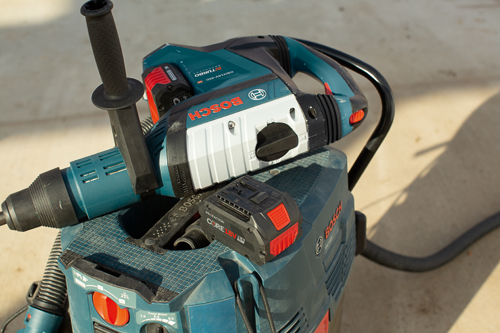

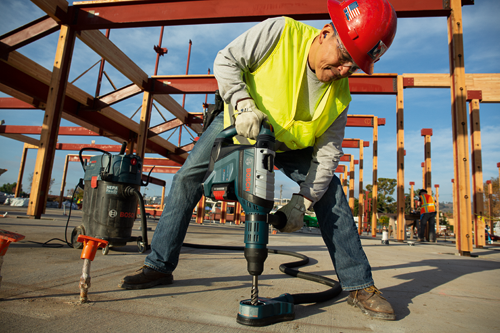

- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica table 1 dust compliance

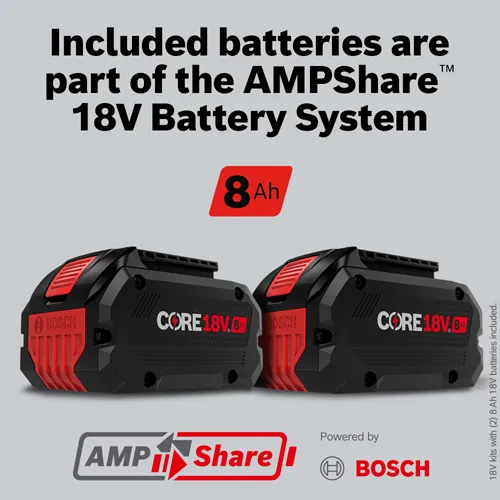

- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Included |
| Chuck Design | Keyless |
| Drive System | SDS-max |
| Height in | 10.3 " |
| Impact Energy/EPTA (ft. lbs.) | 9.3 Ft.-Lbs. EPTA |
| Length in | 21.5 " |
| Max Bit Diameter | 1-7/8" |
| Max. Hole Diameter in Concrete | 1-7/8" |
| Maximum Diameter in Concrete,Carbide Tipped Core Bits | 5" |
| No Load BPM | 0-2,760 |
| No Load RPM | 0-305 |
| Reverse | No |
| Variable Speed | Yes |
| Weight (lbs.) | 19.6 |
| Width in | 5.2 " |
| Works With | Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features., Dust Extraction/Collection Hood, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2"-20 Thread Accessories, HA1032 |
| Includes |

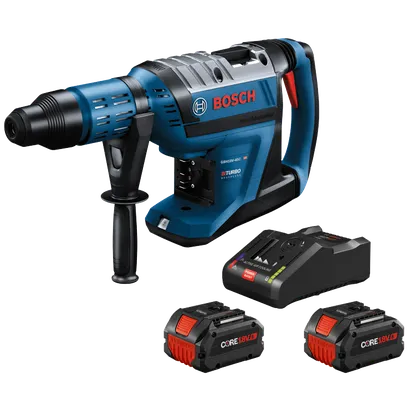

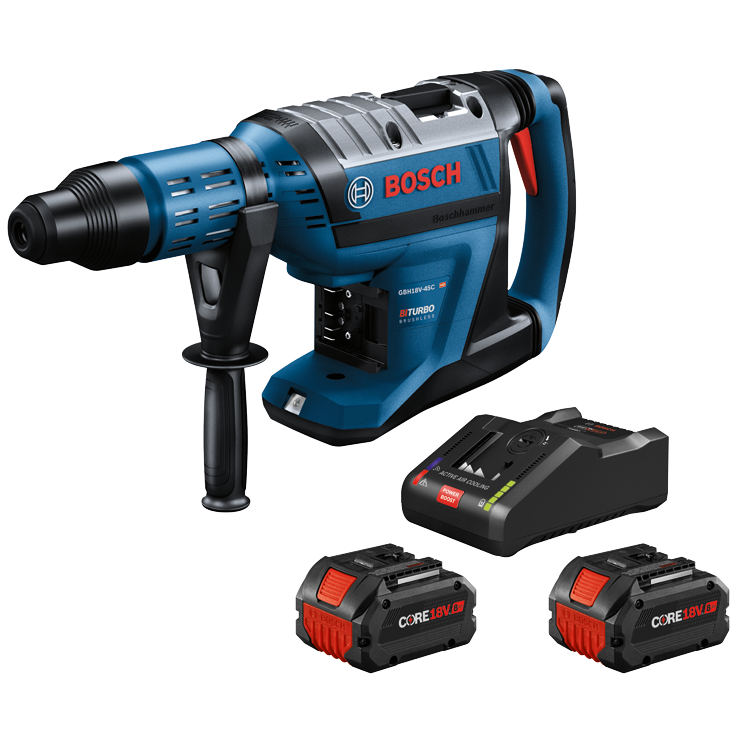

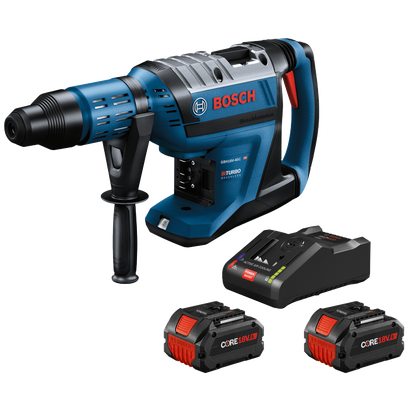

(1) GBH18V-45C PROFACTOR™ 18V Connected-Ready SDS-max® 1-7/8 In. Rotary Hammer (2) GBA18V80 18V CORE18V® Lithium-Ion 8 Ah High Power Batteries (1) 18V Turbo Charger (1) Auxiliary Handle (1) Carrying Case |
GBH18V-45CK24 Professional: Further information
Product Highlights

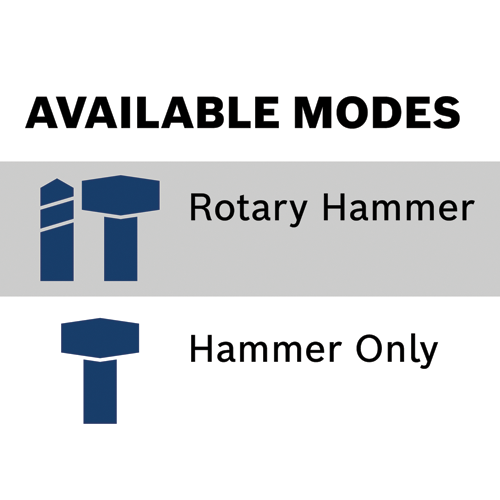

This 18V SDS-max® 1-7/8 In. rotary hammer delivers corded-type performance for heavy-duty concrete drilling and chiseling jobs. The Bosch GBH18V-45CK24 Rotary Hammer delivers 9.3 Ft.-Lbs. of impact energy (EPTA). That is unprecedented for a single-battery 18V SDS-max® 1-7/8 In. rotary hammer. It weighs 19.6 Lbs. (with included battery). This hammer is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. It has KickBack Control, rotary hammer and hammer-only modes, and Vario-Lock to rotate and lock the chisel. The anti-vibration system features a longer air cushion in the hammer tube, dampeners in the handle and a counter-balance weight in the hammer mechanism. It also has Soft Start and controlled rpm and bpm, making it easier to control drilling and chiseling applications. The hammer features an on-tool user interface for tool performance, feedback, and control. This hammer features connectivity (module sold separately) to link to the free Bosch Toolbox app. The kit includes two CORE18V® 8 Ah High Power Batteries, which each deliver 50% more runtime and over 75% more power than the CORE18V® 4 Ah battery, powering high-demand applications. The battery turbo charger provides 16-amp charging current for fast and faster charging, with an optional Power Boost™ mode.
