PROFACTOR 18V Rotary Hammers

GBH18V-40CN Professional

PROFACTOR 18V Rotary Hammers

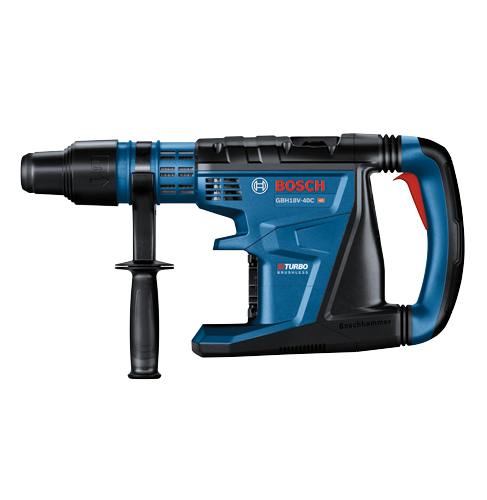

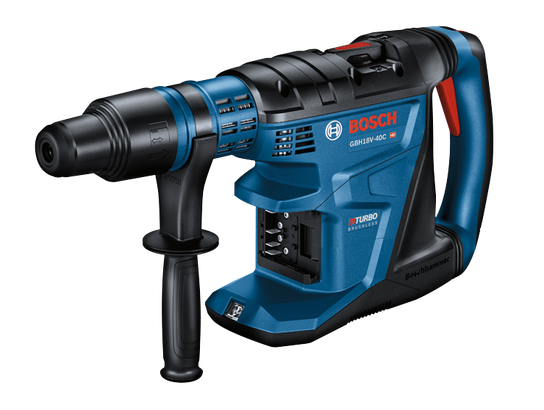

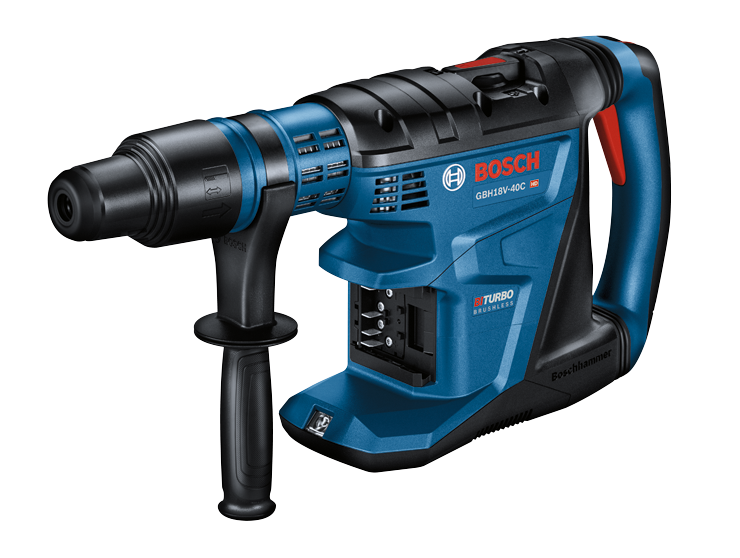

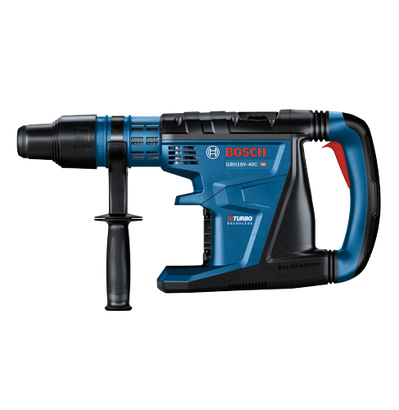

PROFACTOR™ 18V Connected-Ready SDS-max® 1-5/8 In. Rotary Hammer (Bare Tool)

  • PROFACTOR™ performance – delivers corded hammer performance for an 18V SDS-max® 1-5/8 In. rotary hammer
  • Superior impact – delivers 6.7 Ft.-Lbs. of impact energy (EPTA) for maximum performance when drilling and chiseling
  • Lightweight, at 15.4 Lbs. (tool only, not including battery) – provides maneuverability for concrete drilling
  • BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries (sold separately)
  • KickBack Control technology – reduces the risk of sudden tool reactions in binding conditions
  • Anti-vibration system – helps reduce vibration with a longer air cushion in the hammer tube and dampeners in the handle
  • Vario-Lock positioning – rotates and locks chisel to optimize working angle
  • Soft Start and controlled rpm – adjusts rpm and bpm for controlled drilling and chiseling applications in softer materials such as brick or tile
  • Lock-on / lock-off button – keeps tool running when locked on (hammer-mode only) and helps prevent accidental activation of the trigger when locked off
  • LED worklight – illuminates dark work areas
  • Connectivity module (sold separately) – links the tool with the Bosch Toolbox App to provide immediate feedback of user settings

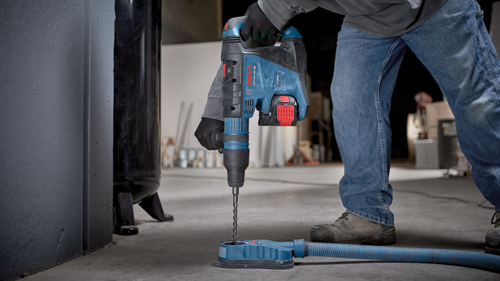

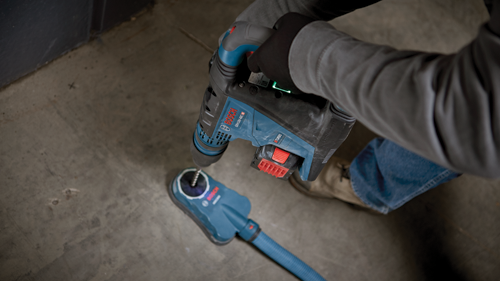

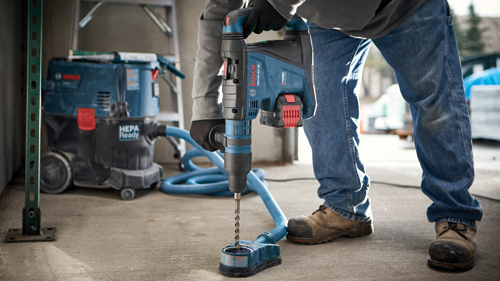

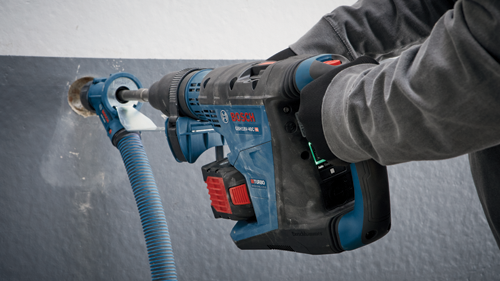

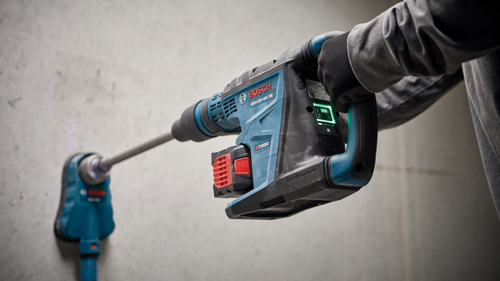

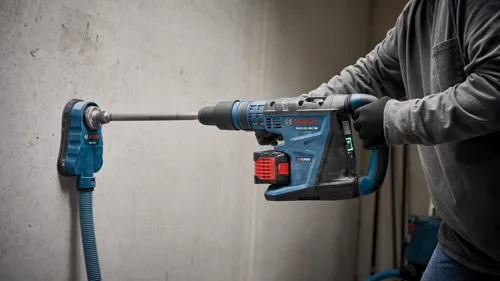

  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica dust compliance
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee
View more View less

GBH18V-40CN Professional

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery/Charger Not Included
Chuck Design Keyless
Chuck Size SDS-Max
Drive SDS-max
Drive System SDS-max
Height in 9.8 "
Impact Energy/EPTA (ft. lbs.) 6.7 Ft.-Lbs. EPTA
Length in 20 "
Max Bit Diameter 1-5/8"
Max. Hole Diameter in Concrete 1-5/8"
Maximum Diameter in Concrete,Carbide Tipped Core Bits 4"
No Load BPM 0-3,130
No Load RPM 0-360
Reverse No
Variable Speed Yes
Weight 15.4 lb
Weight (lbs.) 15.4
Width in 4.2 "
Works With Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2 In.-20 Thread Accessories, HA1032
Includes (1) GBH18V-40C PROFACTOR™ 18V Connected-Ready SDS-max® 1-5/8 In. Rotary Hammer
(1) Auxiliary Handle

GBH18V-40CN Professional: Further information

Product Highlights

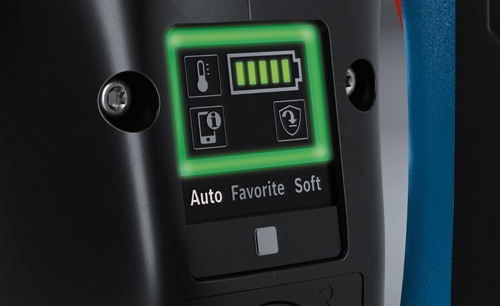

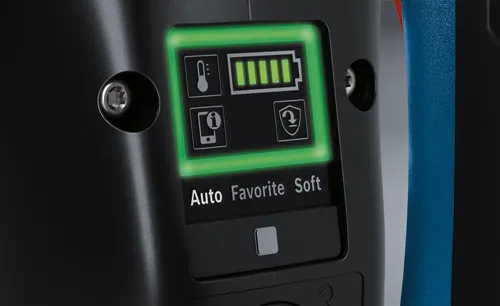

This 18V SDS-max® 1-5/8 In. rotary hammer delivers corded-type performance for heavy-duty concrete drilling and chiseling jobs. The Bosch GBH18V-40C Rotary Hammer delivers 6.7 Ft.-Lbs. of impact energy (EPTA). That is unprecedented for a single-battery 18V SDS-max® 1-5/8 In. rotary hammer. It weighs 15.4 Lbs. (tool only, not including battery). This hammer is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. It has rotary hammer and hammer-only modes, and Vario-Lock to rotate and lock the chisel. The anti-vibration system features a longer air cushion in the hammer tube and dampeners in the handle. It also has Soft Start and controlled rpm and bpm, making it easier to control drilling and chiseling applications. The hammer features an on-tool user interface for tool performance, feedback, and control. It has connectivity (module sold separately) to link the tool with the Bosch Toolbox App to provide immediate feedback of user settings.
