PROFACTOR 18V Rotary Hammers

GBH18V-36CK24 Professional

PROFACTOR 18V Rotary Hammers

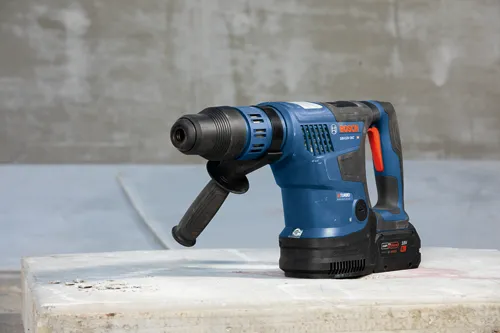

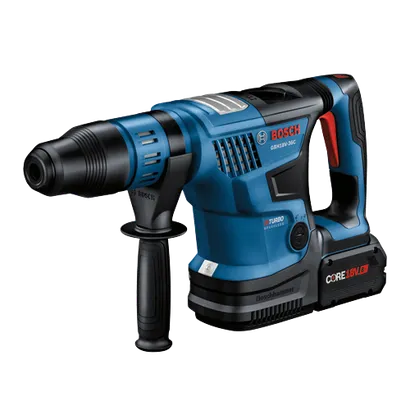

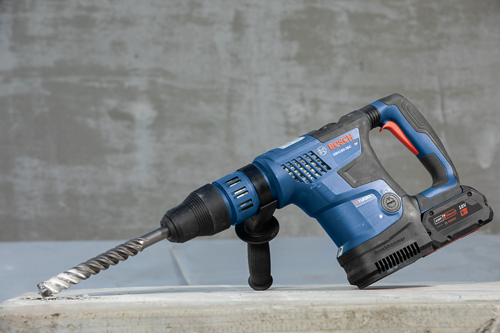

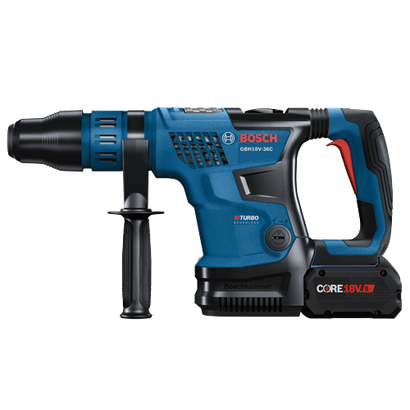

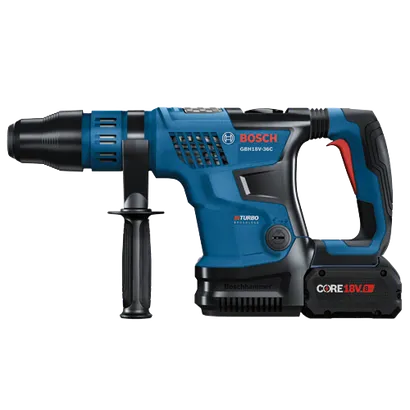

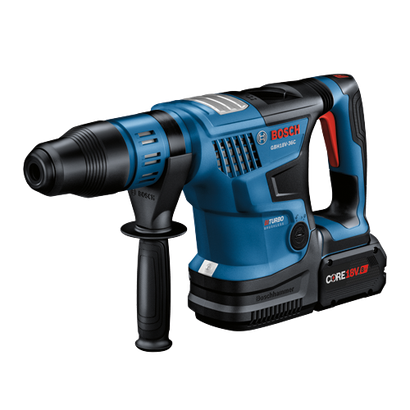

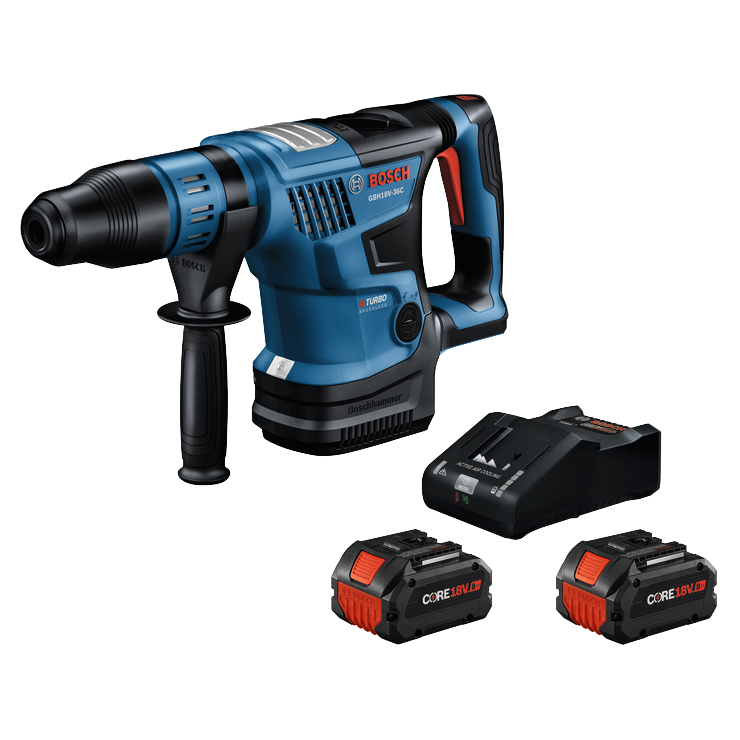

PROFACTOR™ 18V Connected-Ready SDS-max® 1-9/16 In. Rotary Hammer Kit with (2) CORE18V® 8 Ah High Power Batteries

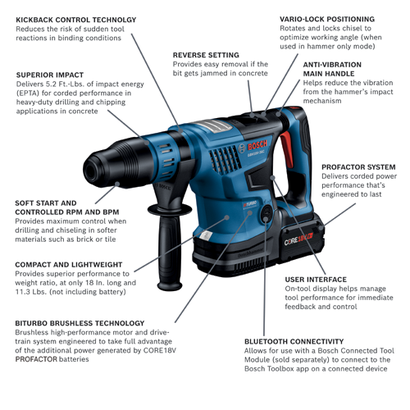

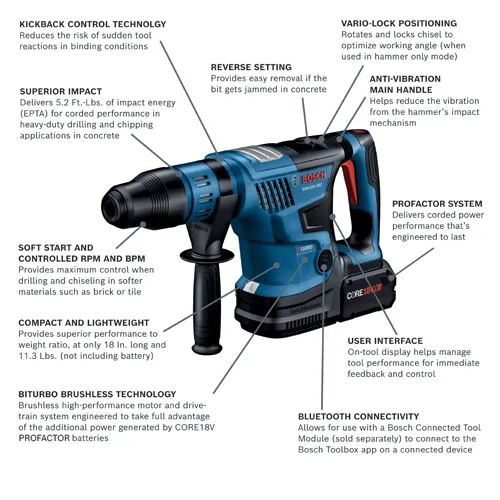

  • PROFACTOR™ performance – delivers corded hammer performance for an 18V SDS-max® 1-9/16 In. rotary hammer
  • Superior impact – delivers 5.2 Ft.-Lbs. of impact energy (EPTA) for full performance in concrete when drilling and chiseling
  • Compact design – weighs only 13.4 Lbs. (with included battery) and is 18 In. long for jobsite maneuverability
  • BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries
  • KickBack Control technology – reduces the risk of sudden tool reactions in binding conditions
  • User interface – on-tool display helps manage tool performance for immediate feedback and control

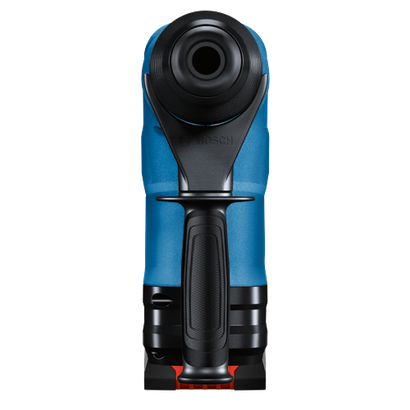

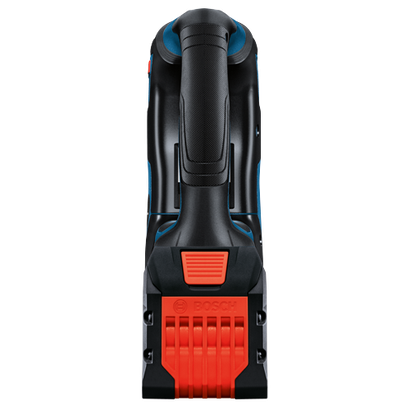

  • Anti-vibration main handle – features a longer air cushion in the hammer tube and dampeners in the handle to help reduce the vibration from the hammer’s impact mechanism
  • CORE18V® High Power 8 Ah battery – compatible with Bosch 18V tools and delivers 2x more runtime than GBA18V40
  • High-power battery turbo charger – provides fast and faster charging with optional Power Boost™ mode
  • Vario-Lock positioning – rotates and locks chisel to optimize working angle
  • Soft Start and controlled rpm – adjusts rpm and bpm for controlled drilling and chiseling applications in softer materials such as brick or tile
  • Reverse setting – provides easy removal if the bit gets jammed in concrete
  • Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings and receive detailed feedback

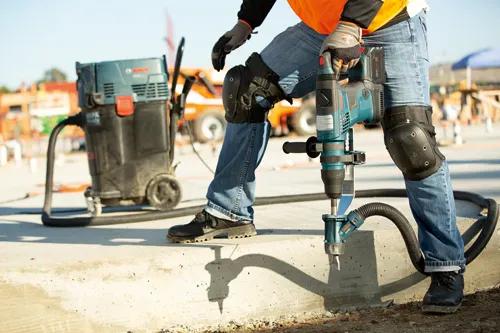

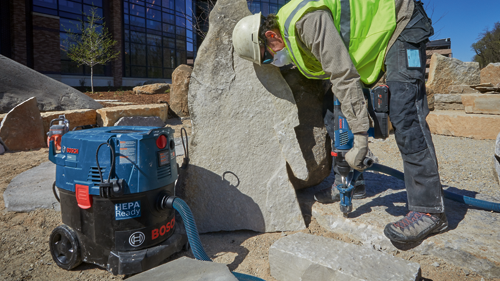

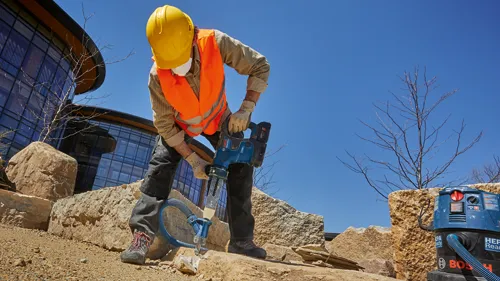

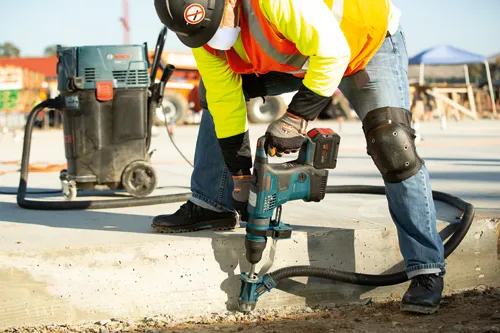

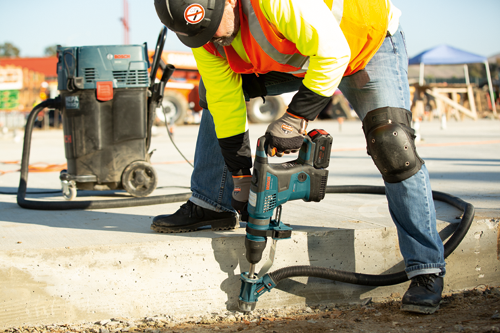

  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica dust compliance
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee
View more View less

GBH18V-36CK24 Professional

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery/Charger Included
Chuck Design Keyless
Chuck Size 1-9/16 in
Drive System SDS-max
Height in 9.8 "
Impact Energy/EPTA (ft. lbs.) 5.2 Ft.-Lbs. EPTA
Length in 18.3 "
Max Bit Diameter 1-9/16"
Max. Hole Diameter in Concrete 1-9/16"
Maximum Diameter in Concrete,Carbide Tipped Core Bits 4"
No Load BPM 0-2,900
No Load RPM 0-500
Reverse Yes
Variable Speed Yes
Weight 13.4 lb
Weight (lbs.) 13.4
Width in 3.4 "
Works With Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2"-20 Thread Accessories, HA1032

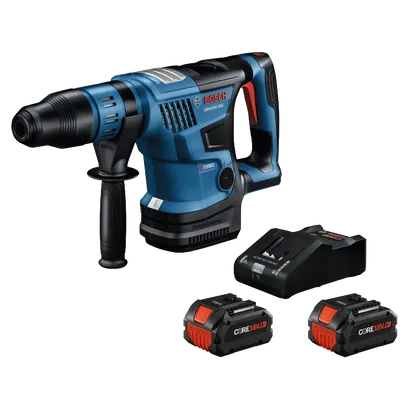

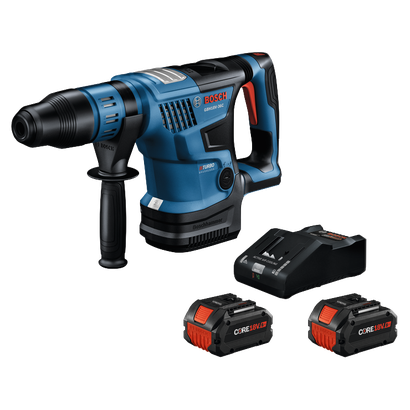

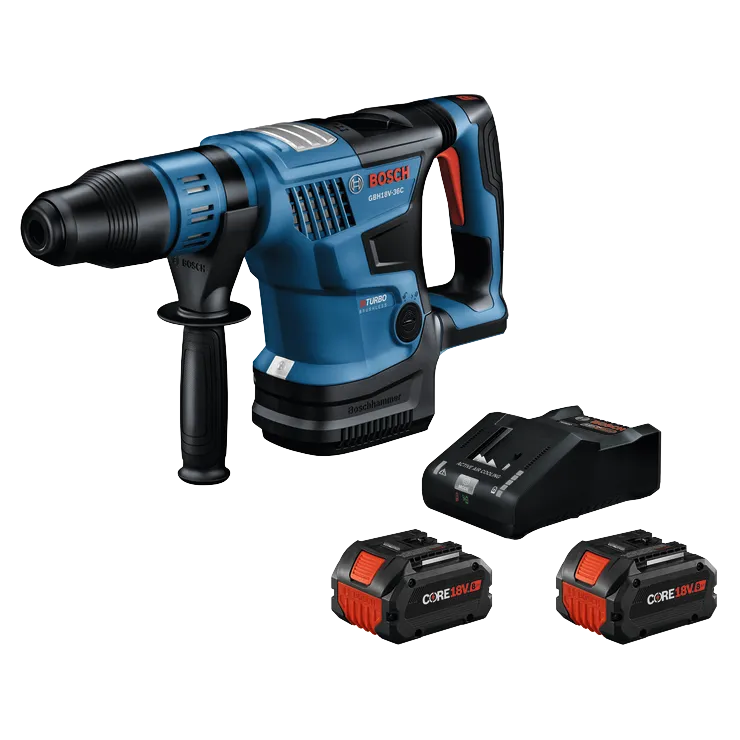

Includes (1) GBH18V-36C PROFACTOR™ 18V Connected-Ready SDS-max® 1-9/16 In. Rotary Hammer

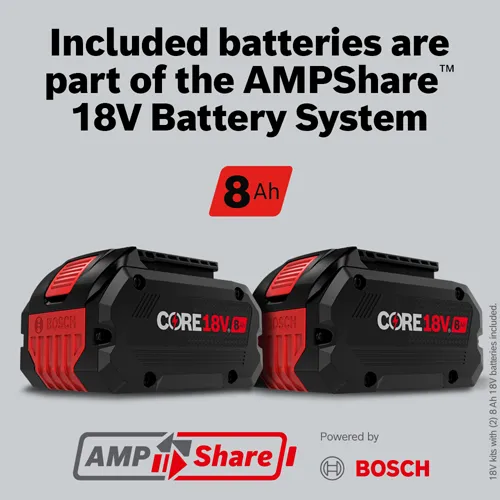

(2) GBA18V80 18V CORE18V® Lithium-Ion 8 Ah High Power Batteries
(1) 18V Turbo Charger
(1) Auxiliary Handle
(1) Carrying Case

GBH18V-36CK24 Professional: Further information

Product Highlights

This 18V SDS-max® 1-9/16 In. rotary hammer is powerful enough to provide corded-type performance for tackling heavy-duty concrete drilling or chiseling jobs. The Bosch GBH18V-36C Rotary Hammer delivers 5.2 Ft.-Lbs. of impact energy (EPTA). That is unprecedented for a single 18V battery-driven SDS-max® 1-9/16 In. rotary hammer. It weighs 13.4 Lbs. (with included battery). This hammer is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. The anti-vibration system features a longer air cushion in the hammer tube and dampeners in the handle The hammer has KickBack Control, rotary hammer and hammer-only modes, a reverse setting and Vario-Lock to rotate and lock the chisel. The hammer features an on-tool user interface for tool performance, feedback and control. This hammer features connectivity (module sold separately), providing a link to the free Bosch Toolbox app on a connected device to customize settings. The kit includes two CORE18V® 8 Ah High Power Batteries, which each deliver 50% more runtime and over 75% more power than the CORE18V® 4 Ah battery, powering high-demand applications. The kit has a battery turbo charger, which provides 16-amp charging current for fast and faster charging, with an optional Power Boost™ mode.
