GBH18V-28DCK24 Professional
18V Rotary Hammers

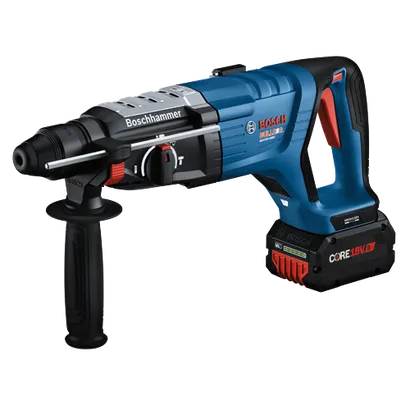

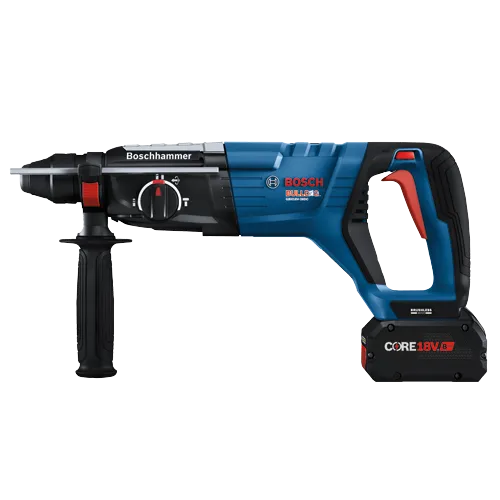

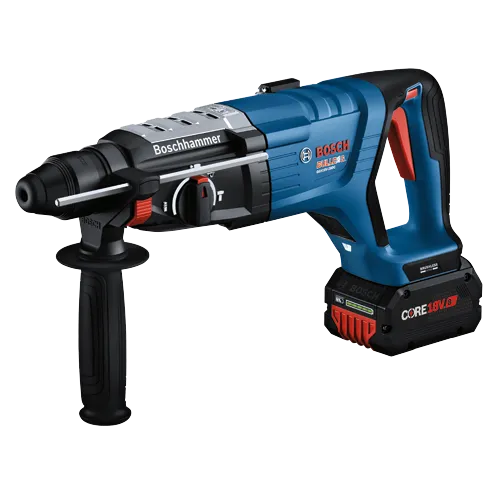

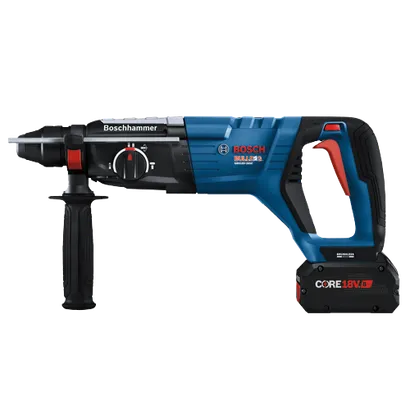

18V Brushless Connected-Ready SDS-plus® Bulldog™ 1-1/8 In. Rotary Hammer Kit with (2) CORE18V 8 Ah High Power Batteries

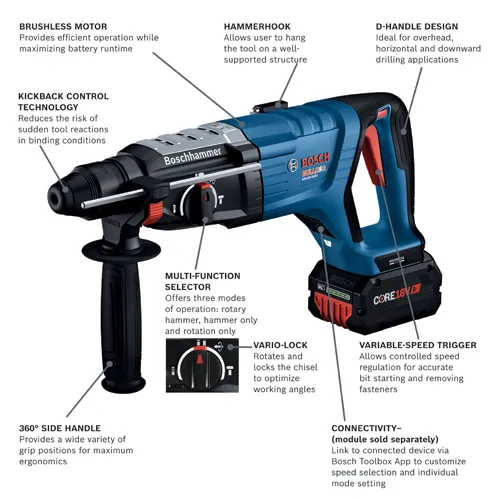

- Legendary Bulldog™ performance – consistently outperforms the celebrated corded 11255VSR Bulldog™, making it better than the best
- Superior impact – delivers 2.6 Ft.-Lbs. of impact energy (EPTA) for maximum performance in heavy-duty applications in concrete
- Vario-Lock – rotates and locks the chisel to optimize working angles
- Efficient brushless motor – maximizes battery runtime in extended applications
- KickBack Control technology – reduces the risk of sudden tool reactions in binding conditions
- D-handle design – ideal for overhead, horizontal and downward drilling applications
- CORE18V® 8 Ah battery – compatible with Bosch 18V tools; optimized for PROFACTOR tools; delivers 2x more runtime than GBA18V40
- CORE18V® advantage – high-power li-ion cells, cutting-edge battery design and heat management with Bosch-exclusive CoolPack 2.0 technology
- Lightweight, at only 6.7 Lbs. (tool only, not including battery) – provides maneuverability for concrete drilling anywhere on the jobsite
- Variable-speed trigger – allows for accurate bit starting

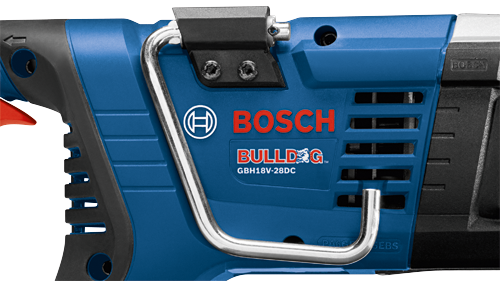

- HammerHook – allows user to hang the tool on a well-supported structure
- SDS-plus® chuck – industry-standard system compatible with many bits
- Robust power system – produces 0-4,250 no-load bpm and 0-950 no-load rpm
- Anti-vibration system – features a built-in counter balancer

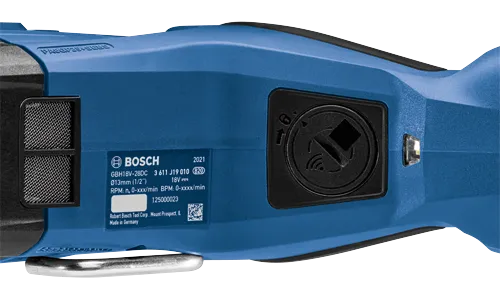

- Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings and receive feedback

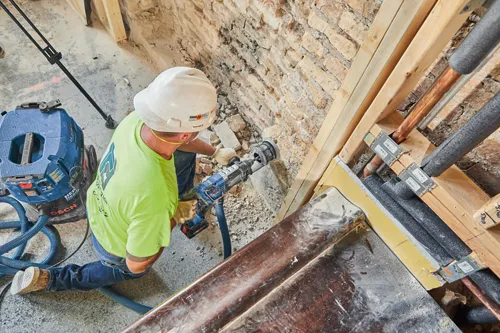

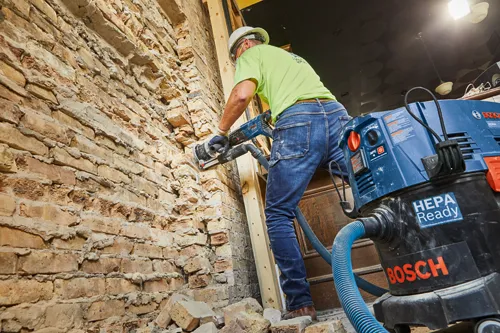

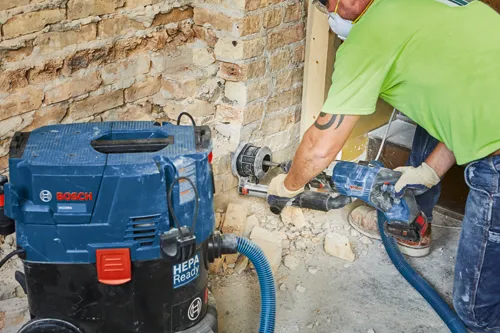

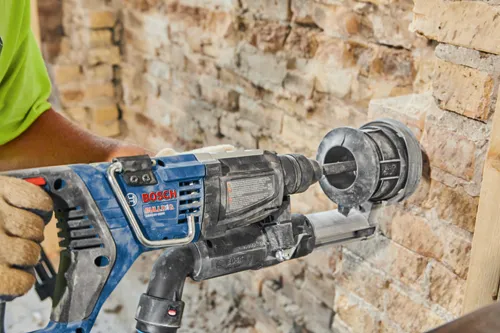

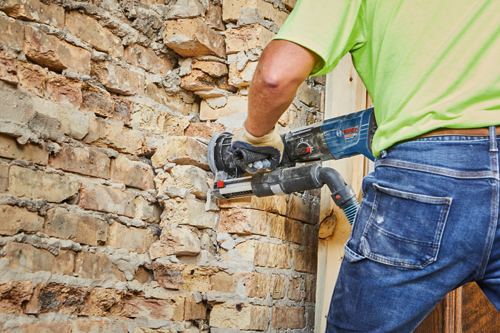

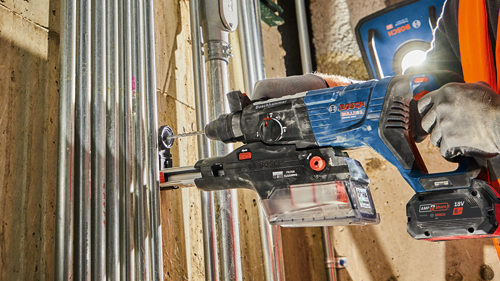

- Works with Bosch PRO+GUARD™ dust solutions – compatible with an optional GDE28D cordless dust-extraction unit (sold separately), delivering a self-contained dust solution for max mobility
- 360° side handle – provides a variety of grip positions for maximum ergonomics
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Included |
| Chuck Design | Keyless |
| Chuck Size | 1-1/8 in |
| Drive System | SDS-plus |
| Height in | 8.9 " |
| Impact Energy/EPTA (ft. lbs.) | 2.6 Ft.-Lbs. EPTA |
| Length in | 18.4 " |
| Max Bit Diameter | 1-1/8" |
| Max. Capacity in Steel | 1/2" |
| Max. Capacity in Wood | 1-1/4" |
| Max. Hole Diameter in Concrete | 1-1/8" |
| Max. Hole Diameter in Concrete-Thin Wall Core Bit | 2-5/8" |
| No Load BPM | 0-4,250 |
| No Load RPM | 0-950 |
| Reverse | Yes |
| Variable Speed | Yes |
| Weight | 6.7 lb |
| Weight (lbs.) | 6.7 |
| Width in | 3.5 " |
| Works With | 18V On-Tool Dust Extractor, GDE18V-26D, GDE28D, Other Dust Extraction/Collection Hoods, HDC100, HDC200, Right Angle Attachment, RHA-50, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW |
| Includes |

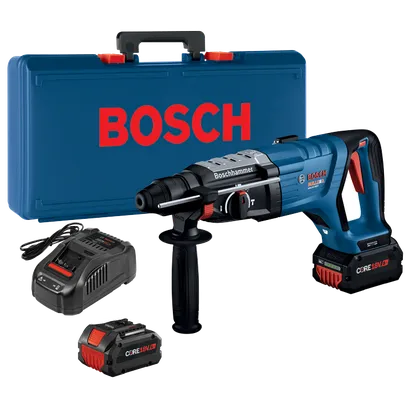

(1) GBH18V-28DC 18V Brushless Connected-Ready SDS-plus® Bulldog™ 1-1/8 In. Rotary Hammer (2) GBA18V80 18V CORE18V Lithium-Ion 8 Ah High Power Batteries (1) 18V Fast Charger (1) Auxiliary Handle (1) Depth Gauge (1) Carrying Case |
GBH18V-28DCK24 Professional: Further information
Product Highlights
This Bosch D-handle Bulldog™ hammer delivering superior performance and an outstanding impact-to-weight ratio. The GBH18V-28DC 18V Brushless 1-1/8 In. SDS-plus® Bulldog™ Rotary Hammer delivers 2.6 Ft.-Lbs. of impact energy, based on the industry standard of measurement agreed upon by the European Power Tool Association (EPTA). It weighs only 6.7 Lbs. (tool only, not including battery). The hammer’s brushless motor maximizes battery runtime for extended performance. The tool features a jobsite-proven D-handle design with soft-grip and is ideal for overhead, horizontal and downward drilling applications. The GBH18V-28DC is compatible with an optional GDE28D cordless dust-extraction unit (sold separately), delivering a self-contained dust solution for max mobility. It has KickBack Control, an anti-vibration system featuring a built-in counter balancer and a variable-speed trigger for accurate bit starting. It also has a HammerHook to hang the tool on a well-supported structure and robust housing for enhanced durability. This hammer features connectivity (module sold separately), providing a link to the free Bosch Toolbox app on a connected device to customize settings. The CORE18V® 8 Ah battery is compatible with Bosch 18V tools, is optimized for PROFACTOR tools and delivers 2x more runtime than the CORE18V® GBA18V40 4 Ah Advanced Power Battery.
