GBH18V-22K24 Professional
18V Rotary Hammers

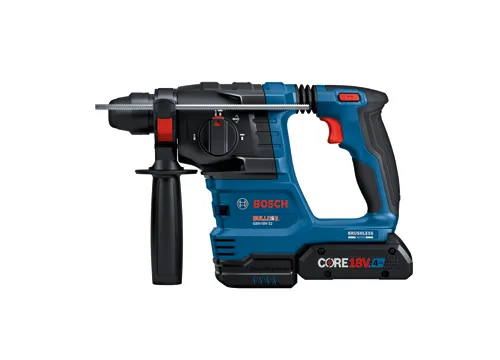

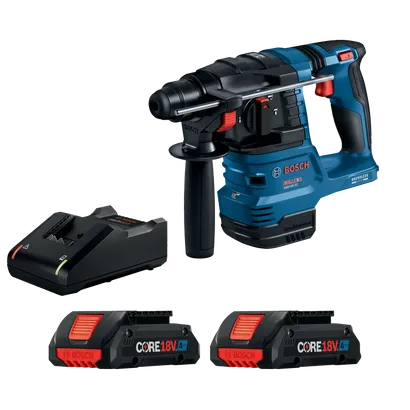

18V Brushless SDS-plus® Bulldog™ ¾ In. Rotary Hammer Kit with (2) CORE18V® 4 Ah Advanced Power Batteries
- Superior impact – delivers 1.4 Ft.-Lbs. of impact energy (EPTA) for maximum performance in heavy-duty applications in concrete
- Efficient brushless motor – maximizes battery runtime in extended applications
- KickBack Control technology – helps reduce the risk of sudden tool reactions in binding conditions
- Lightweight, at only 5.1 Lbs. (tool only, not including battery) – provides maneuverability for concrete drilling anywhere on the jobsite
- Easy-to-handle L-shaped design – provides better control when drilling overhead or in tight spaces
- Variable-speed trigger – allows for accurate bit starting
- SDS-plus® chuck – industry-standard system compatible with many bits
- Anti-vibration system – affords great user comfort for extended periods of work
- Robust power system – produces 0-4,675 no-load bpm and 0-1,050 no-load rpm

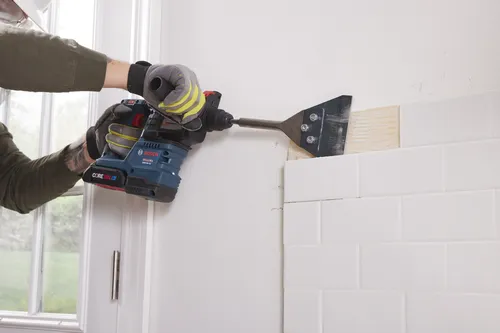

- Vario-Lock positioning – rotates and locks chisel to optimize working angle when the tool is used in hammer-only mode
- CORE18V® 4 Ah high power battery – delivers 2x the runtime and 60% more power compared to BAT612 18V 2 Ah battery

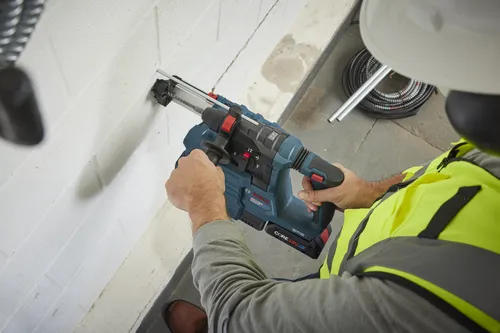

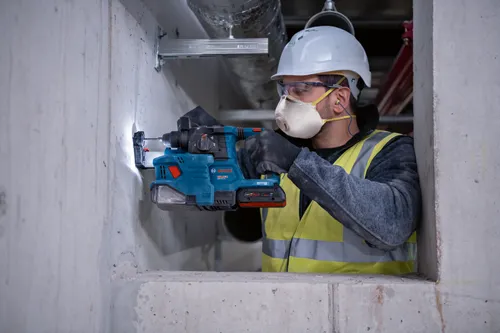

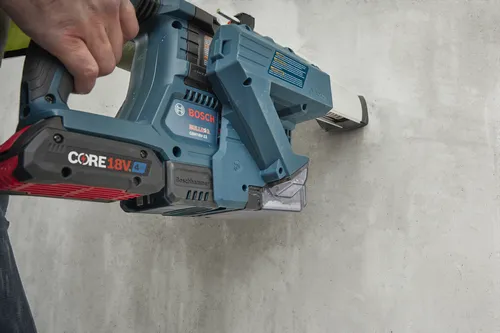

- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance, and it is compatible with the GDE18V-12 dust collection attachment (sold separately)
- 360-degree side handle – provides a variety of grip positions for maximum ease of use

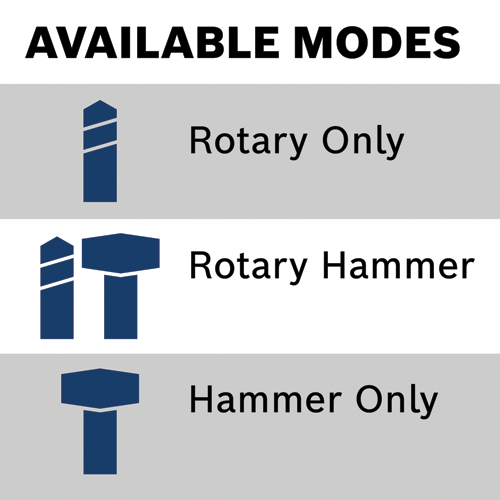

- Function selector – three modes of operation: rotary hammer, rotation only and hammer only
- LED worklight – illuminates dark work areas
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your workday easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty; for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Included |
| Chuck Design | Keyless |
| Chuck Size | SDS-plus |
| Drive | SDS-plus |
| Drive System | SDS-plus |
| Height in | 8.1 " |
| Impact Energy/EPTA (ft. lbs.) | 1.4 Ft.-Lbs. EPTA |
| Length in | 11.5 " |
| Max Bit Diameter | 3/4" |
| Max. Capacity in Concrete | 3/4" |
| Max. Capacity in Steel | 1/2" |
| Max. Capacity in Wood | 1-1/4" |
| Max. Hole Diameter in Concrete | 3/4" |
| Max. Hole Diameter in Concrete-Thin Wall Core Bit | 2-1/2" |
| No Load BPM | 0-4,675 |
| No Load RPM | 0-1,050 |
| Reverse | Yes |
| Variable Speed | Yes |
| Weight | 6.4 lb |
| Weight (lbs.) | 6.4 |
| Width in | 3.25 " |
| Works With | Dust Collection Attachment, GDE18V-12 only, Dust Extraction/Collection Attachments, HDC50, HDC100, HDC200, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW |
| Includes |

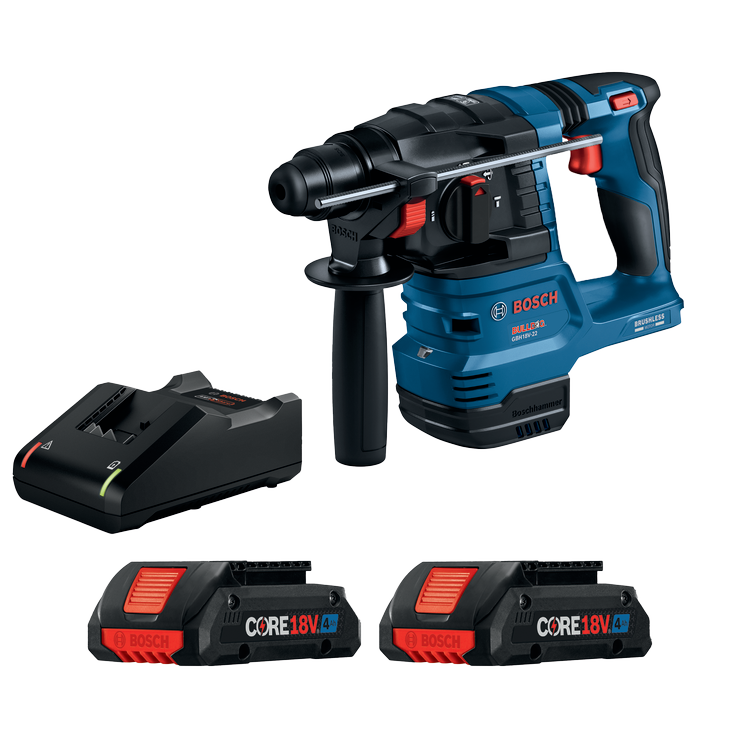

(1) GBH18V-22 18V Brushless SDS-plus® Bulldog™ 3/4 In. Rotary Hammer (2) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Batteries (1) 18V Charger (1) Auxiliary Handle (1) Depth Gauge (1) Carrying Case |
GBH18V-22K24 Professional: Further information
Product Highlights
This Bosch Bulldog™ hammer is a manageable, powerful rotary hammer designed to get the job done. It provides superior performance and an outstanding impact-to-weight ratio. The GBH18V-22 18V Brushless SDS-plus® Bulldog™ 3/4 In. Rotary Hammer has KickBack Control, which reduces the risk of sudden tool reactions in binding conditions, and an anti-vibration system for great user comfort for extended periods of work. The hammer's easy-to-handle L-shaped design provides better control when drilling overhead or in tight spaces. It delivers 1.4 Ft.-Lbs. of impact energy (EPTA). It weighs only 5.1 Lbs. (tool only, not including battery). The hammer’s brushless motor maximizes battery runtime for extended performance. The 360-degree side handle provides a variety of grip positions for maximum ease of use. The hammer has Vario-Lock positioning to optimize the working angle when the tool is used in hammer-only mode. It has three modes of operation: rotary hammer, rotation only and hammer only. The CORE18V® 4 Ah Advanced Power Battery included in this kit delivers 2x the runtime and 60% more power compared to BAT612 18V 2 Ah Standard Power Battery.
