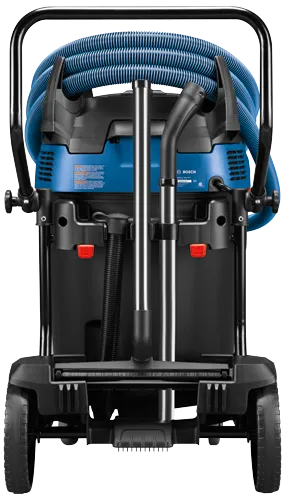

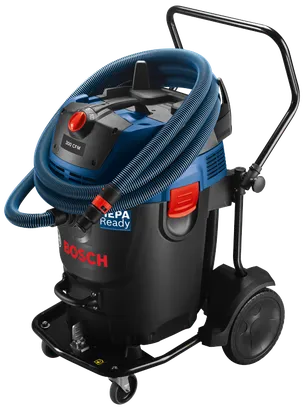

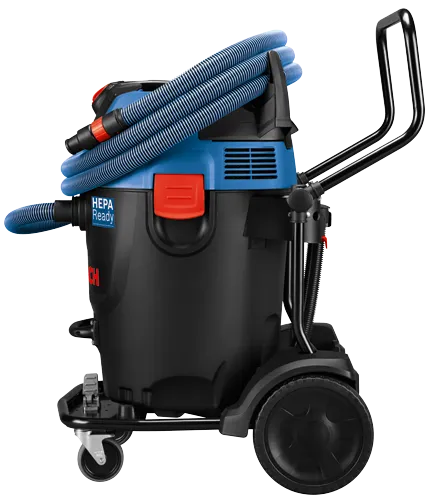

GAS20-17AH Professional
Dust Extractors

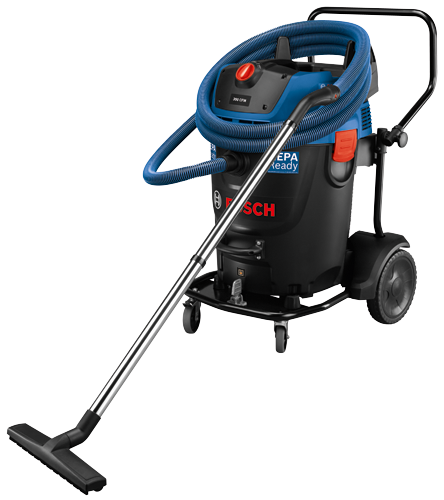

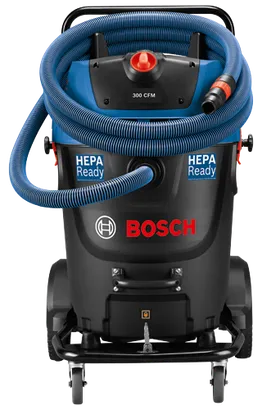

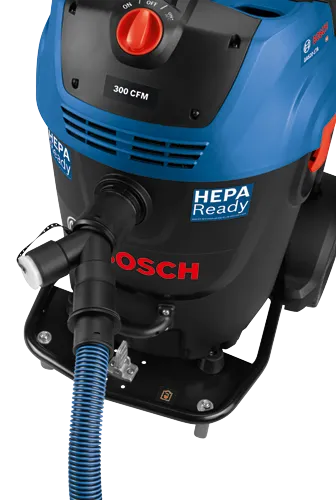

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter
- Part of Bosch PRO+GUARD™ – helps users move toward OSHA Silica dust compliance

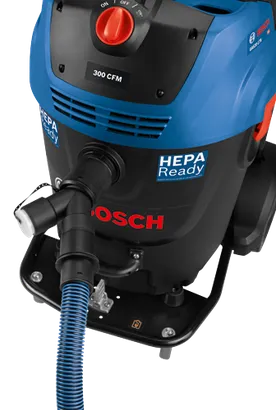

- Impressive 300-CFM air-flow capability – features high-performance CFM for maximum dust extraction in heavy-duty concrete construction applications
- Powerful 17.5 Amp motor – delivers strong extraction performance for extreme commercial applications

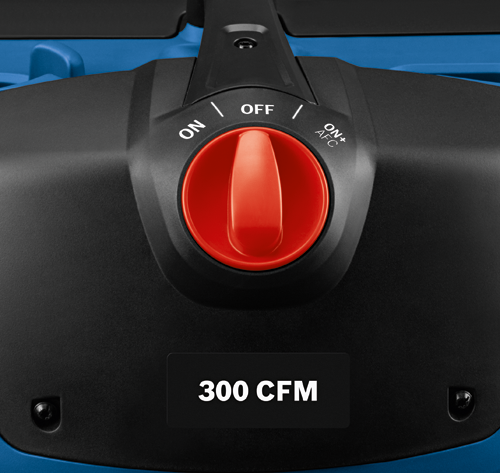

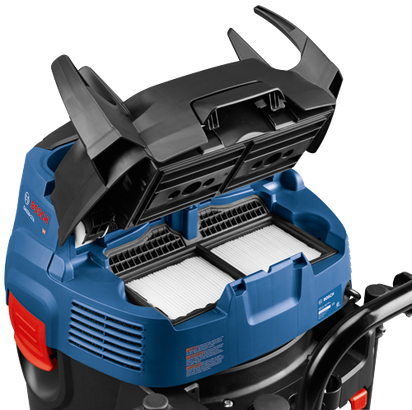

- Automatic filter cleaning – cleans filter every 15 seconds for consistent suction power
- Three-layer heavy-duty filter bag – helps protect the filter from abrasive materials and provides the optimal containment of dry dust and debris
- Wet/dry operation with water-level sensor and drain hose – Sensors automatically prevent overfilling and hose provides easy drainage

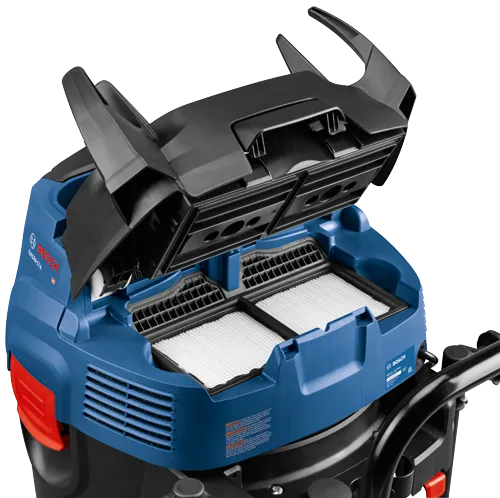

- HEPA filter – captures 99.97% of particles at 0.3 microns or larger

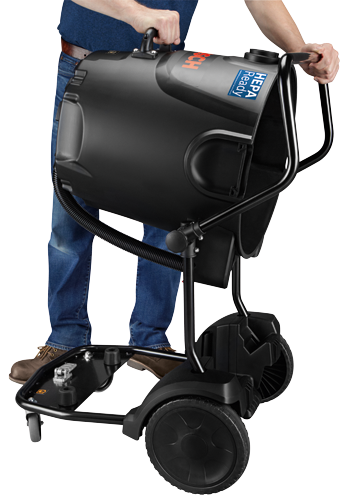

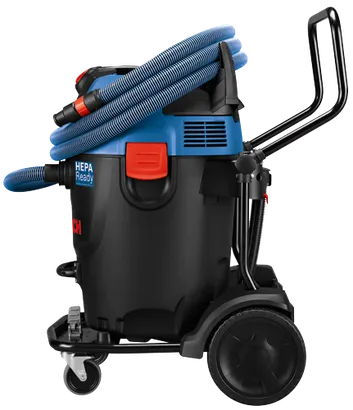

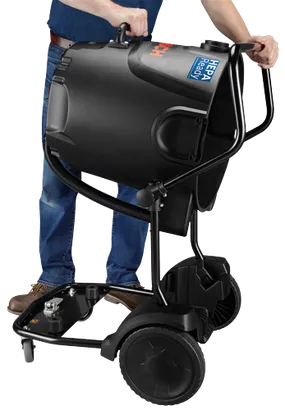

- Wheeled metal frame with dumping mechanism – offers easy transporting, stability and emptying convenience
- Metal castors – built to withstand the demands of the jobsite

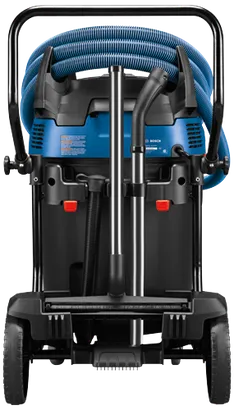

- Fold down push handle – provides jobsite mobility and convenient storage
- 16 Ft., 35mm anti-static hose – extends effective work area and helps mitigate static electricity
- 27 Ft. power cord with standard 20 Amp plug – provides wide jobsite coverage and convenience

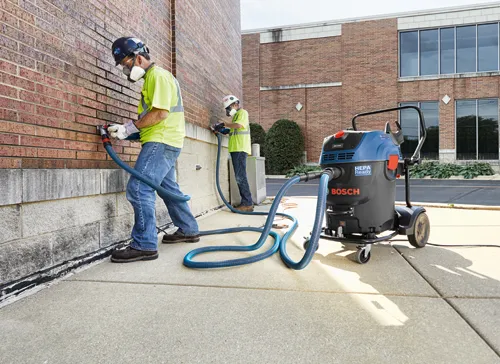

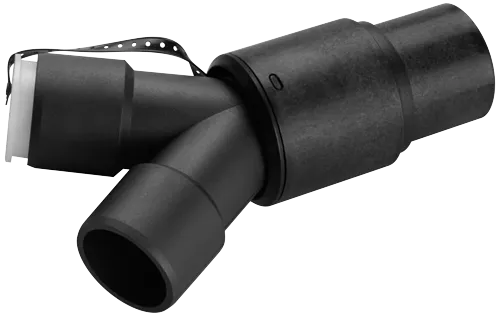

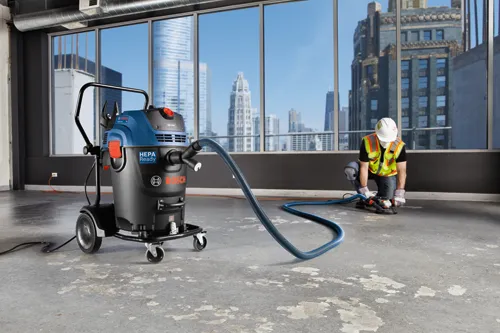

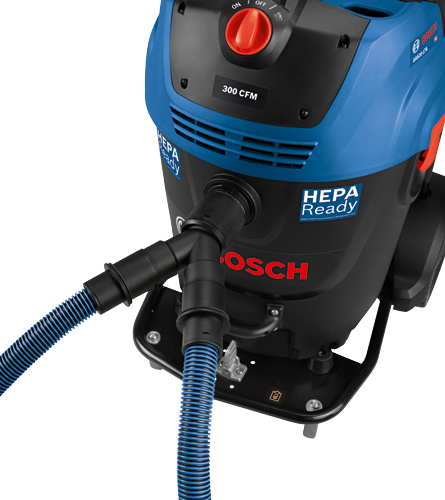

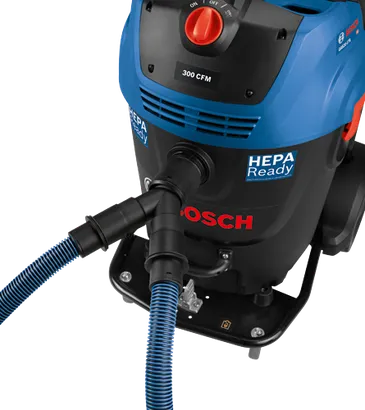

- Optional Y-Connect (sold separately) – allows used of two tools at the same time, such as small angle grinders when used in grinding or cutting concrete
Technical data
The most important data
(1) VF430H HEPA Filter
(1) VB170 Heavy-Duty Three-Layer Filter Bag
(1) VH1635A 16 Ft. Anti-Static Vacuum Hose
(1) VX100 Elbow

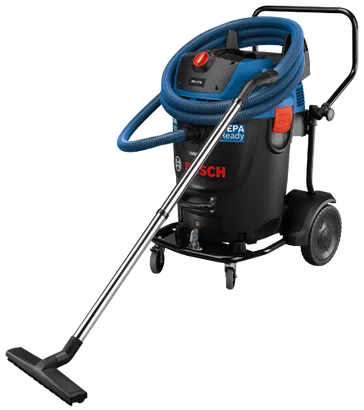

(1) VX460 Suction Tubes / Floor Set
GAS20-17AH Professional: Further information
Product Highlights

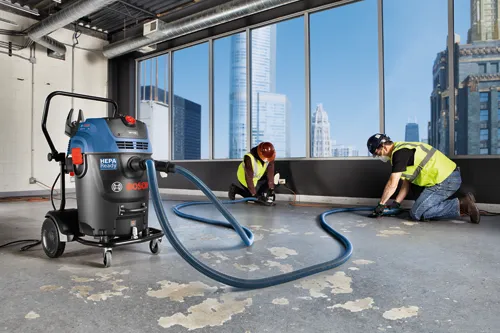

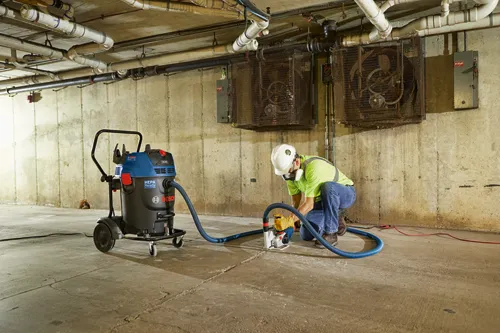

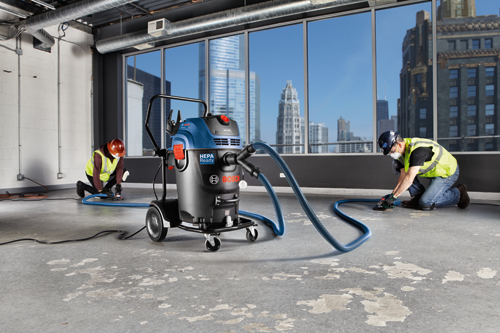

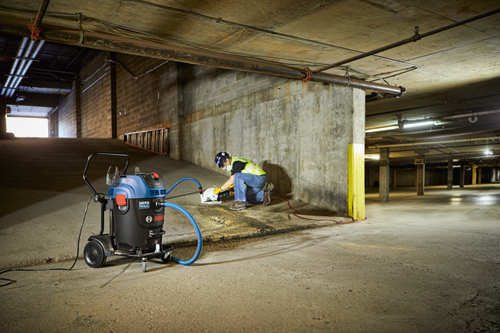

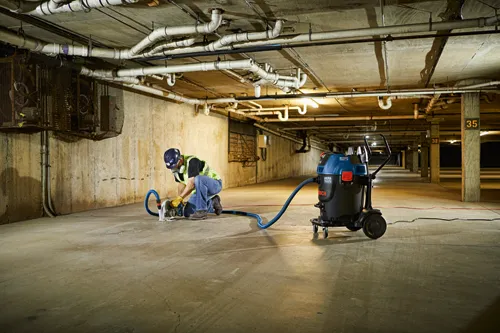

The Bosch 300-CFM Dust Extractor delivers the high-performance cubic-feet-of-air-per-minute (CFM) rate for maximum dust extraction for heavy-duty concrete construction applications such as concrete cutting and surface grinding. The dust extractor’s powerful 17.5 Amp motor delivers a maximum 300 CFM, and it is designed to help users move toward compliance with the OSHA Silica Table 1 dust compliance regulation. The automatic on-board filter-cleaning system activates every 15 seconds to help maintain maximum suction power. The included HEPA filter captures 99.97% of particles at 0.3 microns and larger. The included three-layer heavy-duty filter bag helps to protect the filter and provides the optimal containment of dry dust. It also provides wet/dry operation, with a water-level sensor and drain hose. The extractor features a wheeled metal frame with dumping mechanism, metal castors and a height-adjustable push handle. This unit includes a 16 Ft. 35mm anti-static hose and 27 Ft. power cord with standard 20 Amp plug. When used with the optional Y-Connect (sold separately), the dust extractor can be hooked up to two tools (such as small angle grinders when used in grinding or cutting concrete).
