D-TECT120 Professional
Wall/Floor Scanners
Wall/Floor Scanner with Radar
- Bosch ultra-wide band (UWB) radar technology – offers a wide range of detection performance up to 4-3/4 In. in different materials
- Calibration free – ready to use as soon as it is switched on for instant scanning with no calibration errors

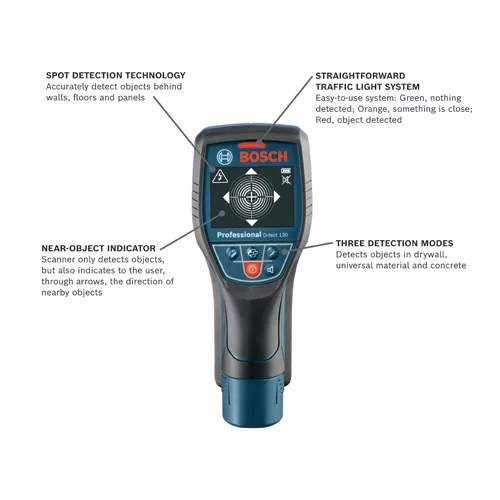

- Spot detection – instantly detects objects when placed on detection surface, no back and forth required

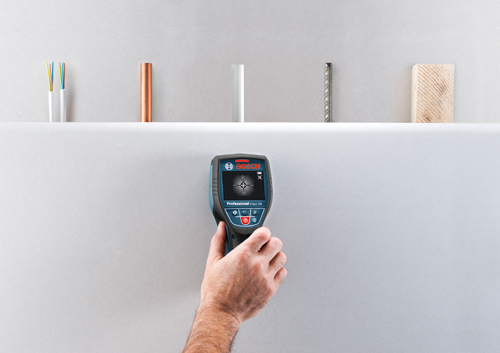

- Three modes – drywall, universal and concrete detects ferrous and non-ferrous metals, wood, live wiring and plastic pipes
- Large illuminated display – the traffic light makes detection easy to understand; objects are indicated through arrows, center cross-line and color code: green (nothing detected), orange (something detected), red (object detected)
- Ergonomic design – soft-grip areas allow the user to hold the tool in a comfortable and natural position
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
D-TECT120 Professional
Technical data
The most important data |
|
|---|---|
| Height in | 8.25 " |
| Length in | 3.25 " |
| Max Detection Depth Copper Wiring | Up to 2-3/8-in (6 cm) |
| Max Detection Depth Ferrous Metals (Steel) | Up to 4-3/4" |
| Max Detection Depth Non-Ferrous Metals (Copper) | Up to 4-3/4-in (12 cm) |
| Operating Temperature | 14° F / -10° C up to 104° F / 40° C |
| Rating | 1.5V |
| Size in | 3.25 x 8.25 x 4.25 inches |
| Weight | 1.1 lb |
| Width in | 4.25 " |
| Includes |

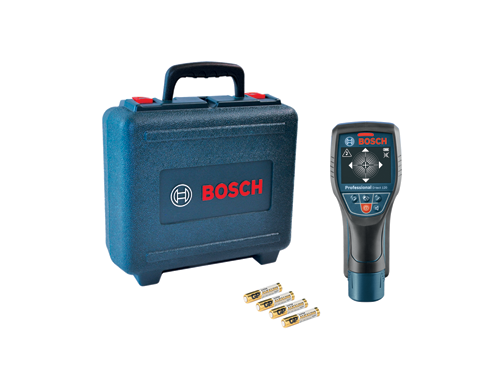

(1) D-TECT120 Wall/Floor Scanner with Radar (4) AA Batteries (1) Hard Carry Case |
D-TECT120 Professional: Further information
Product Highlights
D-TECT120 features Spot Detection technology that can detect objects instantly when placed on a wall, panel or floor. Since the Bosch D-TECT120 never needs calibration, you can focus on the job without worrying about accuracy. Three modes ‒ drywall, universal and concrete ‒ make this the right detector for multiple jobs. Universal mode sees through more material, it sees "anything in anything". This device offers sound and a light to show user when something is detected behind a wall, panel or under flooring.
