CSG15 Professional
Concrete Surfacing Grinders

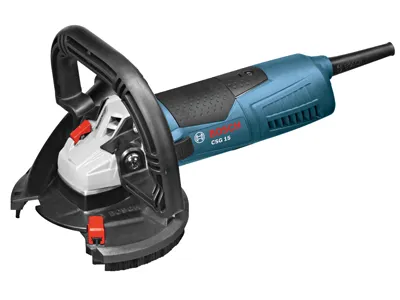

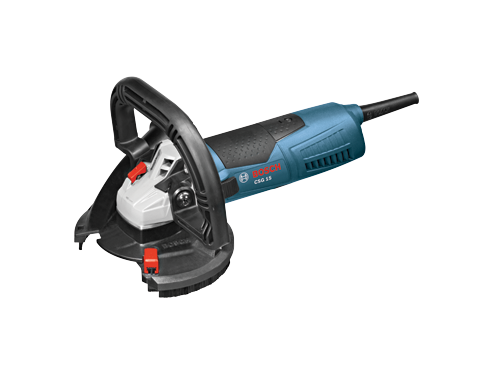

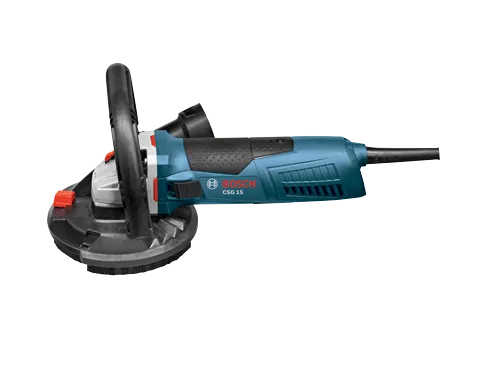

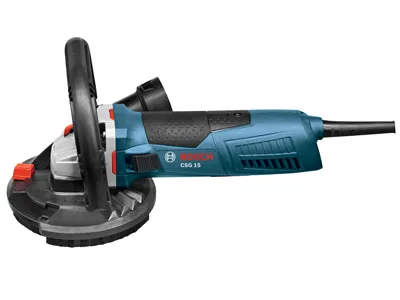

5 In. Concrete Surfacing Grinder with Dedicated Dust-Collection Shroud

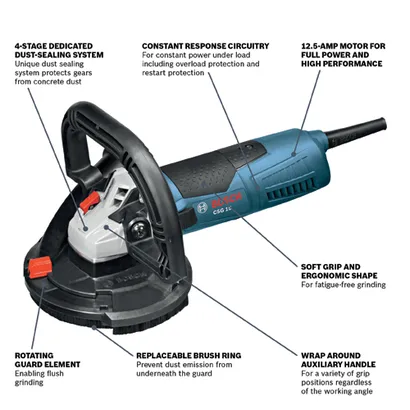

- Powerful motor – 12.5 AMPs and up to 9,300 RPM

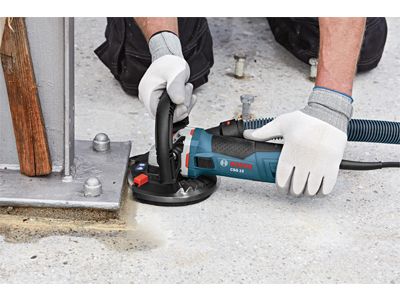

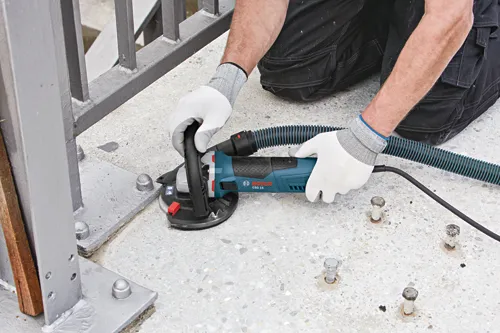

- Comprehensive guard/shroud system – with exclusive guard-opening system that allows flush grinding
- Constant Response circuitry — provides soft-start, maintains constant speed under load, provides overload protection
- Sealed switch, double-sealed ball bearings, and two lip-sealing rings – for long tool life
- Service Minderbrushes — indicates when preventative maintenance is required
- 5/8-In. to 11 spindle — wide flexibility for mounting most popular accessories
- Auxiliary handle — for easy handling
- Spindle lock — for quick wheel changes
- Lock-on/off switch — for extended use applications
Technical data
The most important data |
|
|---|---|
| Adjustable Handle Position | Yes |
| Amperage | 12.5 |
| Height in | 6 " |
| Length in | 13.75 " |
| No Load RPM | 9,300 |
| Overload Protection | Yes |
| Rating | 120V AC |
| Spindle Thread | 5/8 -11 UNC |
| Variable Speed | No |
| Voltage | 120V |
| Weight | 5.95 lb |
| Wheel Diameter in | 5" |
| Works With | Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VH1635A (by means of anti-static adapter included with those hoses), VAC005, VAC006, VAC008, and most other 35 mm hoses, Adapter for 1-1/4" and 1-1/2" Hoses, VAC002 or VAC024, Adapter for 2-1/2" Hoses, VAC020 |
| Includes |
(1) - Auxiliary Handle Flange Kit (1) - Spanner Wrench (1) - 5" Diamond Cup Wheel (1) - Surface Guard with Vacuum Connection (1) - Carrying Case |
CSG15 Professional: Further information
Product Highlights

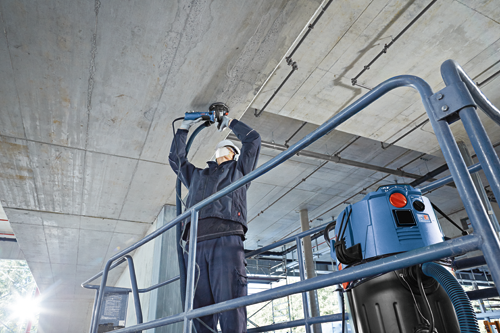

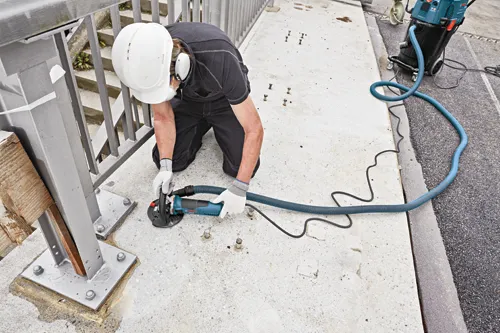

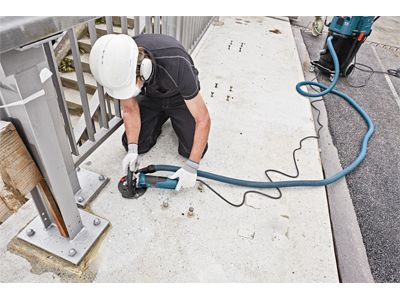

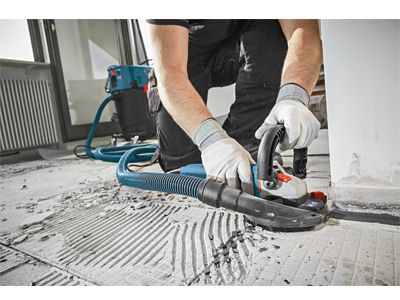

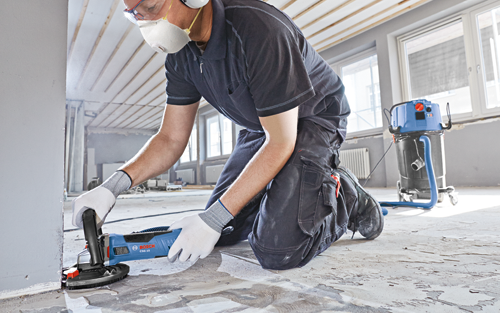

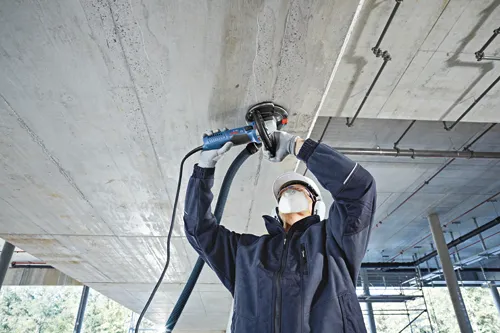

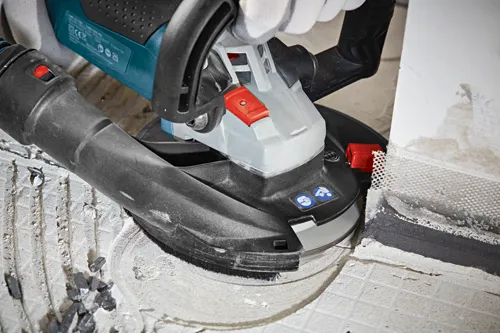

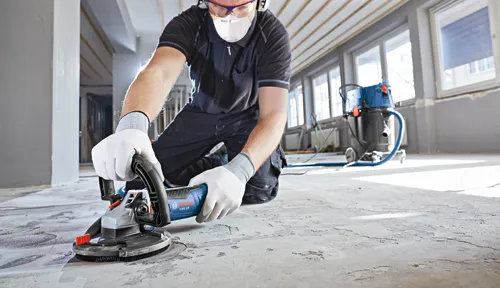

The Bosch CSG15 5- In. Concrete Surfacing Grinder has a dedicated dust-collection shroud for a cleaner work environment, as well as plenty of power. It delivers 12.5 AMPs and up to 9,300 RPM, for concrete grading, surface preparation and other tough concrete applications. Its dedicated dust guard system is a comprehensive solution for collecting dust that allows grinding flush against walls. The system helps to provide a longer operational life, including a sealed motor and a sealed switch. It also has double-sealed ball bearings and two lip-sealing rings to protect against dust contamination. With Constant Response circuitry, this grinder's motor can handle extended operational load, which allows the user to reach areas where walk-behind unit can't touch. Its spindle lock allows for quick wheel changes, it has a wrap-around auxiliary handle and it includes Service Minderbrushes.
