CM10GD Professional

Miter Saws

10 In. Dual-Bevel Glide Miter Saw

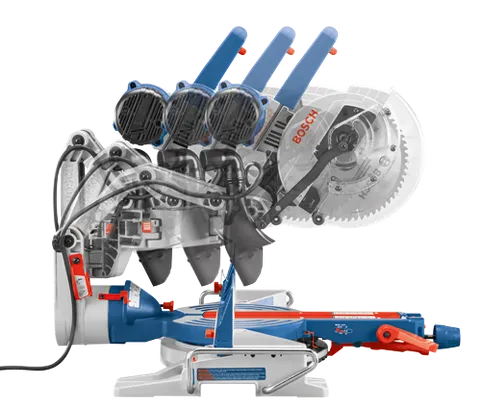

Articulated hinge arms – reduce the saw’s front-to-back footprint by up to 10 In. compared to slide saws with similar capacities
Axial-Glide System – offers more durable precision than side saw rail systems
Powerful 15 Amp motor – delivers 4,800 no-load RPM for professional cutting capacity
Wide cutting capacities – includes 12 In. horizontal cut capacity, 5-1/2 In. vertical baseboard cut capacity against the fence and a 6 In. crown cut capacity nested against the fence (45° spring)
Bevel lock lever and range selector – are located upfront for quick, easy settings without having to reach around behind saw
Tall sliding 4-1/4 In. fences – for easy bevel set ups and increased crown and base molding capacity

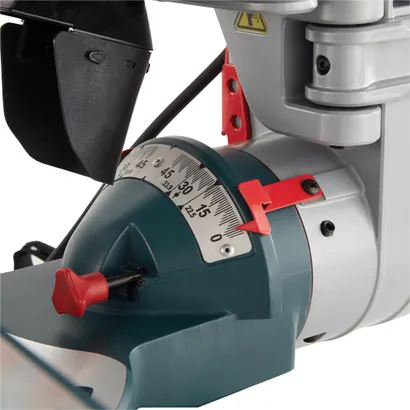

Wide 47° left/47° right bevel capacity – with detents at 0°, 33.9°, 45° left/right for easy setting of the most-common bevel angles
Adjustable miter detents – designed to be accurate and durable, and includes detents at 0°, 15°, 31.6°, 22.5°, 45°, 60°
Push-button miter detent override – provides easy-to-access thumb actuated control right up front for fine miter angle adjustment
Large easy-to-read uniform bevel and stainless steel miter scales in degrees plus roof pitch angles – for more convenient cut setup
Category-best 90% dust collection – optimized for cutting 2x material with a vacuum
Ergonomic ambidextrous trigger handle with soft grip – provides comfort for all-day use and a large form-fitting ergonomic handle

View more View less

Your Selected Variant

CM10GD Professional

Technical data

The most important data
Amperage	15
Bevel Angle Range	47° left and 47° right
Bevel Stops	0°, 33.9°, 45° and 47° (L/R)
Blade Diameter (in)	10
Blade Size	10"
Case Type	No Case Included
Category	Compound Miter Saws
Depth Front-to-Back, Not Including Arm - In.	30
Dust Collection	Yes
Electric Motor Brake	Yes
Height in	20.5 "
Height of Table from Base Feet to Table Surface - In.	4
Length in	32 "
Max. Base Molding Against Fence	3-1/4” (5-1/2" from 0° to 47° L)
Max. Crown Molding (38° Spring) Angled Against Fence	5-1/4”
Max. Crown Molding (45° Spring) Angled Against Fence	6"
Max. Cut Capacity - 0° Miter 0° Bevel	3-1/8 In. x 12 In. (Can cut 4x12 dimensional lumber when Adjustable Depth Stop is used.)
Max. Cut Capacity - 0° Miter 45° Left Bevel	1-1/2 In. x 12 In. (Can cut 2x12 dimensional lumber)
Max. Cut Capacity - 0° Miter 45° Right Bevel	1 In. x 12 In. (Can cut 1x12 dimensional lumber)
Max. Cut Capacity - 45° Miter 0° Bevel	3-1/8 In. x 8 In. (Can cut 4x8 dimensional lumber when Adjustable Depth Stop is used.)
Max. Cut Capacity - 45° Miter 45° Left Bevel	1-1/2 In. x 8 In. (Can cut 2x8 dimensional lumber)
Max. Cut Capacity - 45° Miter 45° Right Bevel	1 In. x 8 In. (Can cut 1x8 dimensional lumber)
Miter Angle Range	52° Left, 60° Right
Miter Detents	0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
Miter Positive Stops	0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
No Load RPM	4,800
Separate On/Off Speed Control	Blank
Voltage	120V
Weight	64 lb
Width in	26.5 "
Works With	Miter Saw Stands, T1B, T4B, GTA3800, Side-Support Extension Bars, MS1238, Crown Molding Stops (Pair), MS1233, Anti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses Other Vacuum Hoses VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC002 or VAC024, Adapter for 2-1/2 in. Vacuum Hoses, VAC020
Includes	(1) 10 In. 60-Tooth Carbide-Tipped Saw Blade (1) Wrench (1) Work Clamp (1) Dust Bag (1) Vacuum adapter/elbow

CM10GD Professional: Further information

Product Highlights

Bosch CM10GD 10 In. Dual-Bevel Glide miter saw delivers accuracy and cutting control at all angles, as well as durable precision throughout the life of the tool. The innovative Axial-Glide System provides wider cross-cuts, enhanced alignment and smoother glide, and the compact design takes up to 10 In. less front-to-back workspace than a slide miter saw. With a 15 Amp motor providing 4,800 no-load RPM, there is plenty of power. Adjustable miter and bevel detents enable users to make precise common miter and bevel cuts, and the override allows for easy angle adjustment. The bevel lock lever and range selector are located safely upfront so users don't have to reach around behind the saw to make a bevel adjustment.
