Grinder Attachments
7 In. Large Angle Grinder Dust Collection Attachment_19DC-7_Hero
7 In. Large Angle Grinder Dust Collection Attachment_19DC-7_Hero
19DC-7

19DC-7 Professional

Grinder Attachments

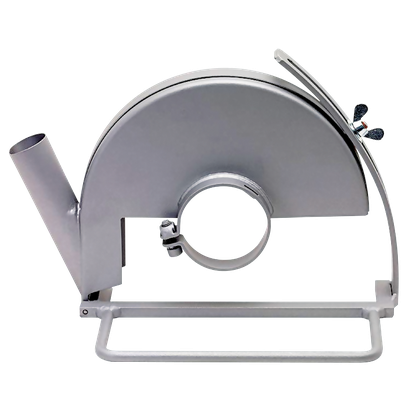

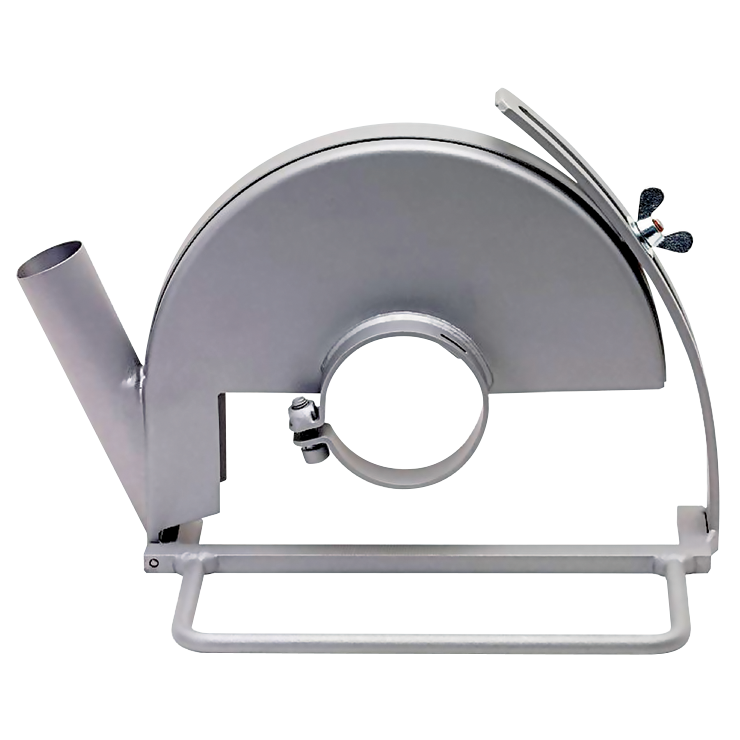

7 In. Dust-Extraction Guard

  • Concrete cutting – is part of the end-to-end Bosch PRO+GUARD Protection System
  • Dust collection – reduces cleanup time
  • Large, durable foot plate – greatly increases stability during use for clean and accurate cuts
  • Single-screw depth adjustment – quickly adjusts and maintains desired depth of cut
  • Rugged construction – stands up to jobsite conditions
View more View less
19DC-7 Professional

Technical data

The most important data
Dust Collection Yes
Height in 5 "
Material Metal
Used on Model No. Bosch 7" and 9" Angle Grinders
Weight 3.9 lb
Wheel Diameter in 7"
Width in 3 "
Works With 1700-Series 7" Grinders, 1772-6, 1974-8, 1974-8D (Must be used with Type 1 / 1A cutting wheel with maximum 7" diameter), 1800-Series 7" & 9" Grinders, 1873-6D, 1873-8, 1873-8D, 1873-8F, 1893-6, and 1893-6D (Must be used with Type 1 / 1A cutting wheel with maximum 7" diameter), 1900-Series 7" & 9" Grinders, 1974-8, 1974-8, 1994-6 and 1994-6D (Must be used with Type 1 / 1A cutting wheel with maximum 7" diameter), Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Adapter for 1-1/4" and 1-1/2" Hoses, VAC024 (VAC002 is not compatible with 19DC-7.), Adapter for 2-1/2" Hoses, VAC020
Includes (1) 19DC-7 7 In. Dust-Extraction Guard

19DC-7 Professional: Further information

Product Highlights

The Bosch 19DC-7 Dust-Extraction Guard works with the Bosch 1974-8 7 In. angle grinder and can be part of the end-to-end Bosch PRO+GUARD Protection System, along with attachments, dust extractor and respiration (to be used as a basic summary; always use products in accordance with the ownerʼs manual and OSHA Rule 1926.1153 Table 1). This can help move users toward compliancy with the OSHA silica dust regulation. The dust guard has a durable foot plate for cut stability. The single-screw depth adjustment lets users make changes quickly and easily, while maintaining the desired depth of cut.
