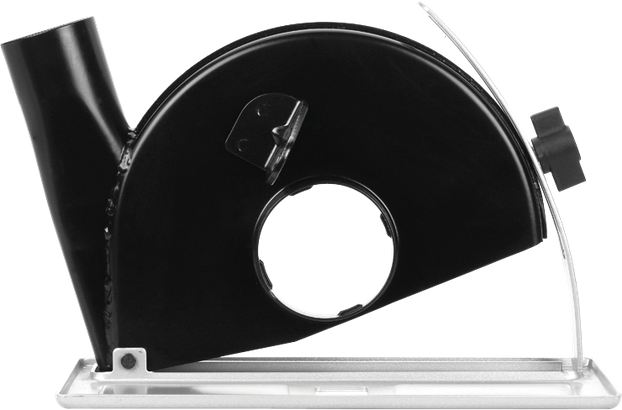

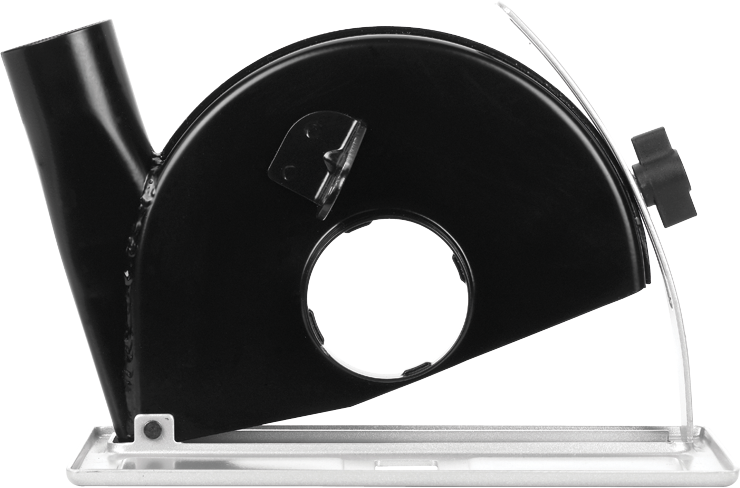

Dust-Extraction Guard for Bosch 4-1/2 In. and 5 In. Small Angle Grinders
- Flexible guard design – works with the Bosch 4-1/2 In. and 5 In. small angle grinders to for dust collection
- Concrete cutting – is part of the end-to-end Bosch PRO+GUARD™ Protection System
- Dust collection – reduces cleanup time and provides cleaner air for user
- Large, durable foot plate – greatly increases stability during use for clean and accurate cuts
- Single-screw depth adjustment – quickly adjusts and maintains desired depth of cut
- Rugged construction – stands up to jobsite conditions
- Works with 4-1/2 In. and 5 In. small angle grinders – compatible with GWS10-45/P/PD, GWS13-50/VS/VSP/P/PD, AG series and 1800 series grinders; 18 V cordless grinders: GWS18 V-45C/PC/PSC
18DC-5E Professional
Technical data
The most important data
Dust Collection
Yes
Foot Plate
Yes
Height in
4 "
Material
Metal
Tool Free
Yes
Used on Model No.
Compatible with all Bosch 1800, AG, and GWS series 4-1/2“ - 5" angle grinders (excluding 1375A, GWS8-45, GWS9-45, GWS10-45E / -45PE / -45DE and GWS18V-45 / -50 models).
Weight
1.75 lb
Wheel Diameter in
4-1/2" - 5"
Width in
2 "
Works With
1800 Series 4-1/2" & 5" Grinders, 1800, 1801, 1803EVS, 1810PS, 1810PSD, 1811PS, 1811PSD, 1821, 1821D, 1824E, 1824ED (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), AG-Series 4-1/2" & 5" Grinders, AG40-85, AG40-85P, AG40-85PD, AG40-11P, AG40-11PD, AG50-10, AG50-11VS, AG50-11VSPD (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), GWS10-45-Series 4-1/2" Grinders, GWS10-45, GWS10-45P, GWS10-45PD (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter) --- NOT COMPATIBLE with GWS10-45E, GWS10-45DE, GWS10-45PE models, GWS13-Series 5" Grinders, GWS13-50, GWS13-50P, GWS13-50PD, GWS13-50VS, GWS13-50VSP, GWS13-50VSP-DG (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), GWS18V 4-1/2" Grinders, GWS18V-45C, GWS18V-45PC, GWS18V-45PSC, GWS18V-8 (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter) --- NOT COMPATIBLE with GWS18V-45 and GWS18V-50 models, GWS18V 5"-6" Grinders, GWS18V-13C (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), GWX10 4-1/2" Grinders, GWX10-45E, GWX10-45DE, GWX10-45PE. (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), GWX13 5" Grinders, GWX13-50E, GWX18V-50VSP (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), GWX18V 5" Grinders, GWX18V-50PC (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), GWX18V 5"-6" Grinders, GWX18V-13C (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter), Other Grinders, NOT COMPATIBLE with 1375A, 1380Slim, GWS8-45 and GWS9-45, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Adapter for 1-1/4" and 1-1/2" Hoses, VAC024 (VAC002 is not compatible with 18DC-5E.), Adapter for 2-1/2" Hoses, VAC020
Includes
(1) 18DC-5E Dust-Extraction Guard
18DC-5E Professional: Further information
Product Highlights
The Bosch 18DC-5E Dust-Extraction Guard works with the Bosch 4-1/2 In. and 5 In. small angle grinders. The guard and grinder can be part of the end-to-end Bosch PRO+GUARD™ Protection System, along with attachments, dust extractor and respiration protection (to be used as a basic summary; always use products in accordance with the ownerʼs manual and OSHA Rule 1926.1153 Table 1). The dust guard has a single-screw depth adjustment to adjust it to the desired depth of cut. The guard is compatible with 4-1/2 In. and 5 In. small angle grinders: GWS10-45/P/PD, GWS18 V-45C/PC/PSC, GWS13-50/VS/VSP/P/PD, AG series and 1800 series grinders.
