Wood Drill Bits

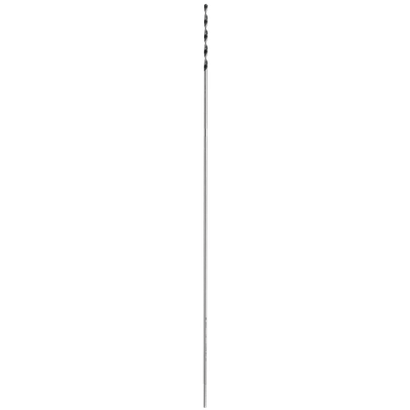

Installation Drill Bits

For rotary drills/drivers

Installation Drill Bit is very robust for formwork
Installer bits – feature hole-in-flute design to fish wire through holes
One-step operation – drill the hole, feed the wire through the bit-hole, then pull the wire through
Three-flat shank – provides better bit grip
Extra length – allows for deep drilling

View more View less

Shank diameter (d) Inch 4 options

Choose a pack size 1

Installation Drill Bits

from

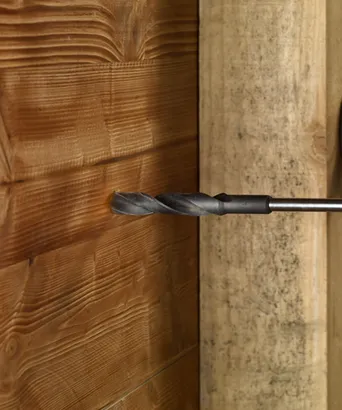

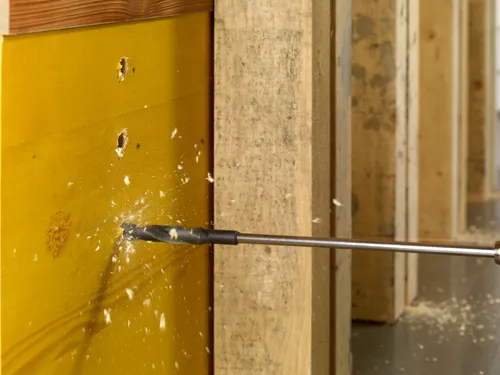

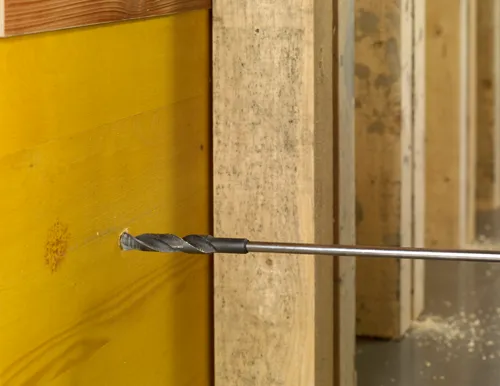

Robust for Formwork

Installation Drill Bit is very robust for formwork

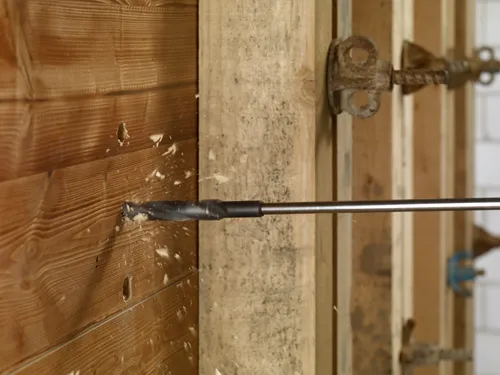

Tapered flute, offset drill bit and shank ends prevent jamming in moist wood and cut through embedded nails
Extra-long shank for versatile drilling in multilayer building materials or sandwich materials
Made of HSS manufactured to DIN 7490, drill bit tip with chisel edge (118 degrees)

Available product options: 4

Model number	Total length (L2) Inch	Shank diameter (d) Inch	Pack quantity
BH2001T	18	1/4	1
BH2002T	18	5/16	1
BH2003T	18	3/8	1
BH2005T	18	1/2	1

out of products

Model number BH2001T
Pack quantity	1

Details
Total length (L2) Inch	18
Shank diameter (d) Inch	1/4

Model number BH2002T
Pack quantity	1

Details
Total length (L2) Inch	18
Shank diameter (d) Inch	5/16

Model number BH2003T
Pack quantity	1

Details
Total length (L2) Inch	18
Shank diameter (d) Inch	3/8

Model number BH2005T
Pack quantity	1

Details
Total length (L2) Inch	18
Shank diameter (d) Inch	1/2
