WM4 Professional
Mounts
Wall Mount

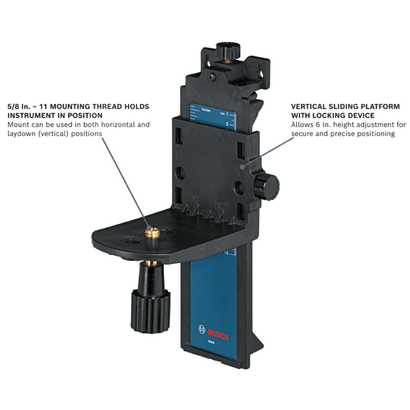

- Positions laser tool on wall - mounts securely to ceiling trim using clip and clamping screw or use keyhole slots to position on wall
- Vertical sliding platform with locking device - allows 6'' height adjustment for secure and precise positioning
- 5/8 In. -11 mounting thread holds instrument in position - mount can be used in both horizontal and laydown (vertical) positions
- Easy attachment - can be attached to most rotary lasers and line laser with 5/8 In. -11 thread
Functions & key features
WM4 Professional
Technical data
The most important data
Height Adjustment Range
6"
Length in
13.19 "
Material
Plastic and metal
Weight
5 lb
Width in
8.19 "
Works With
Combination/Point Alignment Lasers, GCL 2-160, GCL 25GPL 5, GPL 3, GPL 2, Line Lasers, GLL 55, GLL 100 G, GLL 3-50, GLL3-330CG, GLL3-330C, GLL3-300, GLL 150 ECK, Rotary Lasers, GRL4000-80CH, GRL4000-80CHV, GRL2000-40H, GRL2000-40HV, GRL1000-20HV, GRL900-20HV, GRL800-20HV, GRL 300HVG, GRL 300 HV, GRL 245 HVCK
Includes
(1) WM 4 Wall Mount
WM4 Professional: Further information
Product Highlights

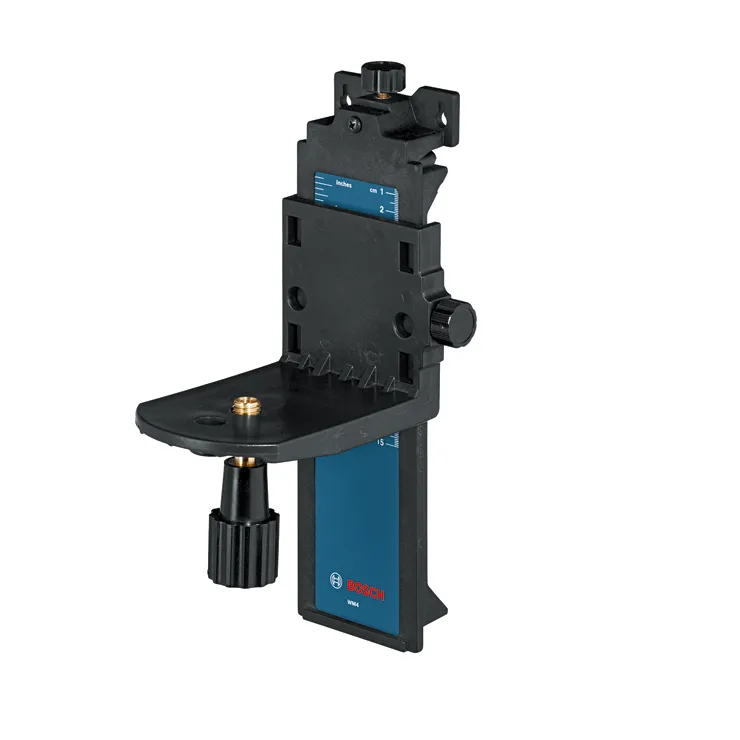

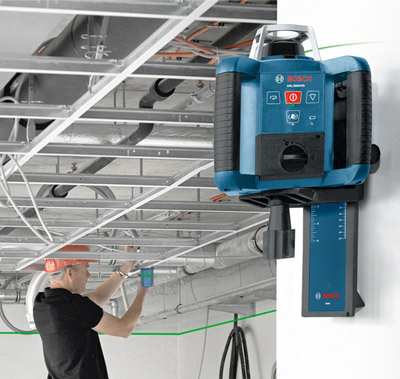

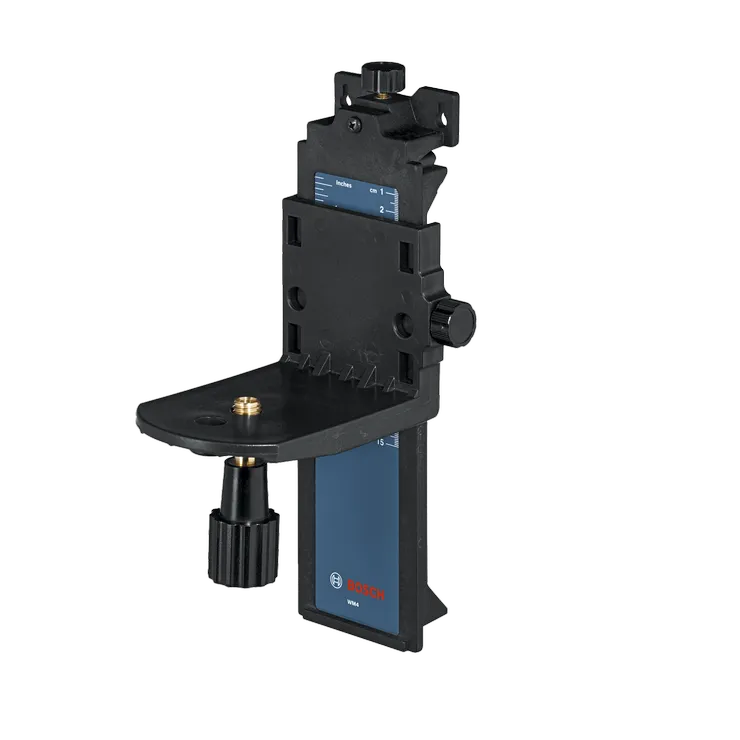

The Bosch WM4 Wall Mount provides a secure holding for mounting to ceiling trim using clip and clamping screw or use keyhole slots for different wall positions. Its vertical sliding platform allows for height adjustments up to 6 In. and locks the height into place. With its 5/8 In. -11 mounting thread it can be used with most rotary and line lasers in a horizontal or laydown positions.
