VAC140AH Professional
Dust Extractors

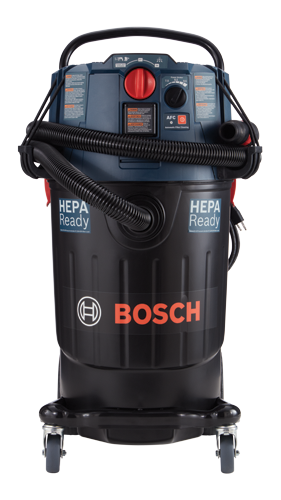

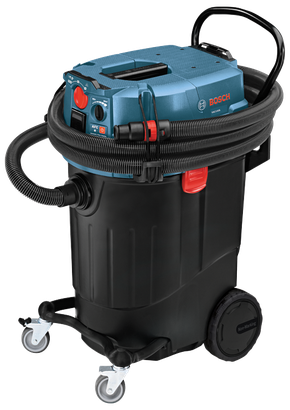

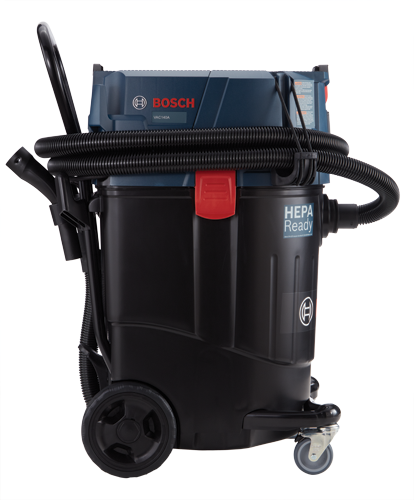

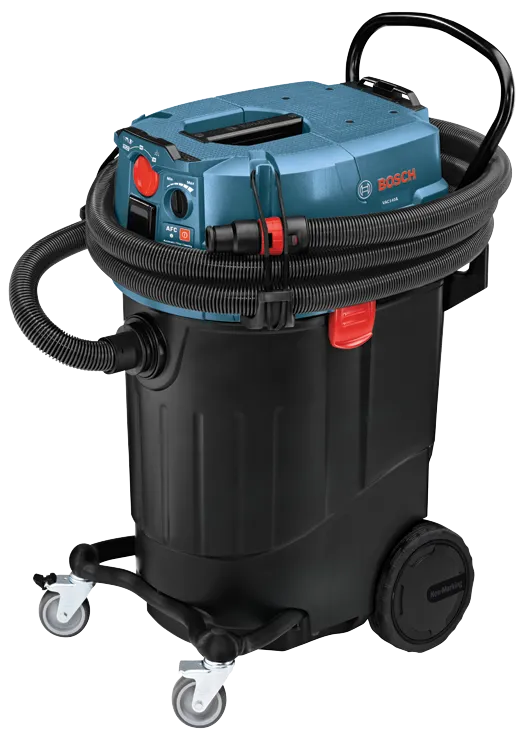

14-Gallon Dust Extractor with Auto Filter Clean and HEPA Filter

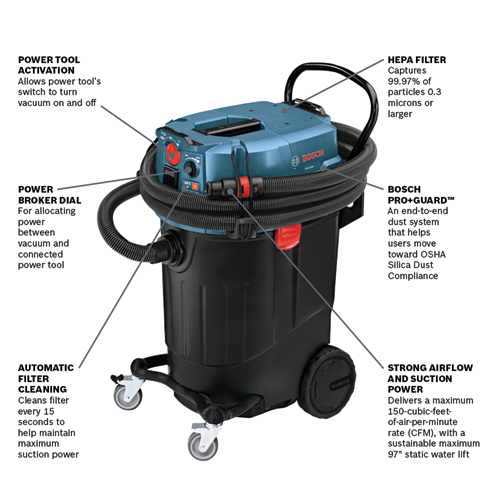

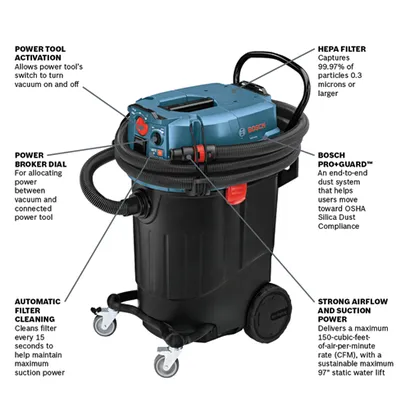

- Automatic filter cleaning – cleans filter every 15 seconds to help maintain maximum suction power
- HEPA filter – captures 99.97% of particles at 0.3 microns or larger
- Bosch PRO+GUARD™ – is an end-to-end dust system that helps users move toward OSHA Silica Table 1 dust compliance
- Strong airflow and suction power – delivers a maximum 150-cubic-feet-of-air-per-minute rate (CFM), with a sustainable maximum 97 In. static water lift

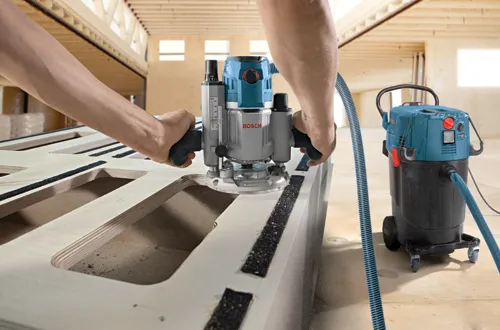

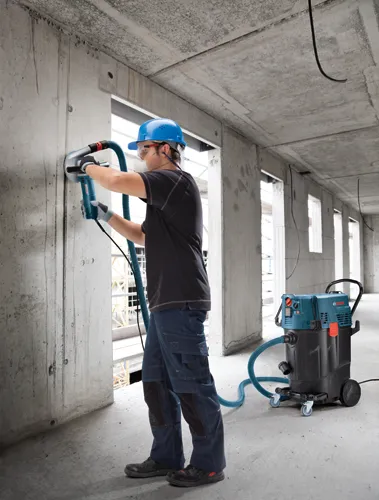

- Power tool activation – allows power tool's switch to turn vacuum on and off
- Power broker dial – for allocating power between vacuum and connected power tool

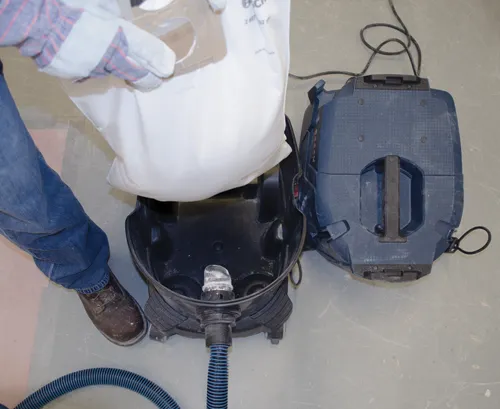

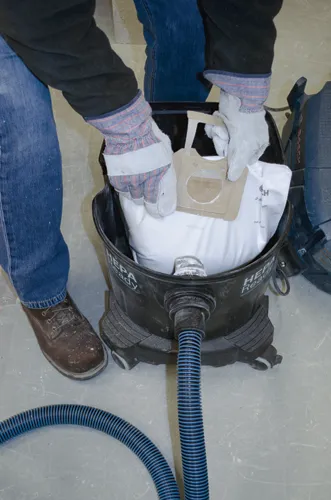

- Fleece filter bag – helps protect the filter from abrasive materials and provides the optimal containment of dry dust and debris
- Wet vacuuming water-level sensor – automatically shuts down vacuum when water reaches maximum height to protect motor
- Lightweight and portable – for easier lifting and transportation

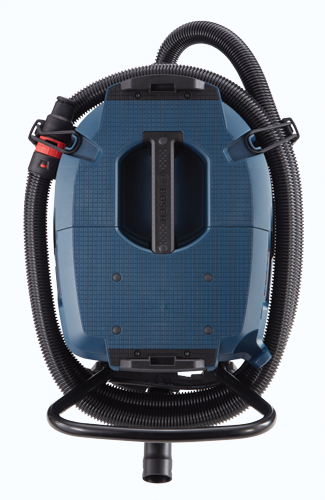

- Hose wrap – keeps vacuum hose secure and out of the way during storage or transportation
- Drain and drain hose – offers convenient draining of water waste
- Cord wrap – for convenient cord storage
- On-board storage of attachments – convenient storage for easy access to optional wands or nozzles
- Rugged construction and polypropylene tank – extended-life and rust free
- Durable wheels and two locking casters – built to withstand the demands of a jobsite
- L-Boxx integration – instantly creates a mobile workstation
Technical data
The most important data |
|
|---|---|
| Air Flow | 150 CFM |
| Air Volume (CFM) | 150 |
| Amperage | 9.5 |
| Automatic Shut-Off | Yes |
| Built-In Drain | Yes |
| Capacity (gal) | 14.5 |
| Height in | 34.1 " |
| Hose Diameter (in) | 1.37 |
| Length in | 22.25 " |
| Separate On/Off Speed Control | Yes |
| Static Water Lift | 97.3 " |
| Vacuum Suction Pressure | 242 millibars or 97.3 inches of water lift (max.) |
| Voltage | 120V |
| Weight | 38 lb |
| Wet / Dry | Yes |
| Width in | 14.75 " |
| Works With | Fleece Bags, VB140F, VB140F-30, Paper Bags, VB140, Plastic Bags, VB000P , Slurry Bags, VB090S, HEPA Filter, VF130H, Polyester Filter for Wet or Dry Dust Extraction, VF110, Paper Filter, VF100, Vacuum Hoses , VH1022, VH1035, VH1622, VH1635, VH1635A, VAC005, Extension Tubes, VX110, Extension Tube and Nozzle Set, VAC011 |
| Includes |
(1) VAC140AH 14-Gallon Dust Extractor (1) HEPA Flat Filter (1) VB140F Fleece Filter Bag (1) VH1035 9.85 ft. Vacuum Hose (1) VX100 Bend Nozzle (1) VX120 Power Tool Adapter Nozzle |
VAC140AH Professional: Further information
Product Highlights
The Bosch VAC140AH 14-Gallon Dust Extractor with Auto Filter Clean and HEPA Filter provides a complete package that is designed to help users move toward compliance with the OSHA silica dust regulation. The dust extractor delivers a maximum 150-cubic-feet-of-air-per-minute rate (CFM), with a sustainable 97 In. static water lift (maximum). The automatic on-board filter-cleaning system activates every 15 seconds to help maintain maximum suction power. The included HEPA filter captures 99.97% of particles at 0.3 microns and larger. The included fleece filter bag helps to protect the filter and provides the optimal containment of dry dust and debris. The dust extractor also has power tool activation that allows the tool to activate the vac and a Power Broker dial to match the suction force to application.
