RH432VCQ Professional
SDS-plus® Hammers

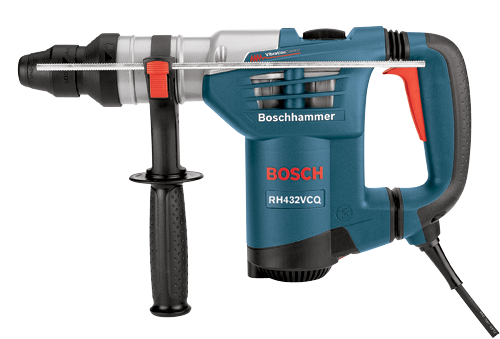

SDS-plus® 1-1/4 In. Rotary Hammer with Quick-Change Chuck System
- Powerful 8.5-amp motor – drives 3.1 Ft.-Lbs. of impact energy for professional results
- Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
- SDS-plus® shank system – for use with bits up to 1-1/4 In. diameter
- Optional three-jaw chuck shank – allows a quick change-out for using a wide variety of bits

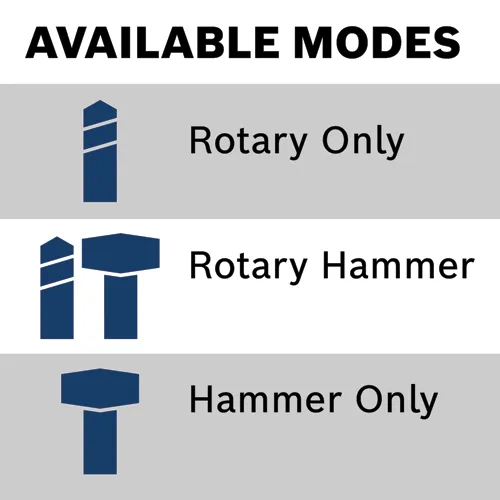

- Multifunction selector – rotary hammer, rotation-only and hammer-only mode
- Variable-speed trigger with reversing – for accurate bit starting as well as removing fasteners or bound bits
- Integral clutch – disengages torque transmission if the bit gets into a bind situation
- Bosch impact system – maximizes impact force and minimizes vibration
- 360° rotation auxiliary handle – for convenient operator control
- Light weight – hammer weighs only 10.3 Lbs.
RH432VCQ Professional
Technical data
The most important data |
|
|---|---|
| Amperage | 8.5 |
| Chuck Design | Keyless |
| Drive System | SDS-plus |
| Height in | 10.5 " |
| Impact Energy/EPTA (ft. lbs.) | 3.1 Ft./Lbs. EPTA |
| Length in | 15.75 " |
| Material | Metal, Plastic |
| Max Bit Diameter | 1-1/4" |
| Max. Hole Diameter in Concrete | 1-1/4" |
| No Load BPM | 0-3,600 |
| No Load RPM | 0-760 |
| Rating | 120V |
| Reverse | Yes |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 10.3 lb |
| Weight (lbs.) | 10.3 |
| Width in | 4 " |
| Works With | Dust Extraction/Collection Hood, HDC200 only, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW |
| Includes |
(1) RH432VCQ SDS-plus® 1-1/4 In. Rotary Hammer (1) Auxiliary Handle (1) Depth Gauge (1) SDS-plus® Quick Change Chuck (1) Carrying Case |
RH432VCQ Professional: Further information
Product Highlights

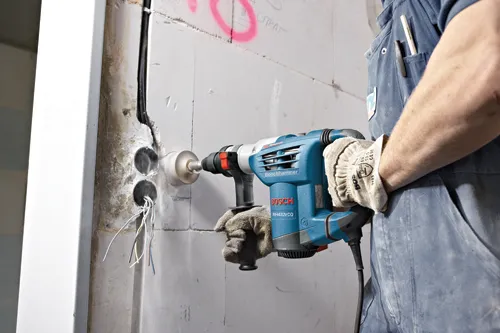

The Bosch RH432VCQ SDS-plus® 1-1/4 In. Rotary Hammer is a 8.5-amp tool that delivers 3.1 Ft.-Lbs. of impact energy, but it weighs only 10.3 Lbs. for a top performance-to-weight ratio. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. Concrete contractors will appreciate the production in drilling holes in concrete and chiseling masonry. The quick change chuck allows the fast and simple exchange of an SDS-plus® chuck. It has Vibration Control™ in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch for bind-up situations.
