RH328VCQ Professional
SDS-plus® Hammers
SDS-plus® 1-1/8 In. Rotary Hammer with Quick-Change Chuck System
- Powerful 8.0-amp motor – drives 2.4 Ft.-Lbs. of impact energy for professional results
- Vibration Control - vibration reduction in the hammer mechanism and the grip area provide maximum user comfort for extended periods of work
- SDS-plus® shank system — for use with bits up to 1-1/8 In. diameter
- Optional three-jaw chuck shank – allows a quick change-out for using a wide variety of bits

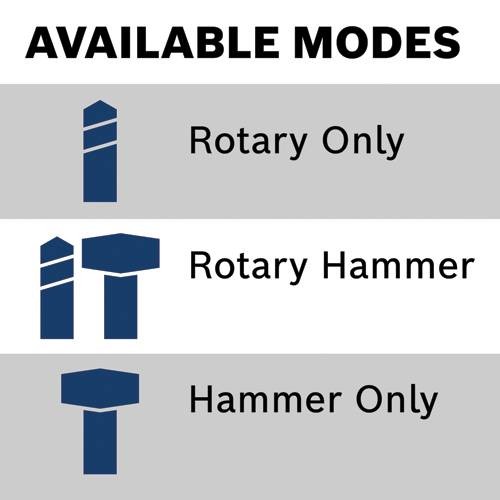

- Multi-function selector — offers three modes of operation: rotary hammer, rotation-only and hammer-only mode
- Vario-Lock positioning — rotates and locks chisel into 12 different positions
- Integral clutch — helps minimize torque reaction
- Variable-speed trigger with reversing – for accurate bit starting as well as removing fasteners or bound bits
- Bosch impact system – maximizes impact force and minimizes vibration
- 360° rotation auxiliary handle – for convenient operator control
- First-rate power-to-size ratio – hammer weighs only 7.9 Lbs.
Technical data
The most important data |
|
|---|---|
| Amperage | 8 |
| Chuck Design | Keyless |
| Chuck Size | 1-1/8 in |
| Drive System | SDS-plus |
| Height in | 9 " |
| Impact Energy/EPTA (ft. lbs.) | 2.4 Ft.-Lbs. EPTA |
| Length in | 13.6 " |
| Material | Metal, Plastic |
| Max Bit Diameter | 1-1/8" |
| Max. Hole Dia. - Core Bit | 3-1/8" |
| No Load BPM | 0-4,000 |
| No Load RPM | 0-900 |
| Rating | 120V |
| Reverse | Yes |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 7.9 lb |
| Weight (lbs.) | 7.9 |
| Width in | 3 " |
| Works With | Dust Extraction/Collection Hoods, HDC100, HDC200, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW |
| Includes |

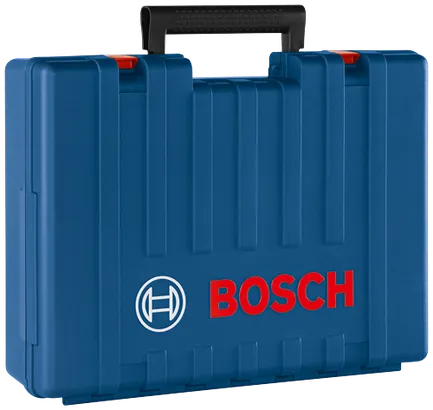

(1) RH328VCQ SDS-plus® 1-1/8 In. Rotary Hammer (1) Auxiliary Handle (1) Depth Gauge (1) SDS-plus® Quick Change Chuck (1) Carrying Case |
RH328VCQ Professional: Further information
Product Highlights
The Bosch RH328VCQ SDS-plus® 1-1/8 In. Rotary Hammer generates up to 4,000 blows per minute, making it an outstanding choice for commercial-level demolition and construction projects. It provides an 8.0-amp motor that delivers 2.4 Ft.-Lbs. of impact energy, but it weighs only 7.9 Lbs. for a striking impact-to-weight ratio. The quick change chuck allows the fast and simple exchange of an SDS-plus® chuck. It has Vario-Lock to set the chisel into one of 12 positions for better leverage and comfort. The multi-function selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. It has Vibration Control in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch for bind-up situations.
