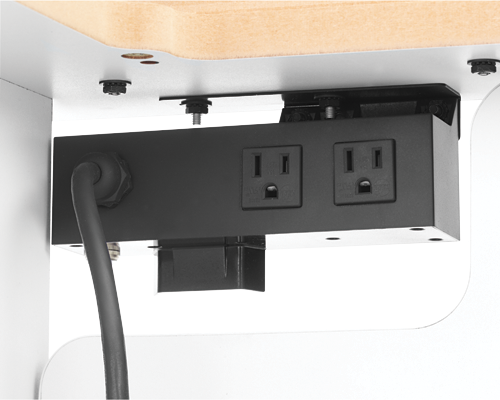

![Laminated Router Table_RA1171_outlets]( "Laminated Router Table_RA1171_outlets")
![Laminated Router Table_RA1171_switch]( "Laminated Router Table_RA1171_switch")
![Laminated Router Table_RA1171_vac port]( "Laminated Router Table_RA1171_vac port")
![router-table-bosch-RA1171-storage]( "router-table-bosch-RA1171-storage")
![router-table-bosch-RA1171-dust-port]( "router-table-bosch-RA1171-dust-port")
![router-table-bosch-RA1171-fence-height]( "router-table-bosch-RA1171-fence-height")
![router-table-bosch-RA1171-height-adjust]( "router-table-bosch-RA1171-height-adjust")
RA1171 Professional
Router Tables

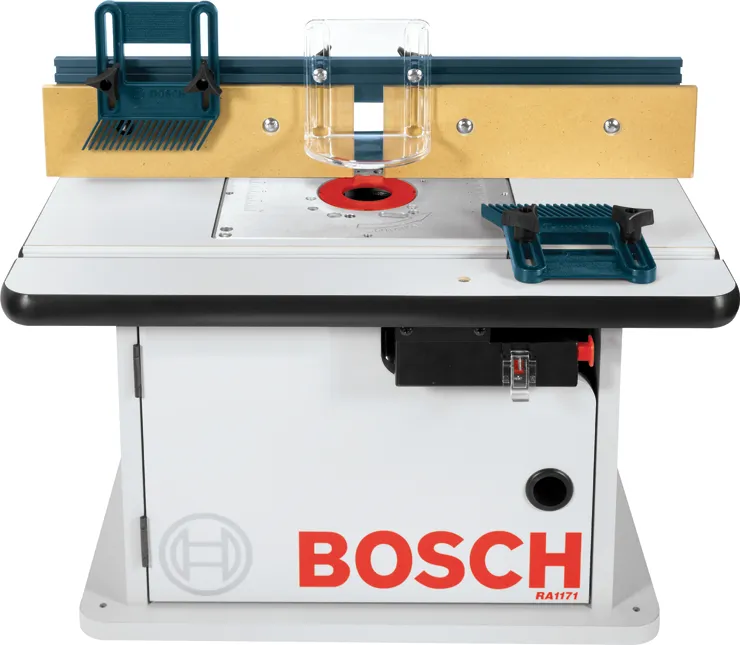

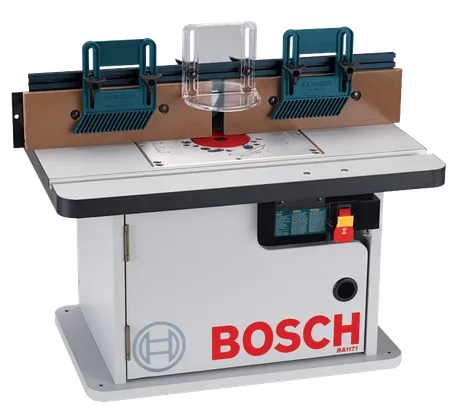

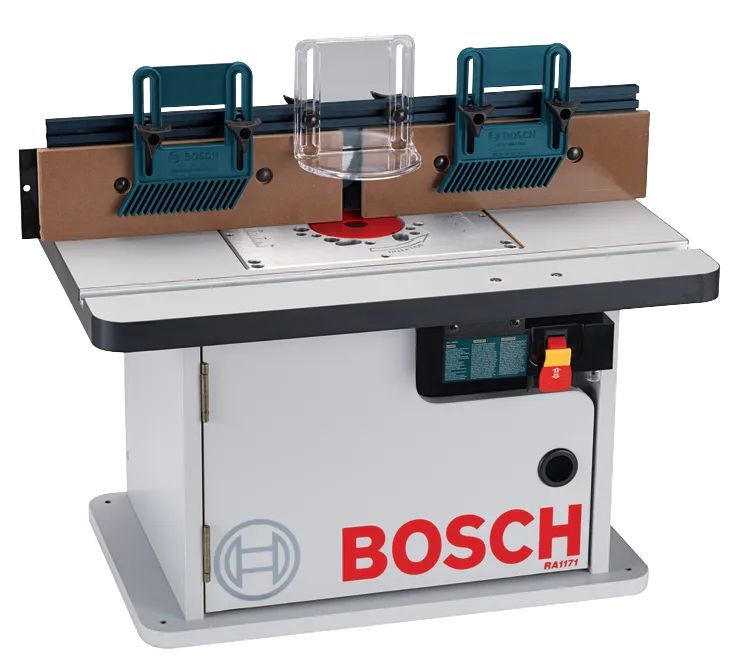

Cabinet Style Router Table

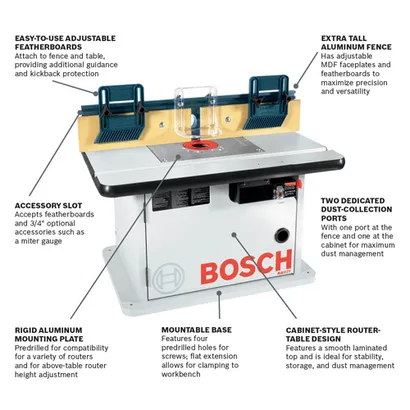

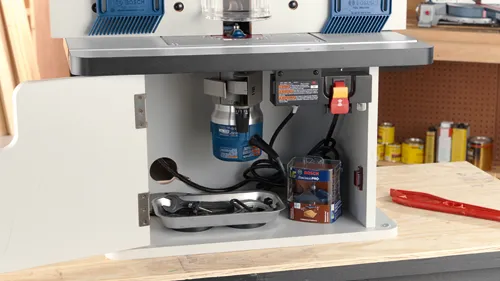

- Cabinet-style router-table design – features a smooth laminated top and is ideal for stability, storage, and dust management

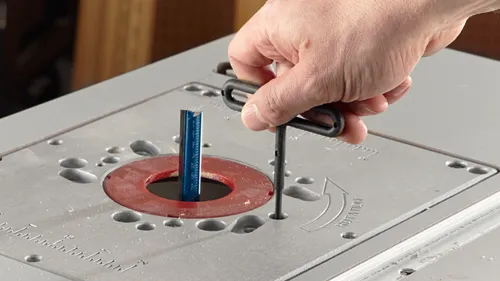

- Rigid aluminum mounting plate – predrilled for compatibility with variety of routers and for above-table router height adjustment

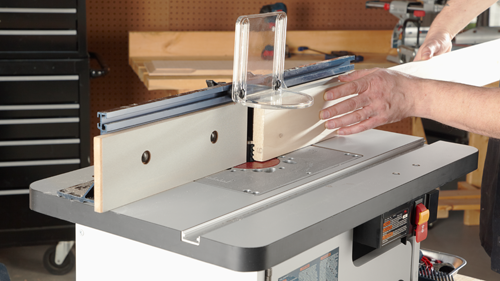

- Extra tall aluminum fence – has adjustable MDF faceplates and featherboards to maximize precision and versatility

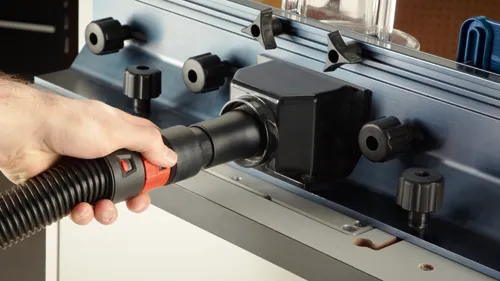

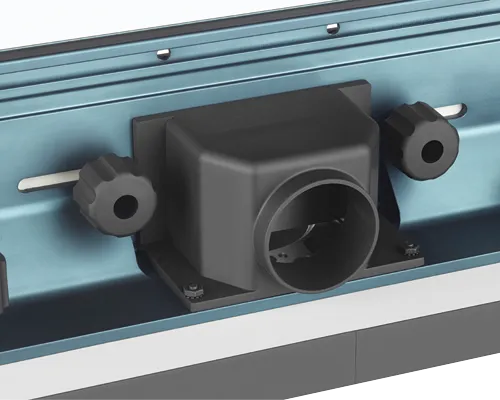

- Two dedicated dust-collection ports – with one port at the fence and one at the cabinet for maximum dust management
- Easy-to-use adjustable featherboards – attach to fence and table, providing additional guidance and kickback protection
- Accessory slot – accepts featherboards and 3/4 In. optional accessories such as a miter gauge
- Mountable base – features four predrilled holes for screws; flat extension allows for clamping to workbench
RA1171 Professional
Technical data
The most important data |
|
|---|---|
| Amperage | 15 |
| Depth | 15-7/8" |
| Dust Collection | Yes |
| Height in | 14.5 " |
| Length in | 15.875 " |
| Max. Fence Opening | 3-3/16" |
| Max. Throat Opening | 3-5/8" |
| Notes | Fixed Base Models Only |
| Weight | 35 lb |
| Width in | 25.5 " |
| Working Length in | 25-1/2" |
| Works With | Bosch, 1613-Series Plunge Routers; 1617-Series and MRF-Series Routers (in fixed base only), Craftsman®, Most Craftsman 1/2"-Collet Routers (in fixed base only), DeWalt®, DW616 and DW618 Routers (in fixed base only), Hitachi®, M12VC Routers, Makita®, RF1100 and RF1101 Routers, Milwaukee®, 5615 and 5616 Routers, Porter-Cable®, 690-Series and 892-895-Series Routers (in fixed bases only) and 7529 Plunge Router, Ryobi®, R161, R162, R163, RE170 and RE180 PL Routers, Skil®, 1810, 1815, 1820 and 1825 Routers, Template Guides, The RA1171 does not accept any template guides., Vacuum Hoses, Common 2-1/2" Vacuum Hoses attach directly to the RA1171., Vacuum Hose Adapter for 35 mm Hoses, such as Bosch 35 Hoses, Bosch VAC004 Adapter |
| Includes |
(1) RA1171 Cabinet Style Router Table (2) Adjustable Featherboards (3) Mounting Plate Insert Rings (1) Adjustable Clear Guard (1) Starter Pin (1) Starter Pin Guard (2) Outfeed Fence Shims Hardware for Mounting Routers |
RA1171 Professional: Further information
Product Highlights
The Bosch RA1171 Router Table features a cabinet-style design with a smooth laminated work surface for precision woodworking, making it an ideal benchtop solution for any workshop. The cabinet-style construction is ideal for stability, storage and dust collection. Its rigid aluminum router mounting plate is pre-drilled for compatibility with a variety of routers and for above table height adjustment with many common routers. The tall fence handles taller stock, and adjustable MDF faceplates and featherboards maximize precision and versatility. It also features a dust-collection port at the fence and one at the cabinet, for maximum dust management.
