Router Attachments, Palm Routers

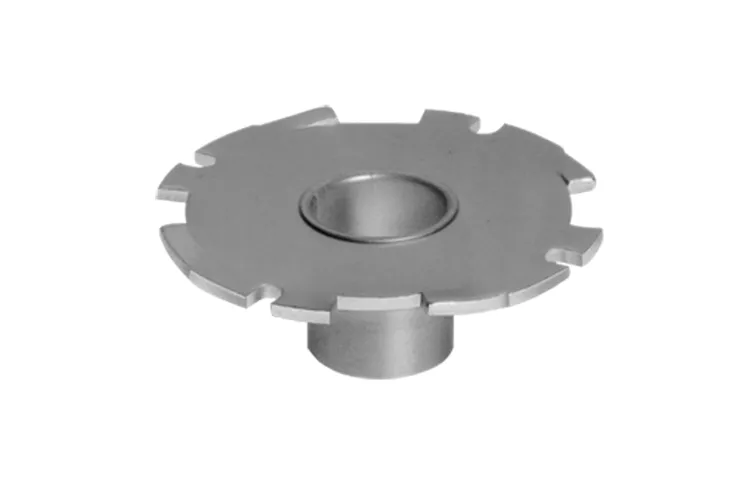

RA1105 Professional

Router Attachments, Palm Routers

7/16 In. Outer-Diameter Quick-Change Template Guide for Large Dovetail Joints

  • Template guide design – specifically sized for creating large dovetail joints
  • Quick-change template guide system – allows for fast installation and removal
  • Works with the RA1126 Quick-Change Template Guide Adapter – compatible with most Bosch routers
  • Specific measurements – 7/16 In. outer width/diameter of bushing; 3/8 In. inner width/diameter of bushing; 9/64 In. approximate protrusion of bushing below router’s subbase
  • Compatibility – the RA1126 Quick-Change Template Guide Adapter – which is available in the RA1129
  • Template Guide Adapter Set (sold separately) – also works with PR011 and PR111 plunge bases for Bosch PR20EVS and GKF125CE palm routers and 1613EVS and 1614EVS routers and their built-in quick-change template guide adapter
  • Template Guide Adapter Set (sold separately) – works with the Bosch 1617-, 1618- and 1619-series routers; and MRF23EVS, MRP23EVS and MRC23EVSK routers
View more View less
RA1105 Professional

Technical data

The most important data

Material
Metal
Size in
7/16" OD (Outside Diameter), 3/8" ID (Inside Diameter), 9/64" (approximate) protrusion beyond bottom of router subbase
Used on Model No.
Bosch 1613, 1613EVS, 1614, 1614EVS, RA1126 Adapter (used with 1617-, 1618-, 1619-, and MR23RA-series Routers), PR011 Plunge Base for Palm Routers, and PR009 Round Subbase for PR011 Fixed Base for Palm Routers
Works With
RA1126 Quick-Change Template Guide Adapter (Available in the RA1128 and RA1129 Template Guide Adapter Sets - each sold separately), The RA1126 Adapter works with the Bosch 1617-, 1618- and 1619-Series Routers; MRF23EVS, MRP23EVS and MRC23EVSK routers; and PR011 and PR111 Plunge Bases for Bosch PR20EVS and GKF125CE Palm Routers, 1613, 1613EVS,1614 and 1614EVS Routers, These routers have a built-in quick-change template guide adapter
Includes
(1) RA1105 7/16 In. Template Guide

RA1105 Professional: Further information

Product Highlights

The Bosch RA1105 template guide features a bushing with a 7/16 In. outer diameter, specifically sized for creating large dovetail joints. The Bosch RA-Series quick-change template guide system allows for fast installation and removal. This guide works with the RA1126 Quick-Change Template Guide Adapter (compatible with most Bosch routers), which is available in the optional RA1129 Template Guide Adapter Set (sold separately). The RA1105 template guide and the RA1126 Quick-Change Template Guide Adapter are both included in the eight-piece RA1128 Template Guide Set.
