PR20EVSPK Professional
Palm Routers
1 HP Colt™ Variable Speed Electronic Palm Router Combination Kit
- 1.0 (Max) horsepower output for a wide array of routing applications
- Variable-speed dial — for matching speed to workpiece and task
- Soft Start — reduces start-up torque
- Constant Response circuitry — monitors and maintains speed under load for consistent performance
- Angled cord exit — helps keep cord out of the way
- Rugged aluminum fixed base with micro and macro precise depth adjustment

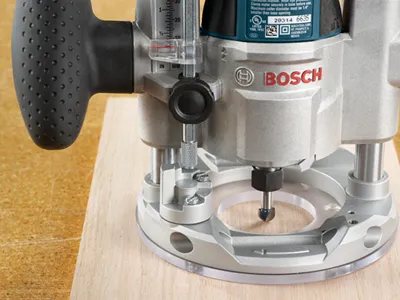

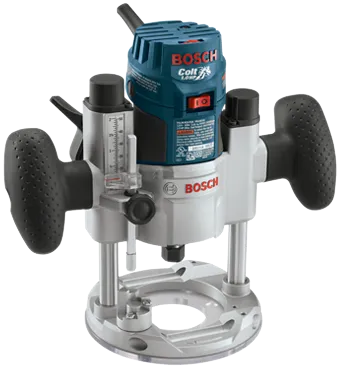

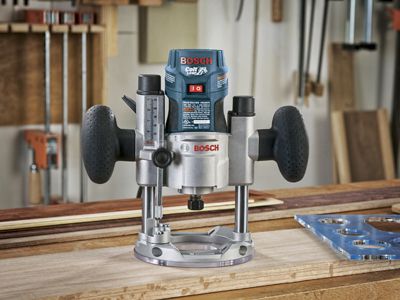

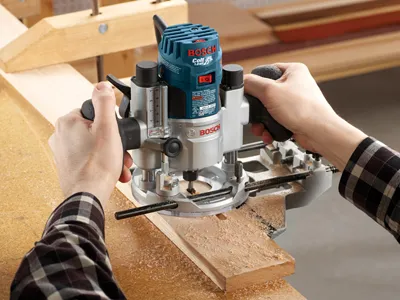

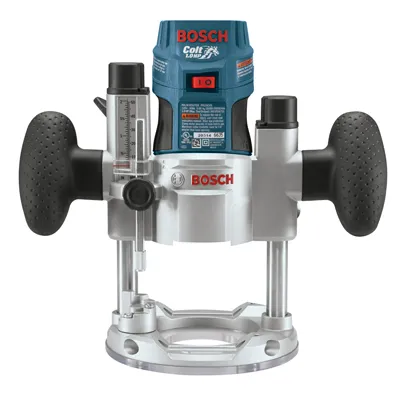

- Rugged plunge base with smooth plunge action, plunge lock release lever, and depth rod with microfine adjustment
- Tool-free conversion — quick clamp system allows motor to be easily adjusted or moved from base to base
- Fast and precise depth adjustment systems

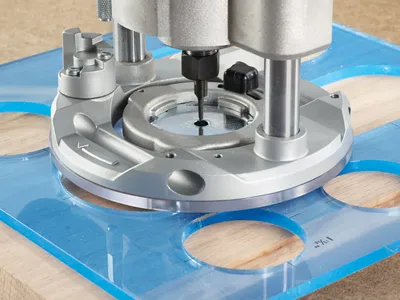

- Precision centering design — makes it easy to keep bit on intended cut line when using jigs, templets, dovetail fixtures and similar guidance devices
- Straight edge guide — PR002 guides router – in fixed base – along edges of workpiece or up to 3-5/8 In. from edge
- Comfortable contoured grip areas – the most comfortable router system in its class
- Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench
Technical data
The most important data |
|
|---|---|
| Amperage | 5.6 |
| Base Diameter | 5-3/4" |
| Case Type | Hard plastic |
| Collet Capacity | 1/4" |
| Dust Collection | No |
| Fixed-Base Depth Range | 1-3/16" |
| Height in | 7.5 " |
| Length in | 3.5 " |
| No Load RPM | 16,000-35,000 |
| Plunge Depth | 2-1/4" |
| Rating | 120V |
| Subbase Length | 3-1/2" |
| Subbase Opening | 1-9/16" |
| Subbase Width | 3-3/4" |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 3.3 lb |
| Width in | 3.75 " |
| Includes |

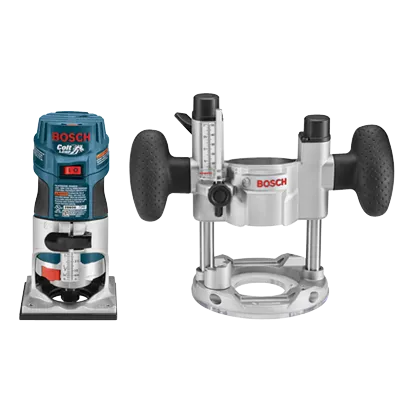

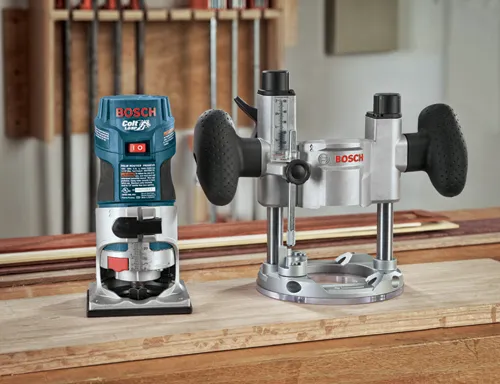

(1) - PR20EVS Motor (1) - PR001 Fixed Base (1) - PR002 Straight Edge Guide (1) - PR011 Plunge Base (1) - Bit-Changes Wrenches (1) - ¼” Self-Releasing Collet |
PR20EVSPK Professional: Further information
Product Highlights

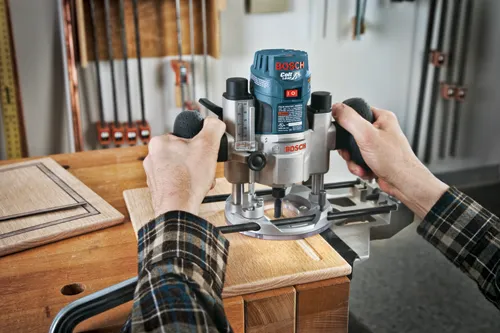

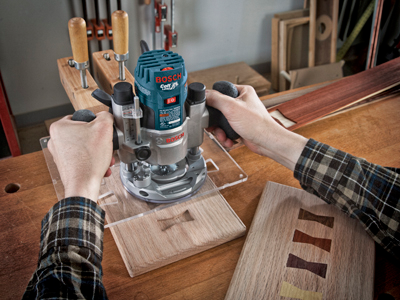

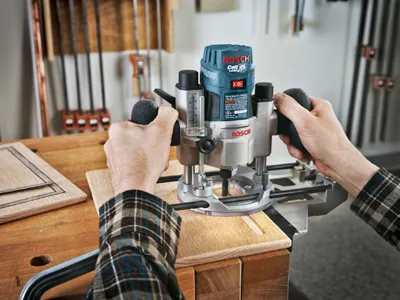

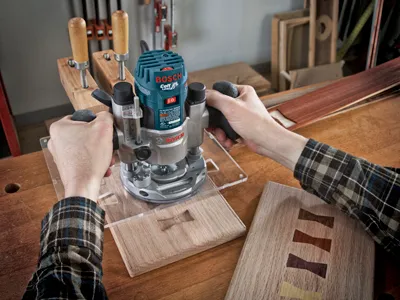

The Bosch PR20EVS Colt™ variable-speed palm-grip router puts routing power and precision in the palm of your hand. The PR20EVS has an ergonomic palm-grip design with softgrip to make it very comfortable to hold, yet it also has ample power, making it typically easier to use than larger routers. It's more than a just a laminate trimmer, as it is the ideal tool for putting roundovers on deck railings, mortising for hinges, slot cutting, and much more. The motor features soft-start, a variable-speed control, and Constant Response™ circuitry to maintain speed under load. The PR001 fixed base features macro- and micro-fine depth adjustment. The PR20EVSPK also includes the PR011 plunge base, which greatly expands the router's versatility. It features a smooth plunge action and spring-lock plunge control lever. It's depth adjustment system includes a seven-step adjustable depth stop turret plus a micro-fine adjustment on the depth rod for fast, accurate bit depth setting. The Precision Centering Design on the plunge base allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cutline when using jigs, templets, dovetail fixtures and similar guidance devices. The PR011 plunge accepts several different Bosch routing attachments, including the RA1126 Tool-free Templet Guide Adapter, RA1054 Deluxe Router Guide, and PR012 Dust Hood. Finally, the PR20EVSPK also includes a self-releasing 1/4 In. collet chuck, comfortable forged bit-changing wrenches, edge guide for use with the fixed base and a case.
